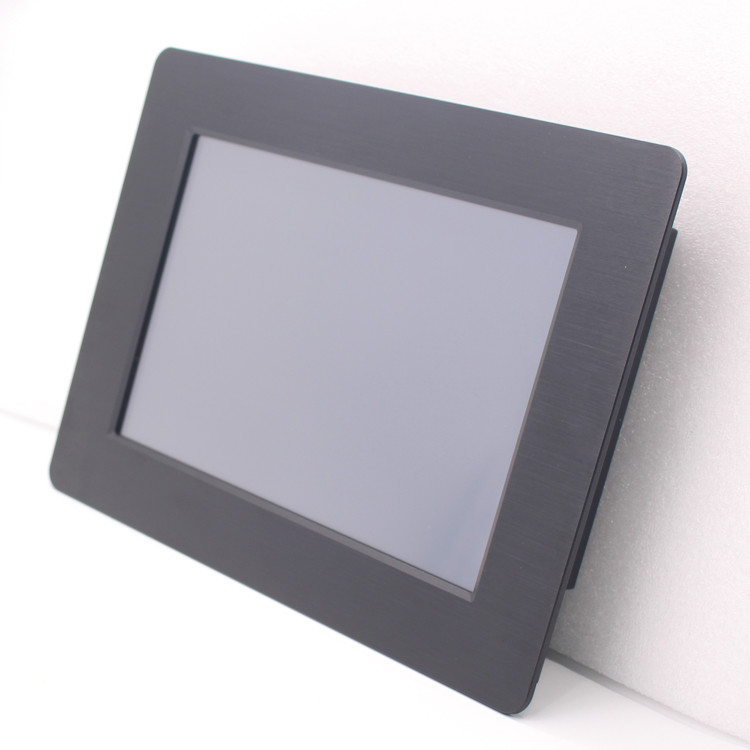

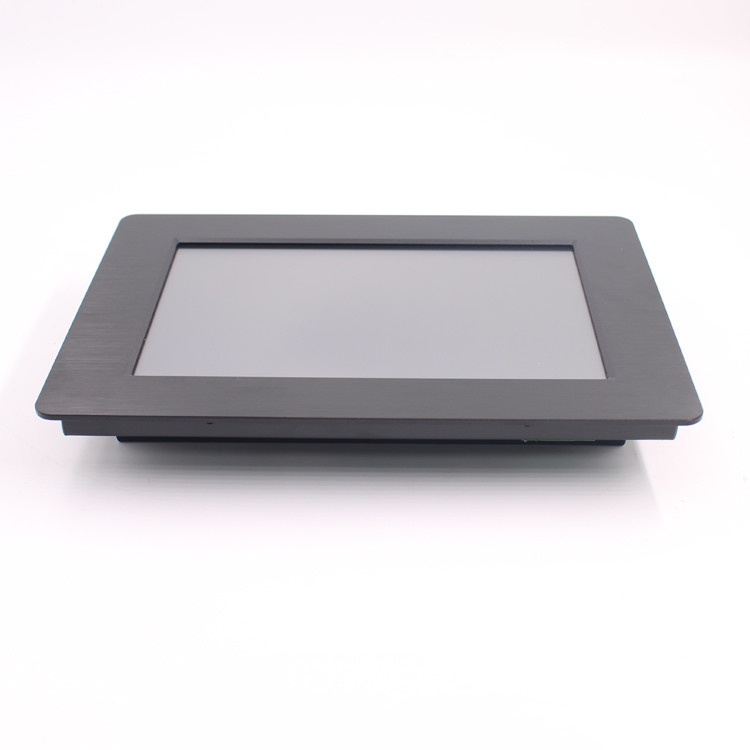

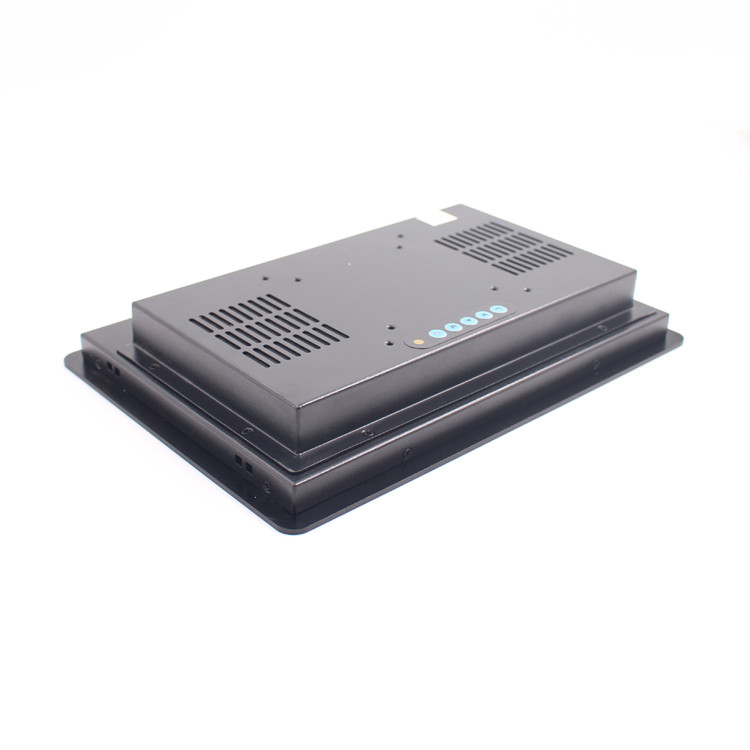

10 Inch Phoenix Terminal 9-36V DC Front IP65 Waterproof Lcd Monitor DVi HDMI Input
Features
- Panel Mount LCD 10.1″ Industrial Grade
- Touch Screen Standard (Capacitive or Resistive or Tempered glass)
- NEMA 4/IP65 Environmentally Sealed for Front Panel Only
- 350 Nits of Brightness
- VGA,DVI-I, HDMI inputs
- CE, FCC. RoHS Compliance
Full Sepcification
| LCD Panel Characteristics | Screen Size | 10.1’’ LED Panel | ||
| Touchscreen Type | Resistive touch screen | |||
| Resolution | 1280(H)x800(V) | |||
| Aspect Ratio | 16:9 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 500:1 | |||
| View Angle | 85x85(H),85x85(V) | |||
| Response Time | 15 msec | |||
|
|
USB | Yes | ||
| HDMI | yes | |||
| VGA | yes | |||
| DVI | Yes | |||
| Function | 8-36V wide voltage | |||
| Front IP65 | ||||
| Mounting type | VESA hole 75*75/100*100mm / Embedded | |||
| Optional | Body sensor | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Aluminum (stainless steel/metal for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||
10.1'' Resistive Touch Screen monitor Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
