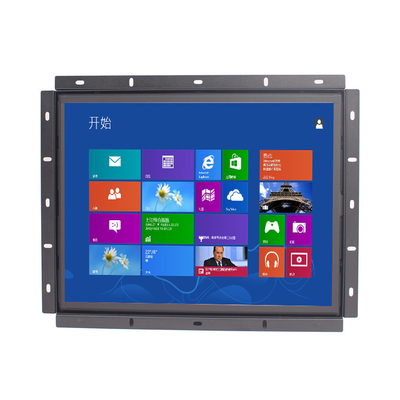

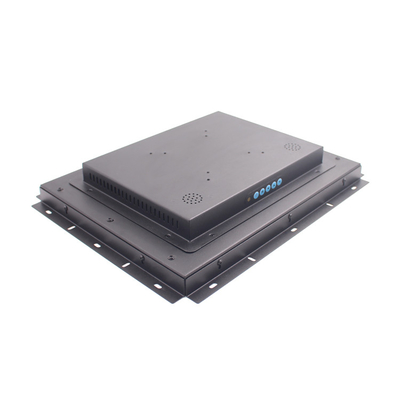

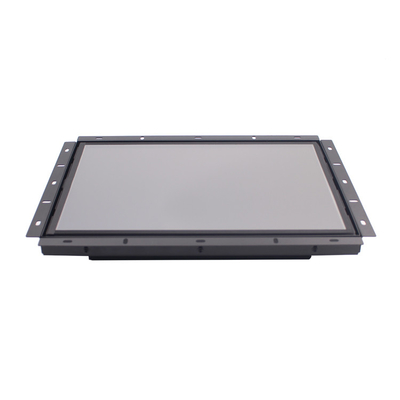

17inch Open Frame Touch Monitor HDMI 8-36V Wide Range Voltage

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: CE,RoHS, FCC
Model Number: IND170M
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 4.3kgs/pc, packing size:50×14×44cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: Open Frame Lcd Monitor Touch Screen: Resistive Touch Screen
Port: DVI, VGA, USB Warranty: 12months
Aspect Ratio: 4:3 View Angle: 80x80(H), 70x70(V)
High Light:

17inch Open Frame Touch Monitor


36V Open Frame Touch Monitor


HDMI Open Frame LCD Monitor

Product Description

Open Frame Mount Metal Case 17inch Touch Monitor DVI HDMI
Features of open frame touch monitor

1. 17'' 1280*1024 resolution industrial lcd panel
2.  Rich interface--VGA, HDMI, DVI
3. Solid metal enclosure

Configurations of open frame touch monitor

LCD Panel Characteristics Screen Size 17-inch LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1280(H)x1024(V)
Aspect Ratio 4:3
Brightness 250cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec

I/O Interface

USB 1x USB for touch use
HDMI yes
VGA yes
Function fanless
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operating Temperature 0~60° C/-20-70C(optional)

Application of open frame touch monitor

  • In the industrial site can be mount to the machine, used as automation system control
  • Banks, shopping malls, hotels, railway stations, buses, subway stations, parks and other public places as media (advertising) players or query terminals
  • Used in telecommunications, electric power, multimedia, national defense, automation equipment, manufacturing and other fields

1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
