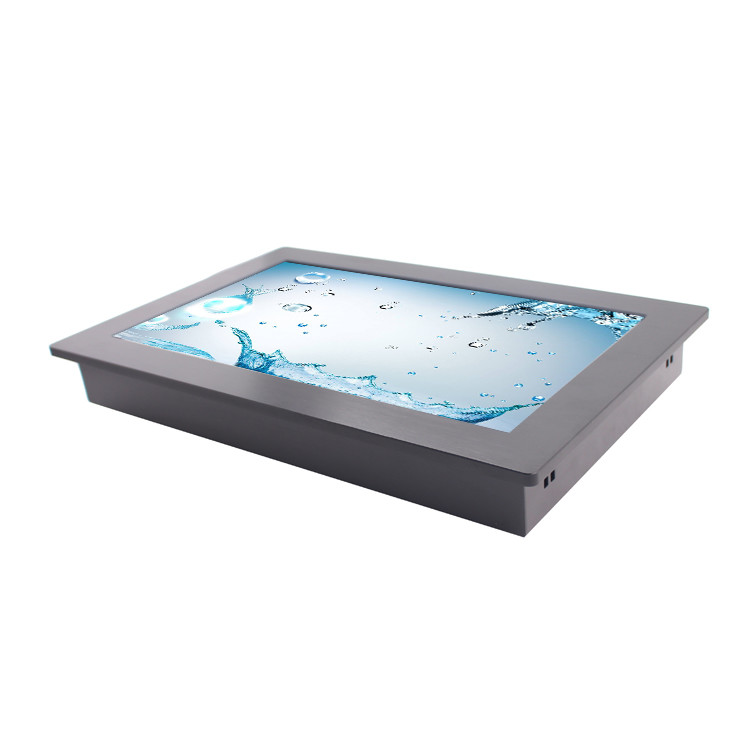

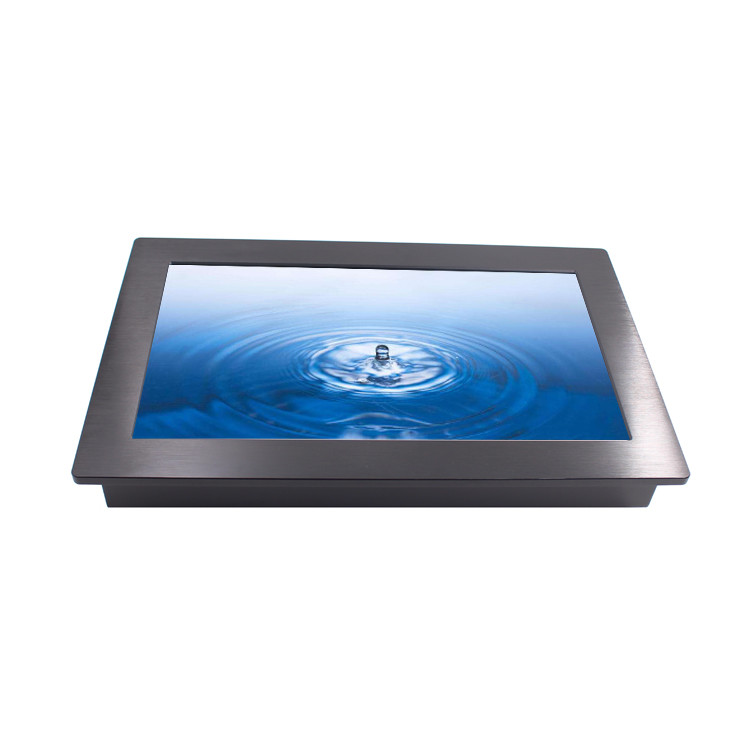

Full IP65 PCAP Embedded Touch Pc RJ45 RS232 Waterproof 10 points Capacitive
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND156PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 7kgs/pc, packing size: 48×14×39cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
|
Detail Information |
|||
| Type: | Waterproof Computer | Size: | 15.6inch Wide Screen Lcd Panel |
|---|---|---|---|
| Touch: | Capacitive Touchscreen | Com Port: | RS232 / RS422 / RS485 Choice |
| High Light: | PCAP Embedded Touch Pc,RS232 Embedded Touch Pc RoHS,12V DC Embedded Touch Pc |
||
Product Description
Embedded Full IP65 PCAP Touch Pc RJ45 RS232 Waterproof Intel J4105 Computer
Features of waterproof computer
1. Sensistive 10points Capacitive Touch screen
Resistive touch / SAW touch and IR touch can be choose.
2. Rich ports

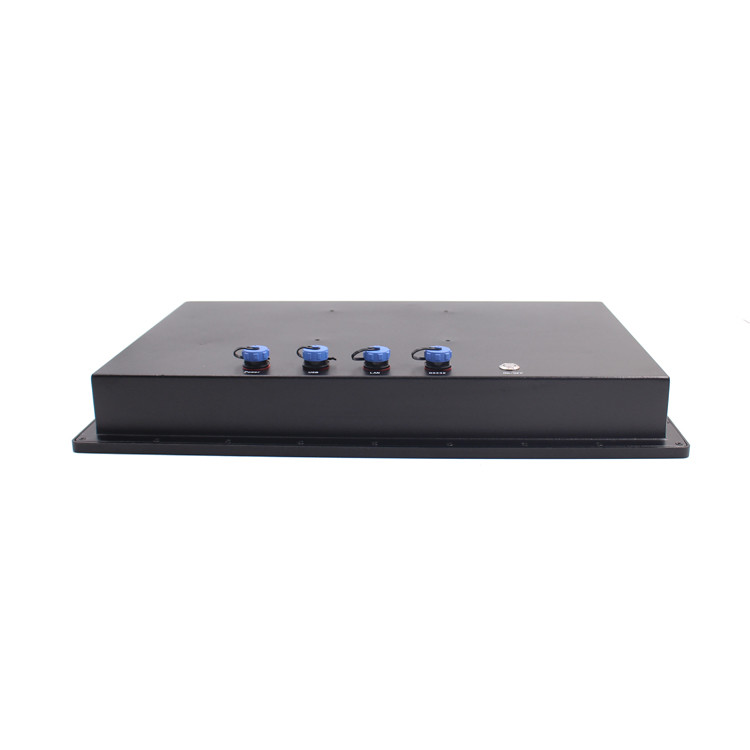

USB, RJ45, COM
all connectors are with fully sealed cap to prevent water
3. CE, ROHS and IP65 certificates
Configuration of waterproof computer
| Processor System | CPU | Intel Quad Core J4105/1.5 GHz | I/O Port | COM | 1 x RS232(Up to 4COM) | ||||||
| Memory | 2GB (up to 8G) | USB | 2 x USB2.0(up to 4USB) | ||||||||
| Storage | 32G SSD(up to 1TB) | LAN | 1/2 x RJ45, 10/100/1000 Mbps | ||||||||
| Operation System | WIndows 7/8/10 OS(trial version) | Function | IP65 waterproof | ||||||||
| LCD Panel Characteristics | Screen Size | 15.6’ LED Panel,16:9 (7-22'' option) | Waterproof WIFI antenna(optional) | ||||||||
| Touchscreen Type | Capacitive touch screen/Resistive | Optional | 8-36V wide voltage | ||||||||
| Resolution | 1920(H)x 1080(V) | PoE | |||||||||
| Brightness | 300cd/m2 | WIFI / Bluetooth is built-in | |||||||||
| Other Information | Power supply | 110V-220V, 12V DC Input | Camera / RFID / NFC / Scanner built-in | ||||||||
| Working Temperature | 0-50℃ | Enclosure | Metal/Aluminum/Stainless Steel (optional) | ||||||||
| Mounting | 75*75/100*100mm VESA | Cooling system | Fanless | ||||||||
Accessories of waterproof computer
1. USB cable.COM cable,LAN cables all are with waterproof cap
2. 12V Power adapter with waterproof cap
Customization service of waterproof computer
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 7'' 10.4" 12'' 15" 17" 19" 21'' LCD panel
3) IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB
Application of waterproof computer
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
With own designer and electric engineers, customation products is okay for us.
Should you have any needs, please feel free to tell us.
