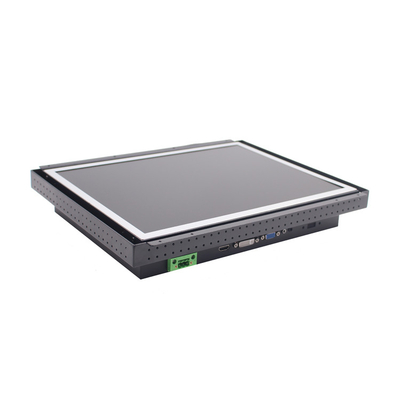

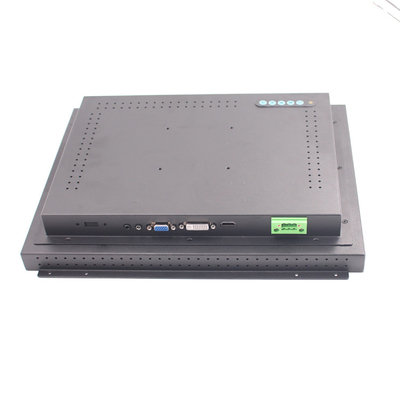

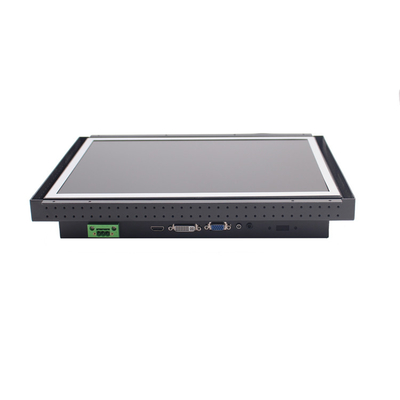

15 Open Frame Monitor DVI / HDMI / VGA Port Computer Display For Vending machine
Features of open frame monitor
--- 15inch new-brand industrial grade lcd panel
--- metal enclosure with open frame design
---- Non-touch glass (if you need touch, we can add it)
Configurations of open frame monitor
LCD Panel Characteristics | Screen Size | 15-inch LCD Panel | ||
Touchscreen Type | Without touch glass | |||
Resolution | 1024(H)x 768(V) | |||
Aspect Ratio | 4:3 | |||
Brightness | 350cd/m2 | |||
Contrast Ratio | 800:1 | |||
View Angle | 80x80(H),70x70(V) | |||
Response Time | 15 msec | |||
|
USB | ------ | ||
HDMI | yes | |||
VGA | yes | |||
DVI | Yes | |||
Function | 9-36V wide voltage | |||
Mounting type | VESA 75/100mm | |||
Optional | full wateproof | High brightness | ||
Bracket Mount | ||||
Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
Accessories | 1x8A Power Adapter with cable | |||
Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
Color | Black/Silver/White | |||
VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
Operating Temperature | 0~60° C/-20-70C(optional) |
Customization of open frame monitor
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness
Application of open frame monitor
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Package of open frame monitor
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
Waterproof Monitor which have excellent work performane.It offers rich of interface to meet csutomers needs.
Fully sealed IP65/67/68 waterproof which is widly used for kitchen,food industry, boat...etc
