| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODAPC |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND121M |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 6kgs/pc, packing size: 41.5×15×35.5cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
| Type: | Lcd Monitors | Touch Screen: | Capacitive Touch |
|---|---|---|---|
| Signal Port: | VGA, HDMI | Waterproof: | Front IP65 |
| Brightness: | 1000cd/m2 | Response Time: | 15 Msec |
| High Light: | 1000cd/m2 Rugged Lcd Monitors,IP65 Rugged Lcd Monitors,PCAP Industrial Panel Mount Monitor |
||

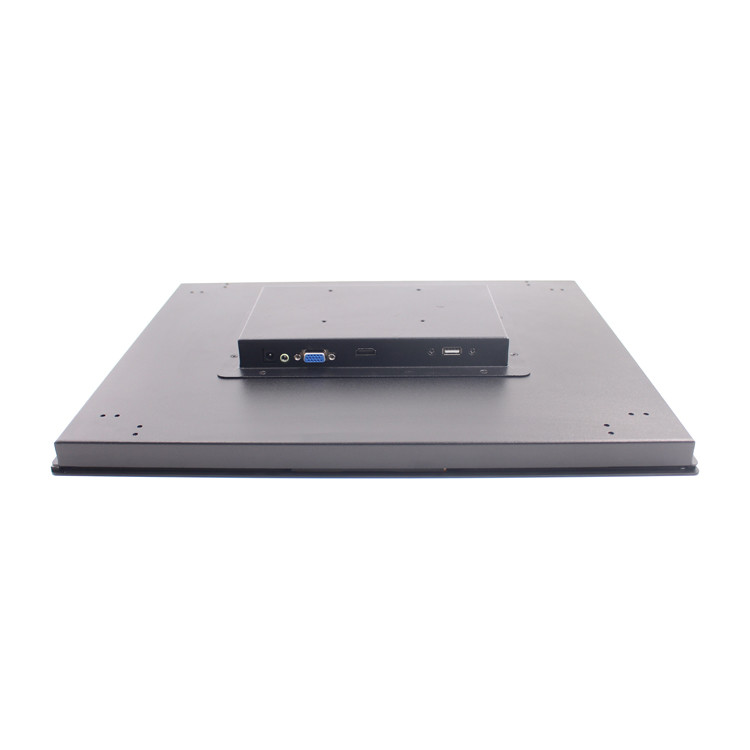

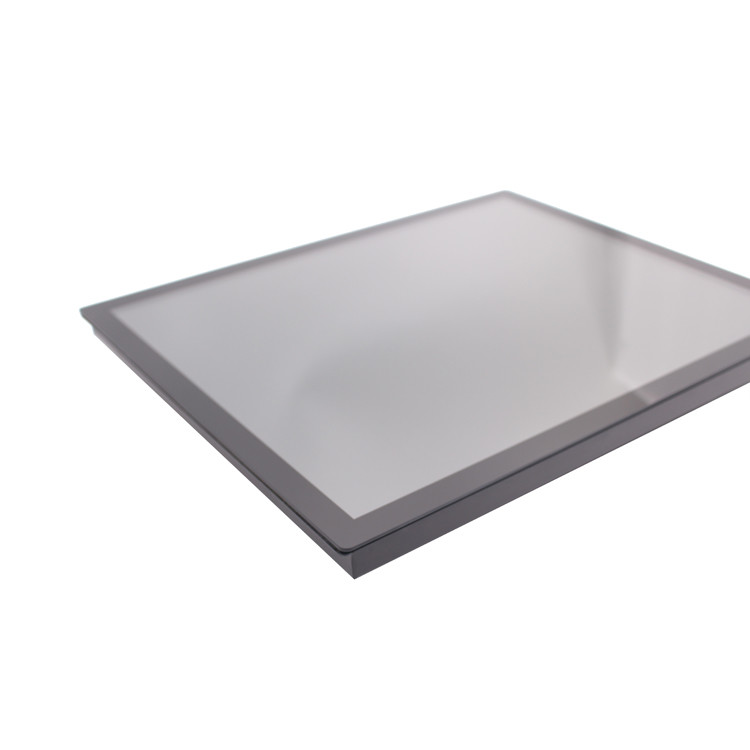

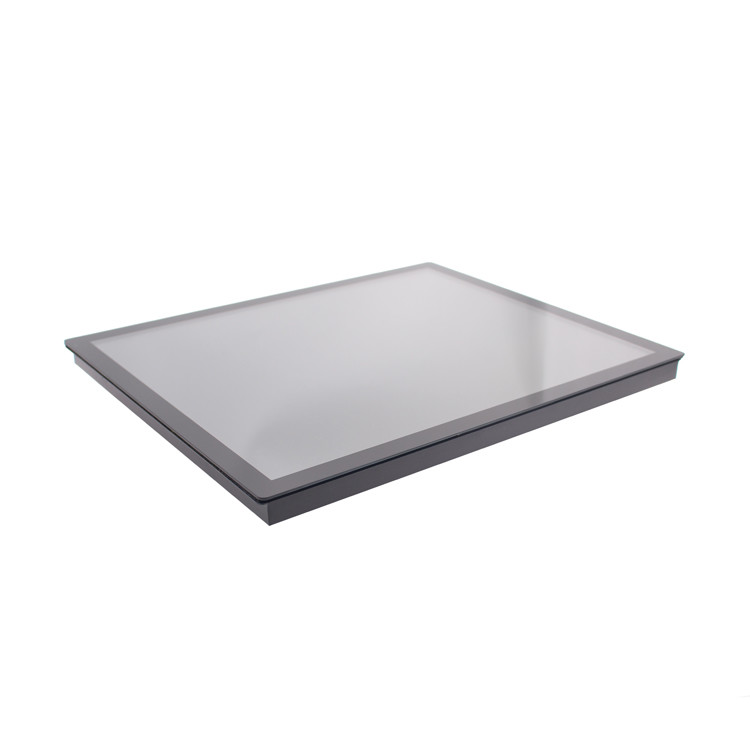

PCAP Touch Glass Surface Embedded Display Rugged Lcd Monitors
Features of lcd monitors
--- Full Glass surface
--- 10points PCAP touch screen
--- VGA, HDMI interface meet your needs
Configurations of lcd monitors
| LCD Panel Characteristics | Screen Size | 19-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1280(H)x 1024(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 1000cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
|
USB | 1x USB for touch use | ||
| HDMI | yes | |||
| VGA | yes | |||
| DVI | optional | |||
| Function | Sunlight readable | front panel control button | ||
| Mounting type | VESA 75/100mm | |||
| Optional | full wateproof | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operating Temperature | 0~60° C/-20-70C(optional) | |||
Customization of lcd monitors
1. Screen
--it can be vertical screen or horizontal screen.
2. Design
--- Own design team, which can provide customized design as client's needs.
3. Vraious functions
--- High brightness, touch, waterproof...etc all are optional
Application of lcd industrial monitor
1. Industry line-automated production equipment
2. HMI interface
3. water supply control cabinet
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
Waterproof Monitor which have excellent work performane.It offers rich of interface to meet csutomers needs.
Fully sealed IP65/67/68 waterproof which is widly used for kitchen,food industry, boat...etc
