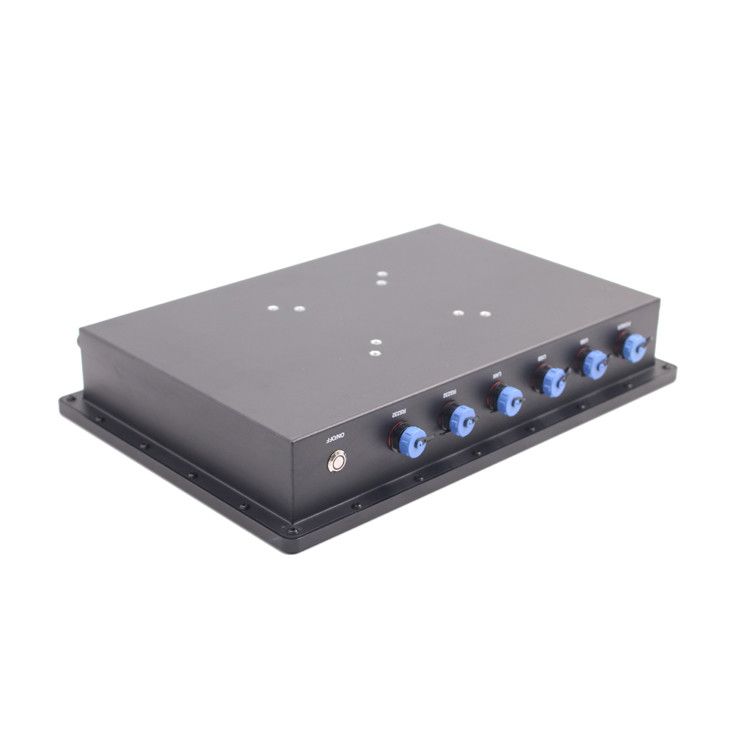

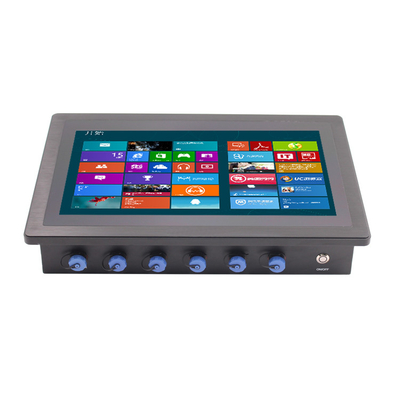

Panel Pc Windows 10 Full IP65 AIO Embedded Computer 13.3inch
Features of Panel PC Windows10
1. Sensistive resistive Touch screen
PCAP touch / SAW touch and IR touch can be choose.
2. Rich ports
USB, RJ45, COM,DC
3. Full IP65 waterproof
Configuration of Panel Pc windows 10
| Processor System | CPU | Intel Quad Core J4105/1.5 GHz | I/O Port | COM | 1 x RS232(Up to 4COM) | ||||||
| Memory | 2GB (up to 8G) | USB | 2 x USB2.0(up to 4USB) | ||||||||
| Storage | 32G SSD(up to 1TB) | LAN | 1/2 x RJ45, 10/100/1000 Mbps | ||||||||
| Operation System | WIndows 7/8/10 OS(trial version) | Function | IP65 waterproof | ||||||||
| LCD Panel Characteristics | Screen Size | 13.3'’ LED Panel,16:9 (7-22'' option) | Waterproof WIFI antenna(optional) | ||||||||
| Touchscreen Type | Capacitive touch screen/Resistive | Optional | 8-36V wide voltage | ||||||||
| Resolution | 1920(H)x 1080(V) | PoE | |||||||||
| Brightness | 300cd/m2 | WIFI / Bluetooth is built-in | |||||||||
| Other Information | Power supply | 110V-220V, 12V DC Input | Camera / RFID / NFC / Scanner built-in | ||||||||
| Working Temperature | 0-50℃ | Enclosure | Metal/Aluminum/Stainless Steel (optional) | ||||||||
| Mounting | 75*75/100*100mm VESA | Cooling system | Fanless | ||||||||
Customization service of industrial pc
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 7'' 10.4" 12'' 15" 17" 19" 21'' LCD panel
3) IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB
Application of industrial pc
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
With own designer and electric engineers, customation products is okay for us.
Should you have any needs, please feel free to tell us.
