VGA DVI 15'' 1024x768 Open Frame Touch Monitor 1000nits

Place of Origin Shenzhen,China
Brand Name INNODAPC
Certification CE,RoHS, FCC
Model Number IND150M
Minimum Order Quantity 1piece
Price Negotiable
Packaging Details 1pc/carton weight: 3kgs/pc, packing size: 41×15×35.5cm
Delivery Time 7working days upon receive the payment
Payment Terms T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability 8000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 15inch Open Frame Monitor Resolution 1024*768
Brightness 1000nits Sunlight Readable Port DVI, VGA, USB
Material Plastic+metal Warranty 12months
Fan Integrated
High Light

FCC 15'' Open Frame Touch Monitor

,

1024x768 Open Frame Touch Monitor

,

1000nits Sunlight Readable Lcd Panel

Leave a Message
Product Description



   15-inch XGA 1024x768 resolution IPS lcd panel monitor, plastic front bezel with metal back frame which is suitable for industry/ commercial. 10points sensistive PCAP touch panel with 3mm tempered glass. !000 cd/m2 brghtness is good for sunlight readable. VGA, DVi, USB rich port. INNODA monitor have widely usage, any customized demands, let us know.



Features

1. 15-inch Open Frame monitor


2. Adopt multi-touch capacitive touchscreen


3. Industrial LCD panel, wide viewing angle, high nits, true color



4. 1000cd/m2 brightness


5. Sturable rugged enclosure which is for harsh environment


6. Front Panel with plastic bezel



7. Fan built-in is good for cooling



8. Open Frame design suit for kiosk, cabinet, control station...



Configurations

LCD Panel Characteristics Screen Size 15-inch LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 1000cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

USB 1x USB for touch use
HDMI -------
VGA yes
DVI Yes
Function fan
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Plastic+Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

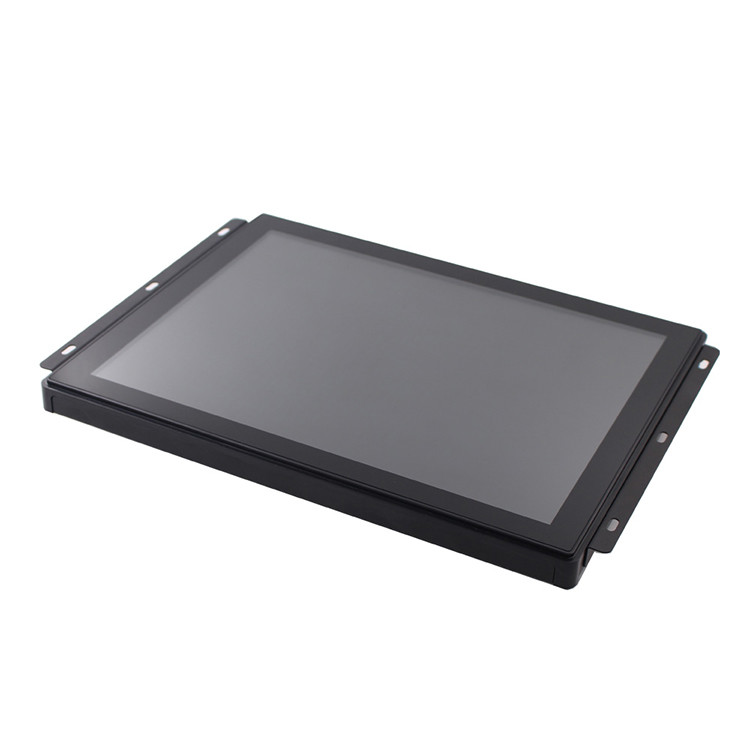

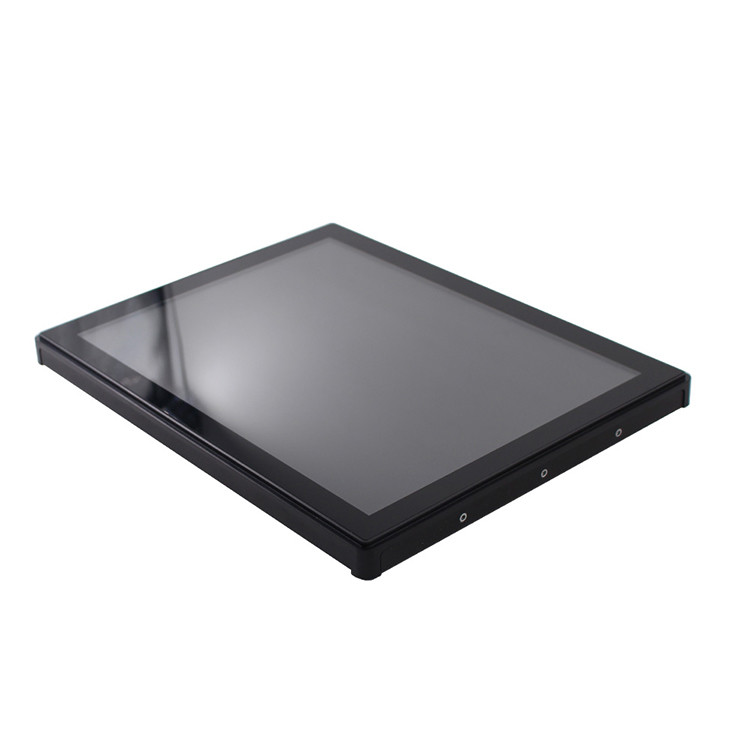

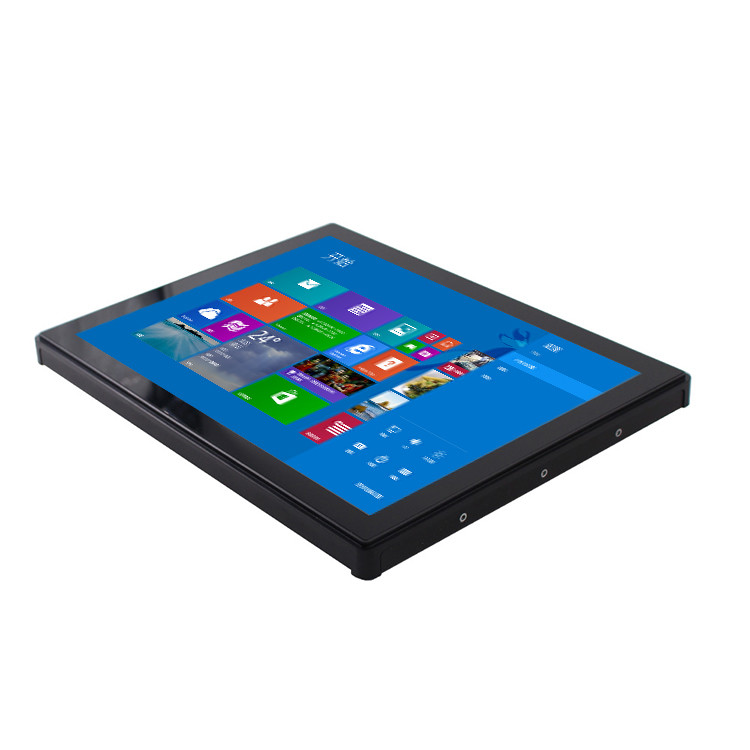

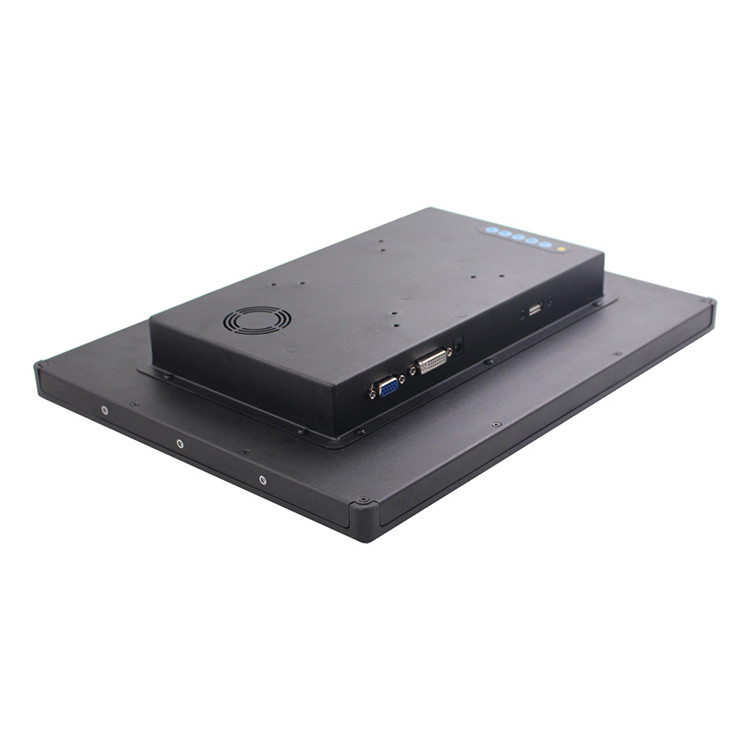

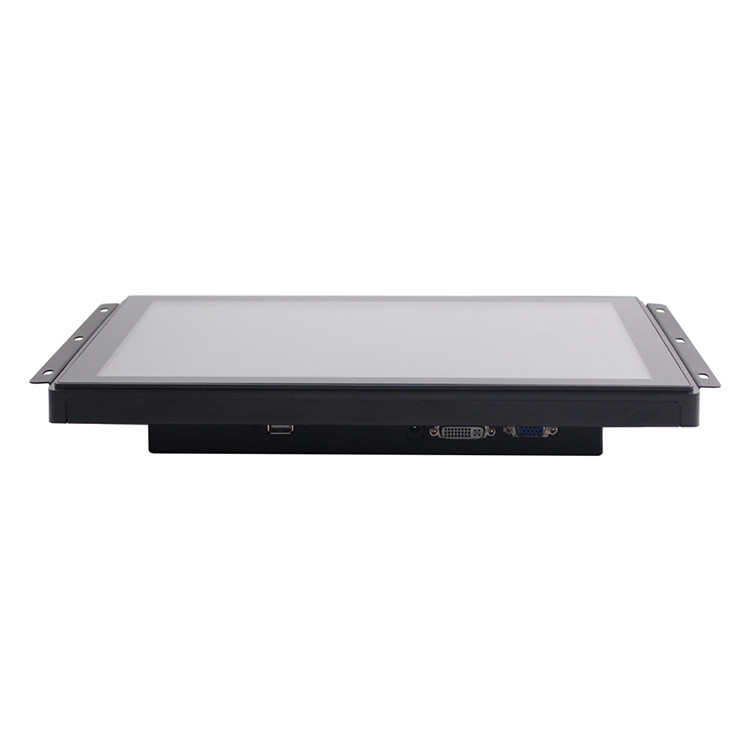

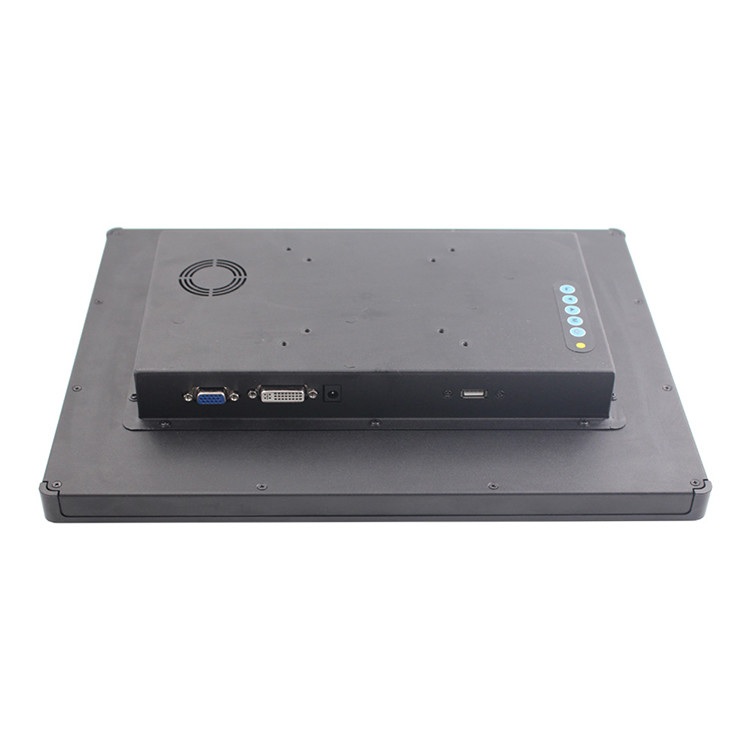

Detailed Image

VGA DVI 15'' 1024x768 Open Frame Touch Monitor 1000nits 0

Application

Industrial plant


Oil, Gas and Chemicals Industrial


Animal Feed Production Facility


CNC Control Panel


Rugged Environment Application


Food & Beverage Processing Instrument



VGA DVI 15'' 1024x768 Open Frame Touch Monitor 1000nits 1



Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
