| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODAPC |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND150PC |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 4kgs/pc, packing size: 41.5×35.5×15cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
| Type: | Embedded Touch Panel Pc | Size: | INNODAPC 15inch LCD Panel |
|---|---|---|---|
| Touchscreen: | Resistive Touch Screen | CPU: | Intel Core I5-4210U |
| System: | Windows 7/10(trial Version) / LInux / Ubuntu | Material: | Aluminum Metal Case |
| WIFI: | Optional | I/O Port: | USB, COM, Rj45, VGA, HDMI |
| High Light: | 10 Msec Embedded Touch Panel PC,Embedded Touch Panel PC Aluminum Bezel,300cd/m2 Resistive Panel Pc |
||

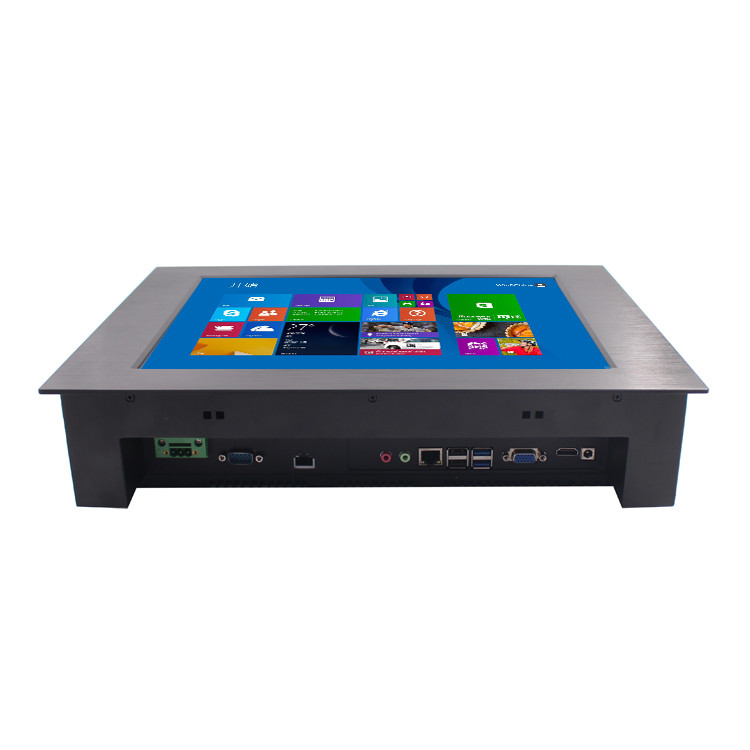

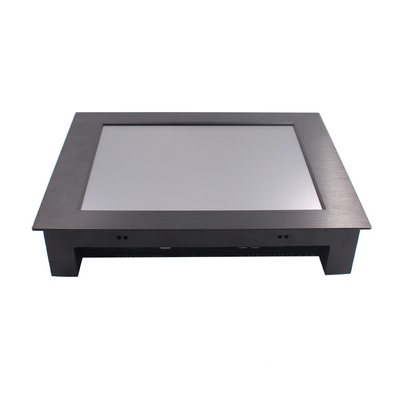

24V Green Phoenix Terminal Embedded Windows Resistive Panel Pc 15 inch
Features
1. Intel core I5-4210U Processor, DDR3 4G + 128G SSD
2. 2mm tempered glass Resistive touch screen
3. RIch ports: 2*COM, 2*RJ45, 4*USB, 1*VGA, HDMI
4. Aluminum bezel with metal rear case
5. 9-36V wide voltage built-in

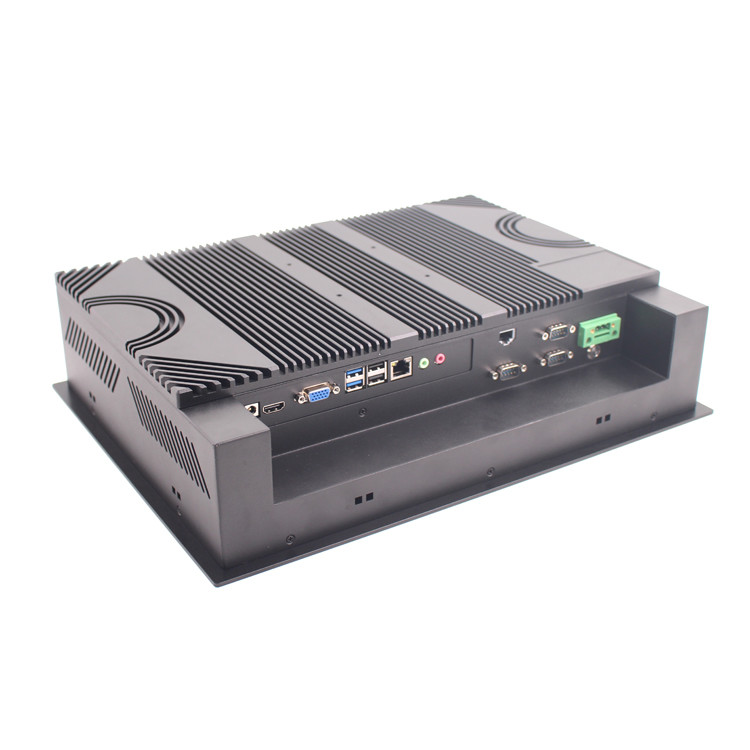

6. Fanless-aluminum heat sink for good cooling
Configuration
| INNODAPC Processor System | CPU | Intel core i5-4210U | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 15’’ LED Panel | |
| Touchscreen Type | Resistive touch screen | ||
| Resolution | 1024(H)x 768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 300cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2 x COM | |
| USB | 4xUSB2.0 | ||
| LAN | 2xRJ45, 10/100/1000 Mbps | ||
| VGA | Yes | ||
| Function(Optioanal) | Front IP65 | ||
| 9-36V wide voltage | |||
| Optional | AG / AR glass | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness
RFID / NFC card reader
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
