| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODAPC |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND070PC |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 7kgs/pc, packing size: 48×14×33.5cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
| Type: | Mini Touch Screen Pc | Screen Size: | 7 Inch |
|---|---|---|---|
| Brightness: | 1000 Cd/m2 | COm Port: | RS232 / RS422 / RS485 |
| High Light: | Embedded Mount Fanless Pc,Mini Embedded Touch Panel Pc 7inch,1000 cd/m2 Embedded Touch Panel Pc |
||

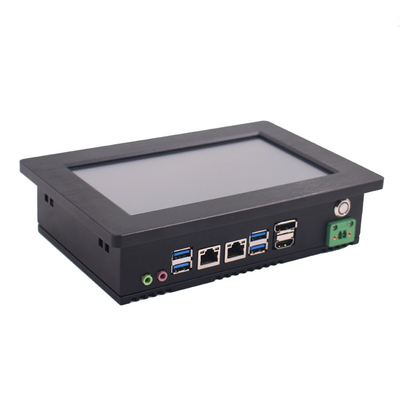

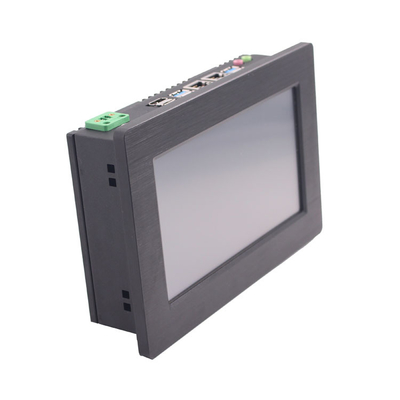

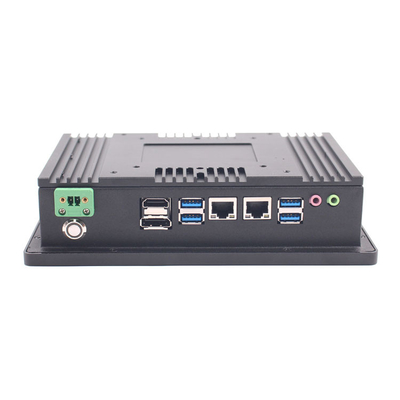

Mini Touch Panel Pc 7'' 8'' 10'' 12'' Embedded Mount Fanless Pc For Industry
Features of Mini Touch Panel Pc
1. 1000cd/m2 high brightness for sunlight readable
2. Rich ports: USB, COM, DP, HDMI, RJ45
3. WIFI provided
Configuration of Mini Touch panel pc
|
Computer Configurations of industrial HMI Touch panel |
|||
|
CPU |
Intel celeron J6413/1.8GHz |
||
|
Memory |
2GB to 8GB, DDR4 |
||
|
Built-in Storage |
32G/64G/128G/1TB SSD |
||
|
Operation System |
win7/8/10,linux, ubuntu |
||
|
Power Supply |
12V DC power |
||
|
Operating Temperature |
-20~70° C |
||
|
LCD Panel Charateristics |
|||
|
Screen Size |
7'' industrial grade Panel |
||
|
Touchscreen Type(optional) |
resistive Touch |
||
|
Resoltuion |
1024(H)*(RGB)* 600 (V) |
||
|
Aspect Ratio |
4:3 |
||
|
Brightness |
1000cd/m2 |
||
|
View Angle |
80x80(H),80x80(V) |
||
|
Contrast Ratio |
700:1 |
||
|
I/O Interface |
|||
|
4 x USB2.0(up to 6) |
2xLAN(RJ45) |
||
|
DP |
2xCOM(RS232/RS485/RS422) |
||
|
HDMI |
|||
|
Functions |
|||
|
WIFI |
24V wide voltage |
||
|
Other Information |
|||
|
Frame Material |
Aluminum Alloy/Stainless Steel |
||
|
Sheel Process Technic |
Powder coated/Wire Drawing/CNC craft |
||
|
VASA Mounting |
75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount |
||
|
Color |
Default balck,also can choose white,silvery or other colour |
||
|
Product Dimension(LxWxH) |
TBD |
||
|
Packing Dimension(LxWxH) |
TBD |
||
Application of industrial hmi touch panel
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
Package of industrial hmi touch panel
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
