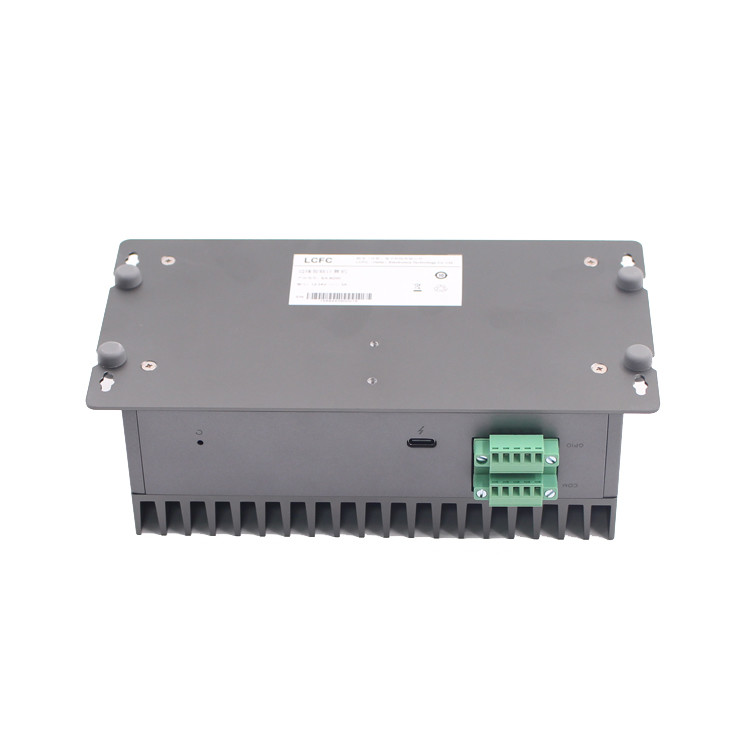

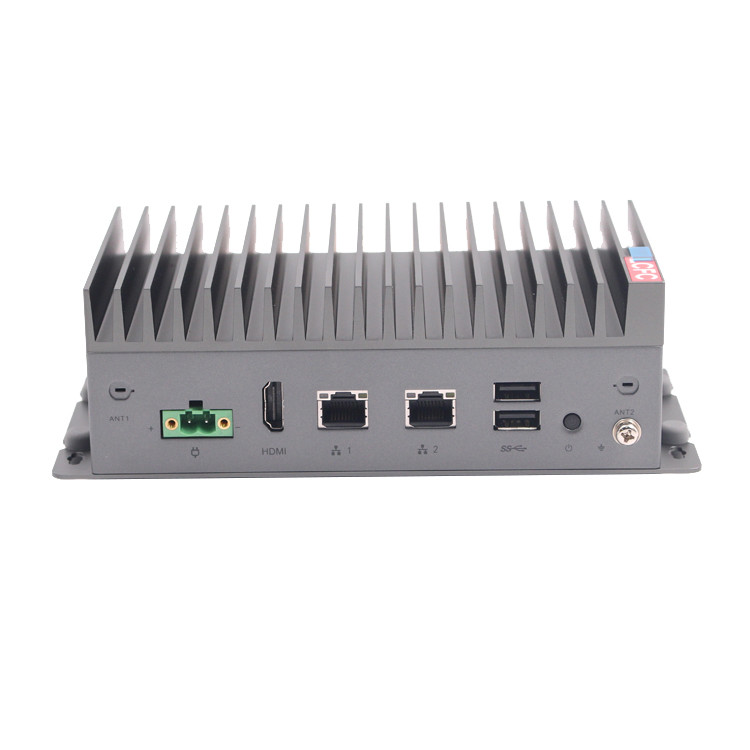

Small Powerfull Computer Edge AI Device NVIDIA Jetson Processor
Edge AI Computing Configuration
| Processor | NVIDIA Jetson TX2 NX | ||
| AI Performance | 1.33TFLOPS | ||
| CPU | Quad-core NVIDIA Denver 1.5 64-bit CPU and quad-core Arm Cortex-A57 MPCore processor complex |
||
| GPU | NVIDIA Pascal arcitecuure with 256 NIVIDA CUDA Cores | ||
| Memory | 4GB 128-bit LPDDR4x@ 51.2GB/s | ||
| Storage | 16GB eMMC 5.1 | ||
| Display Interface | HDMI Type A x 1 | ||
| Video Encode | 1x4K @ 60 (HEVC) | 3x4K @ 30 (HEVC) | |
| 4x1080P @ 60(HEVC) | 8x1080P @ 30 (HEVC) | ||
| Video Decode | 2x4K @60 (HEVC) | 7x1080P @ 60 (HEVC) | |
| 4x4K @ 30 (HEVC) | 14x1080P @ 30 (HEVC) | ||
| I/O Configuration | 2*Gigabit Ethernet | 1*CAN | 1*RS232/422/485 |
| 4*GPIO | 2*MIPI(CSI) | 2*USB3.0 | |
| 1*HDMI | 30-pin I/O x1(GPIO/I2C/SPI/UART) | ||
| User Expansion | Pick One Of Two: 1, MINI-PEIe*1 2,M.2 E-key 2230 x 1 for wifi | ||
| M.2 M key 2280 NVM (PCIE) | |||
| M.2 B-KEY for LTE/5G | |||
| Nano SIM Socket*1 | TF Slot*1 | ||
| Function Key | 1*power button | 1*Recovery button | |
| Power Requirement | 12-24V DC w/2-pin terminal | ||
| Dimension | 189x 96.7x57.5mm | ||
| Net Weight | 1.1KG | ||
| Protection | IP50 | ||
| Environmet | Operating Temperature | -25℃ - 60℃ CPU/GPU full loaded operation 60°-80° frequency Reduction operation |
|
| Storage Temperature | -40℃ - 80℃ | ||
| Humidity | 5-95% @ 40℃, non-condensing | ||
| Operation Vibration | 3 Grms 5-500Hz | ||
| Certificates | CCC / ROSH / SRRC | ||
Package
1unit in one box--standard internaltion packing, foam, box.
It will ship to customer via Express, like DHL, UPS, Fedex....
