Waterproof Panel Pc Gray Color Stainless Steel Outdoor Computer
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
Features
1. Waterproof IP65 Panel pc With multi-touch capacitive touchscreen
2. Fully sealed waterproof IP67(front+back+interface+power cable+power adapter all are waterproof)
3. Various water-tight IO Cables included
4. Excellent performance motherboard, 7x24 continuous operation
5. Durable 1.5mm Stainless steel frame
6. Good cooling system--big heat sink inside of the machine
7. Working Temperature -20-70C
Customization
1. size from 7''-42'' can be choose
2. Processor--Intel j1900/ I3/I5/I7 or Intel J3160 .....etc lower consumption board
3. Capacitive touch / Resistive touch / IR or without touch
4. 1000nits high brightness for sunlight readable
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz(Intel Core I3/I5/I7 optional) | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 12.1’’ LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1024(H)x768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 300cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2*RS232(can add to 4*COM) | |
| USB | 2xUSB2.0(can add to 4*USB) | ||
| LAN | 1xRJ45, 10/100/1000 Mbps(can add to 2*RJ45) | ||
| DC jack | 1x DC jack | ||
| Function |
Full waterproof IP67/IP68 optional | ||
| Optional | Card Reader -NFC / RFID | ||
| WIFI (waterproof IP67 antenna imported from Germany) | |||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| AG glass / AR glass | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with waterproof cables | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Stainless Steel SUS304(metal case option) | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certifiactes | CE RoHS | ||

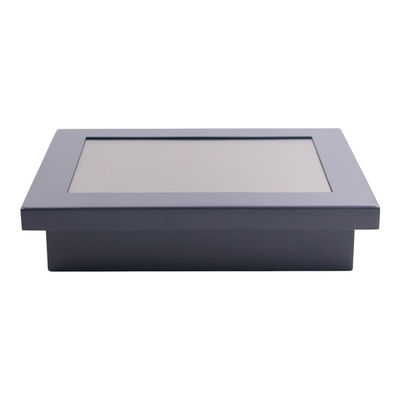

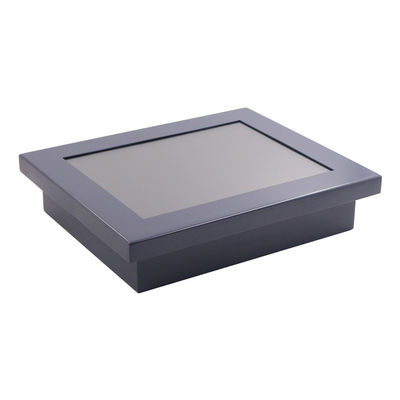

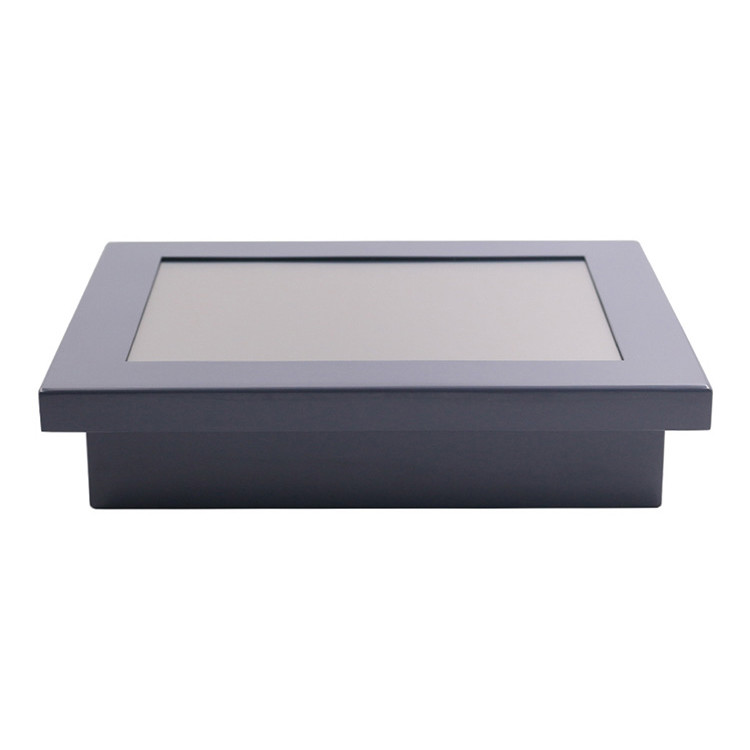

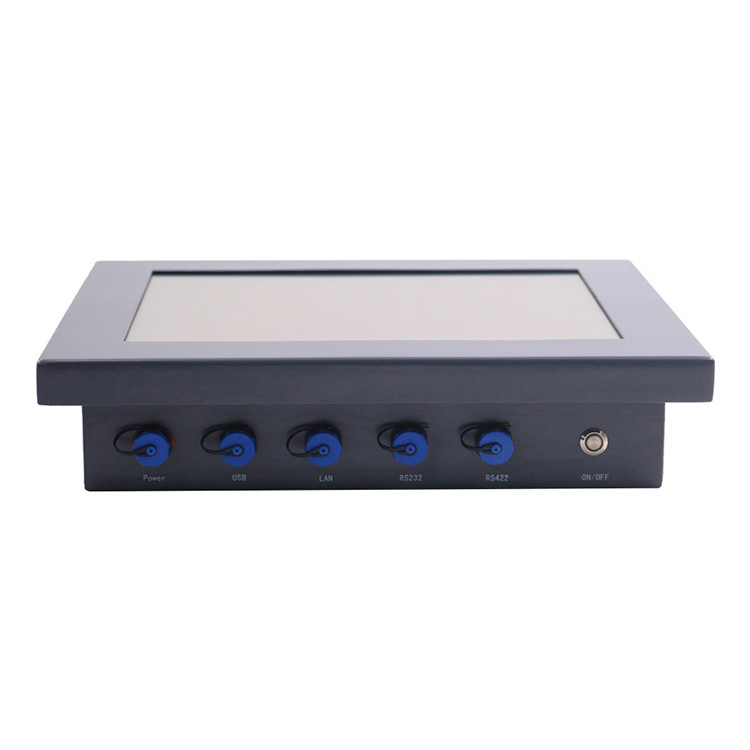

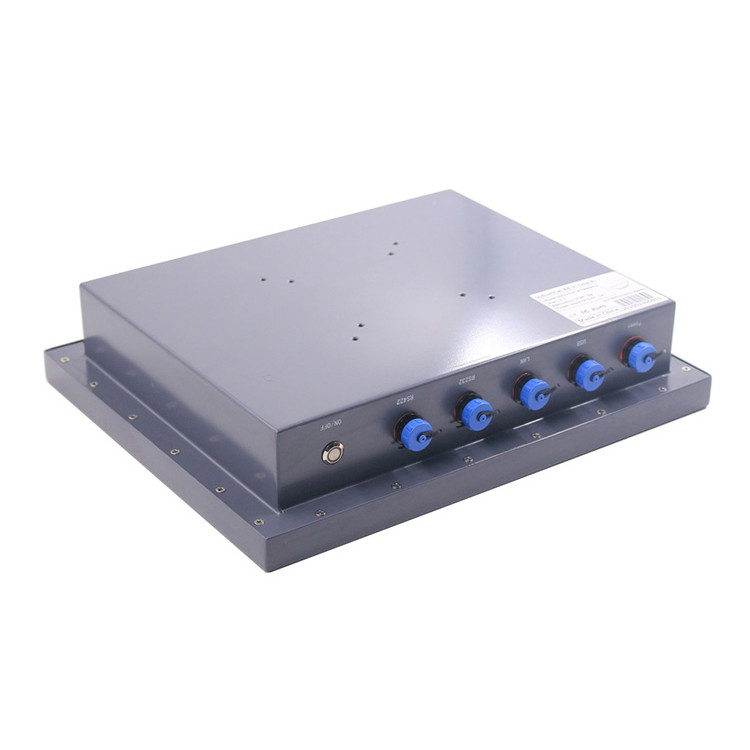

Detailed Image
12inch Waterproof Panel PC Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
