Rugged Industrial Touch Monitor , Linux Panel Pc Touch Screen

1piece
MOQ
Negotiable
Price
Rugged Industrial Touch Monitor , Linux Panel Pc Touch Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Type: 10'' Capacitive Touch Monitor
Resolution: 1280*800
Aspect Ratio: 16:9
I/O: VGA, HDMI,DVI
Working Temperature: -20-70C
Color: Black / White / Slivery...etc
System: Support Widnows/Android/ Linux
Material: Metal
High Light:

Rugged Industrial Touch Monitor

,

Linux Panel Pc Touch Screen

,

Rugged Panel Pc Touch Screen

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND101M
Payment & Shipping Terms
Packaging Details: 1pc/carton weight: 3kgs/pc, packing size: 27×22×6.6cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Product Description

10-Inch Capacitive Touch Monitor With Metal Frame Industrial Monitor

Features

1. 10-inch industrial capacitive touch monitor

2. Adopt multi-touch capacitive / resistive touch / Ir touch

3. Industrial LCD panel, wide viewing angle, high nits, true color

4. Sturable rugged enclosure which is for harsh environment



Configurations

LCD Panel Characteristics Screen Size 10.1’’ LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1280(H)x800(V)
Aspect Ratio 16:9
Brightness 350cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

USB 1xUSB for touch use
HDMI 1XHDMI
VGA 1xVGA
DVI yes
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

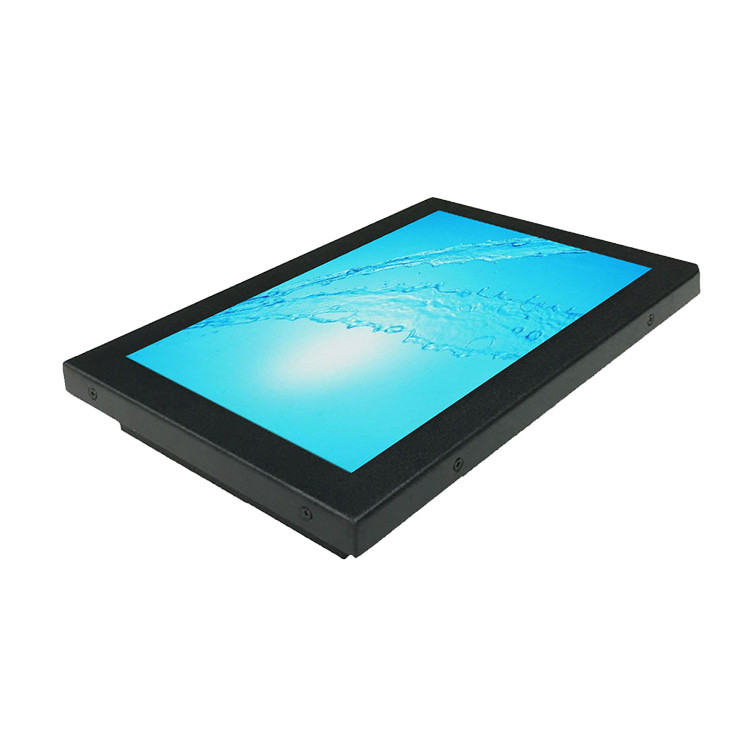

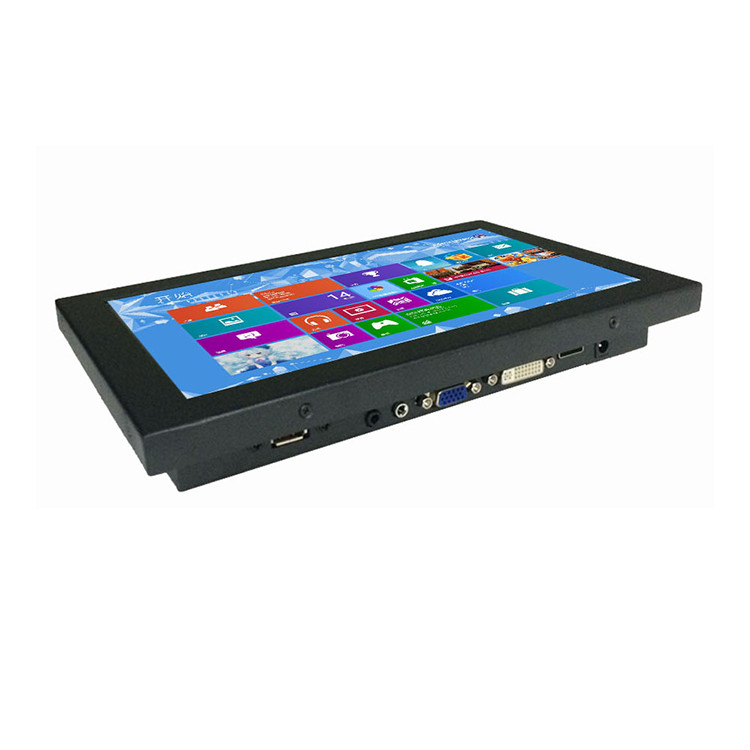

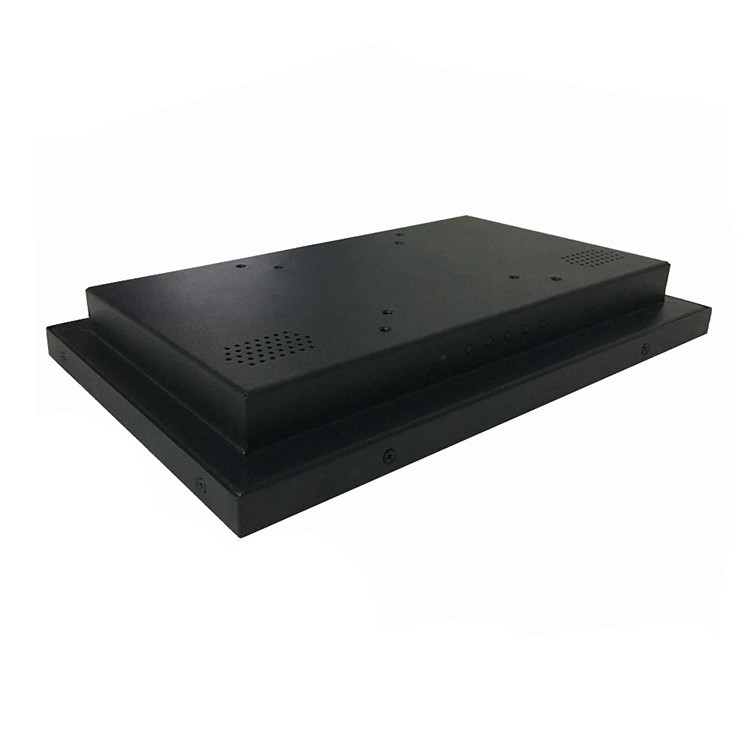

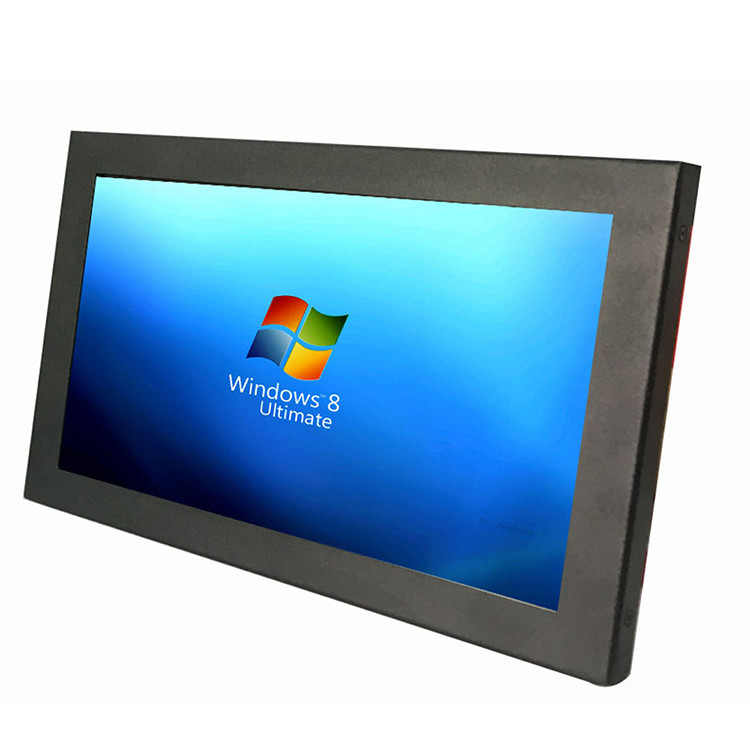

Detailed Image

Rugged Industrial Touch Monitor , Linux Panel Pc Touch Screen 0Rugged Industrial Touch Monitor , Linux Panel Pc Touch Screen 1

Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference



Rugged Industrial Touch Monitor , Linux Panel Pc Touch Screen 2

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

Rugged Industrial Touch Monitor , Linux Panel Pc Touch Screen 3
