Low Consumption Industrial Panel Mount Monitor 15-Inch Rugged Panel
Features
1. 15-inch Industrial Panel Mount monitor
2. Adopt multi-touch capacitive / Resistive / Ir touch as you need
3. Industrial LCD panel, wide viewing angle, high nits, true color
4. Sturable rugged enclosure which is for harsh environment
5. CE, RoHS compliance
Configurations
| LCD Panel Characteristics | Screen Size | 15-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1024(H)x768(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
I/O Interface |
USB | 1x USB for touch use | ||
| HDMI | ------- | |||
| VGA | yes | |||
| DVI | Yes | |||
| Function | touchscreen | |||
| Mounting type | VESA 75/100mm | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

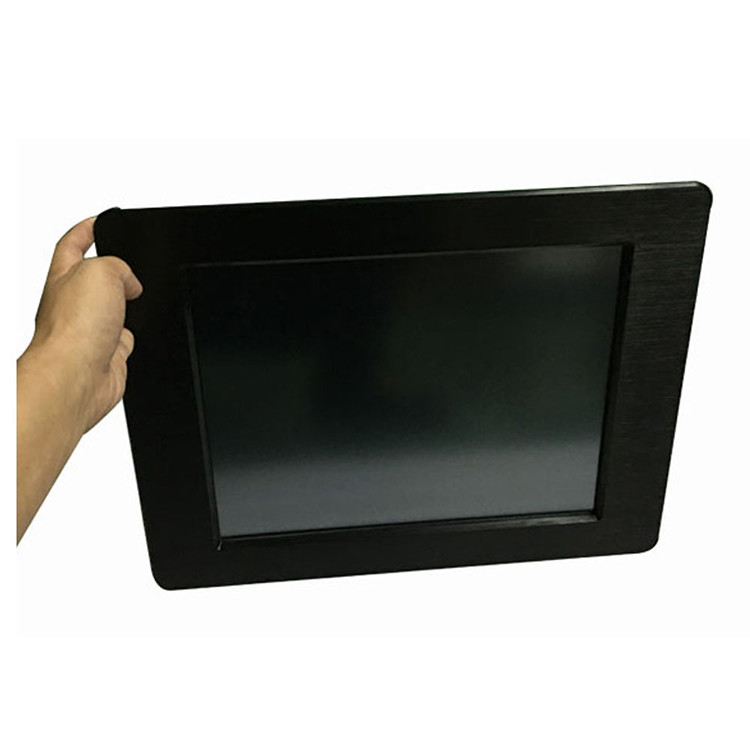

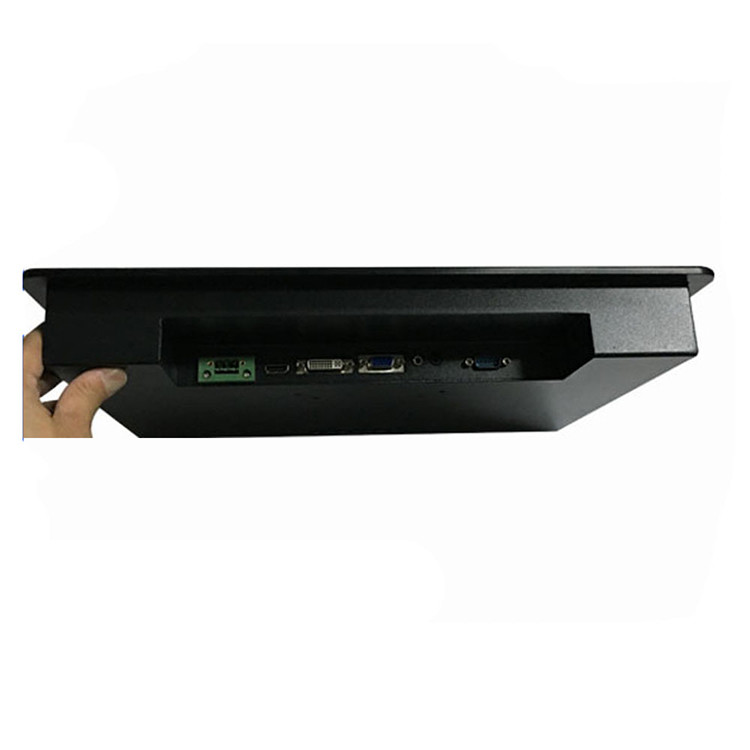

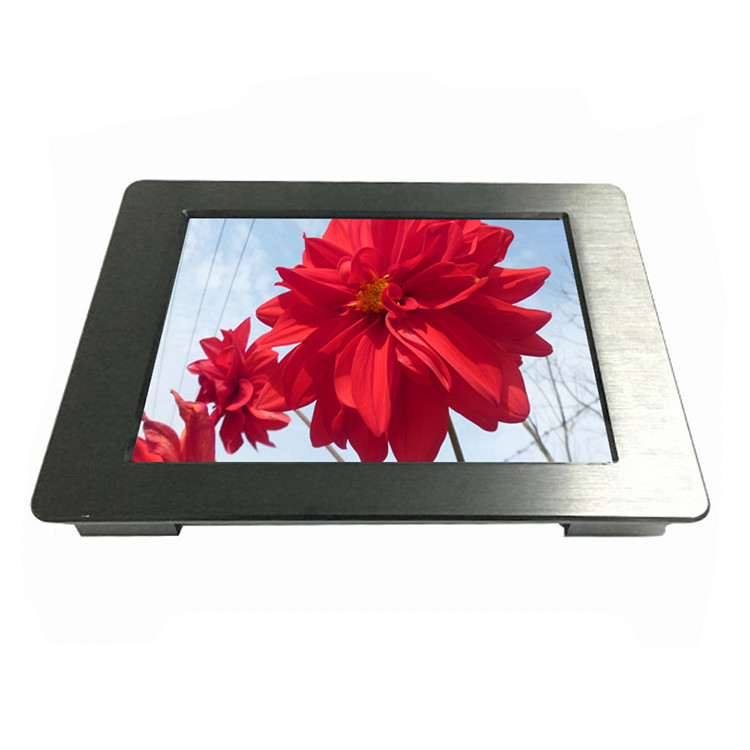

Detailed Image
Application
Industrial machine
Cabinet
Automation system
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
