Front IP66 Waterproof LCD Monitor 1.5mm Stainless Steel

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND150M
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 3kgs/pc, packing size: 41×15×35.5cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: 17inch Waterproof Lcd Monitor Resolution: 1280*1024
Touch: Capacitive Touch Screen IP Grade: IP66
Material: 1.5mm Stainless Steel Working Temperature: -20-70C
High Light:

Front IP66 Waterproof LCD Monitor

,

1.5mm Stainless Steel Waterproof LCD Monitor

,

Stainless Steel ip66 lcd monitor


Product Description

Front IP66 Waterproof Lcd Monitor 17-Inch SUS304 Frame Outdoor Display

Features

- 17inch Panel with 1280*1024 resolution, 4:3 aspect
- Multi Touch Screen Standard (Capacitive or Resistive or Tempered glass)

- Front IP66 waterproof

- 1.5mm durable stainless steel enclosure for harhash environment

- Widely voltage 8-36V DC

- Client's logo acceptable



Configurations

LCD Panel Characteristics Screen Size 17-inch LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1280(H)x1024(V)
Aspect Ratio 4:3
Brightness 350cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

USB 1x USB for touch use
HDMI yes
VGA yes
DVI Yes
Function Front IP66 waterproof
24V wide voltage
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Stainless Steell(Aluminum/metal for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

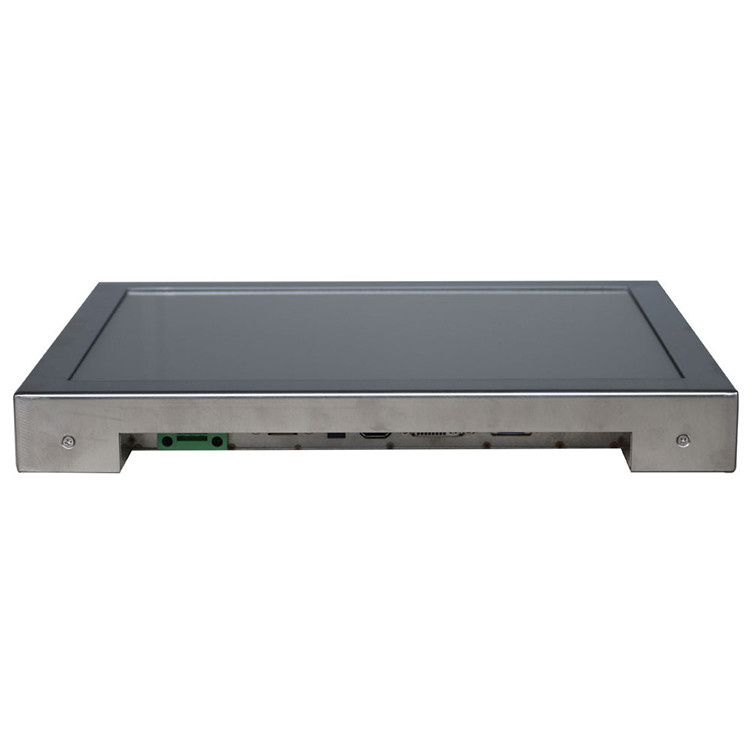

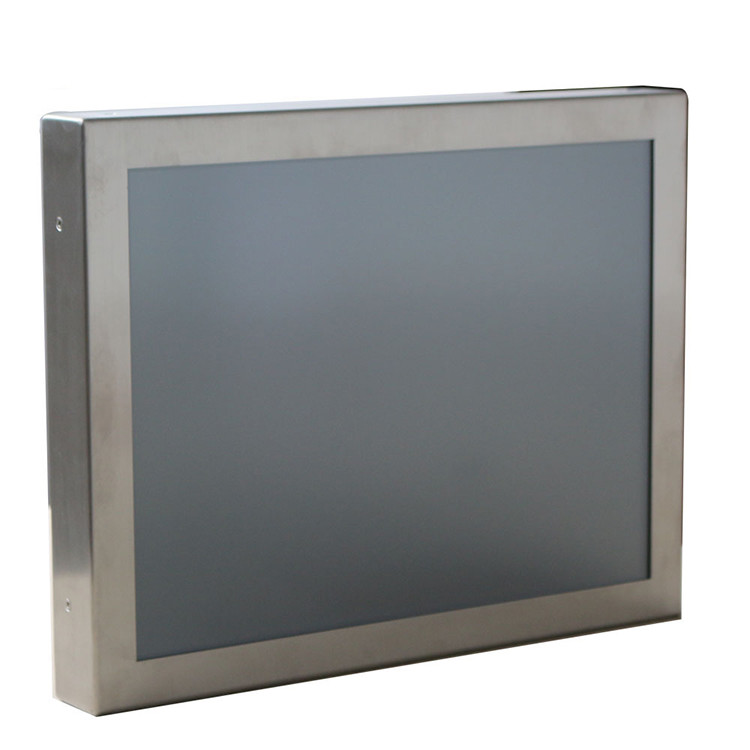

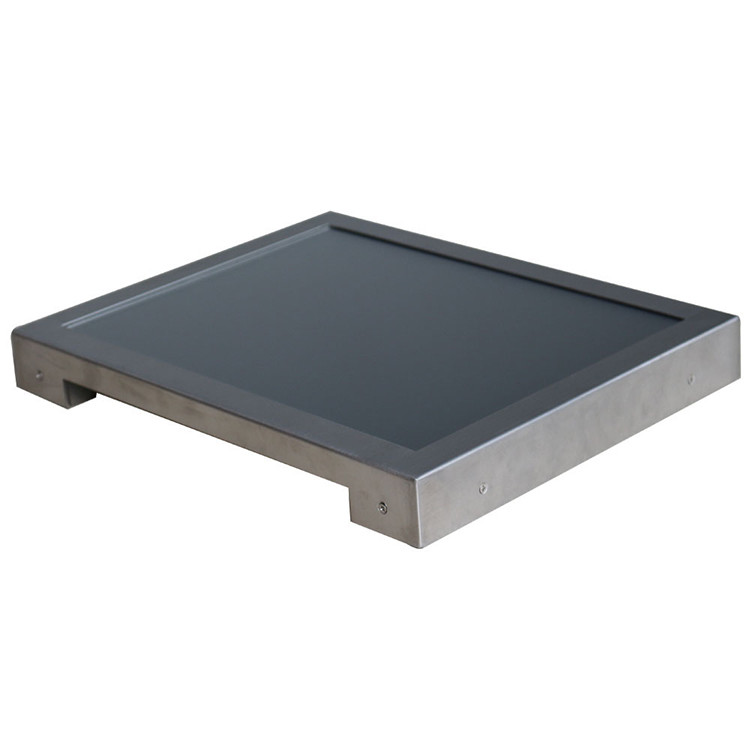

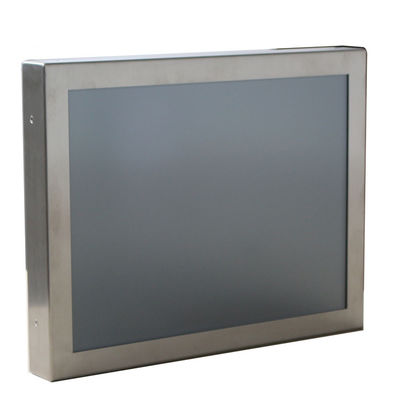

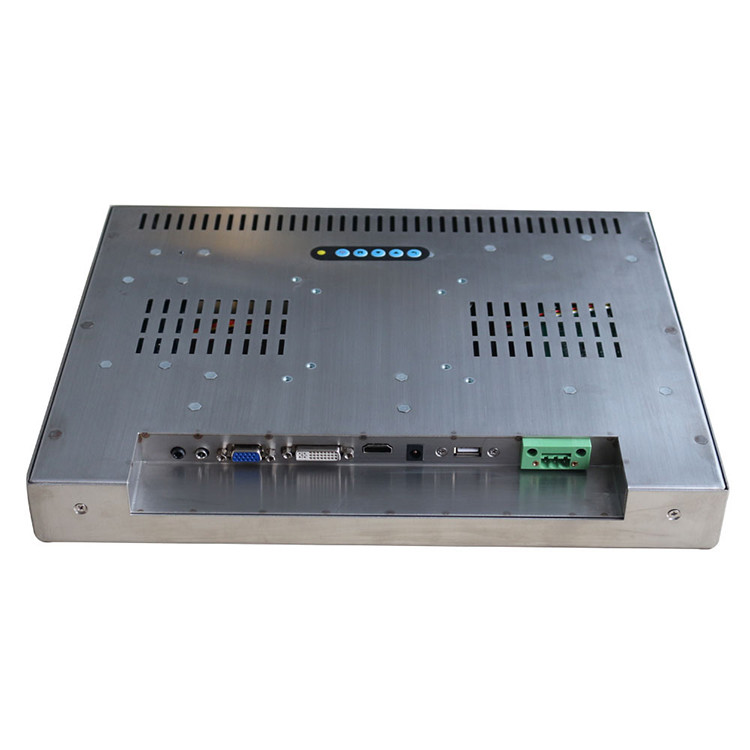

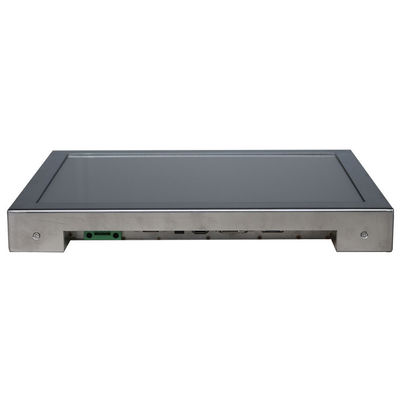

Detailed Image

Front IP66 Waterproof LCD Monitor 1.5mm Stainless Steel 0Front IP66 Waterproof LCD Monitor 1.5mm Stainless Steel 1

Front IP66 Waterproof LCD Monitor 1.5mm Stainless Steel 2

Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

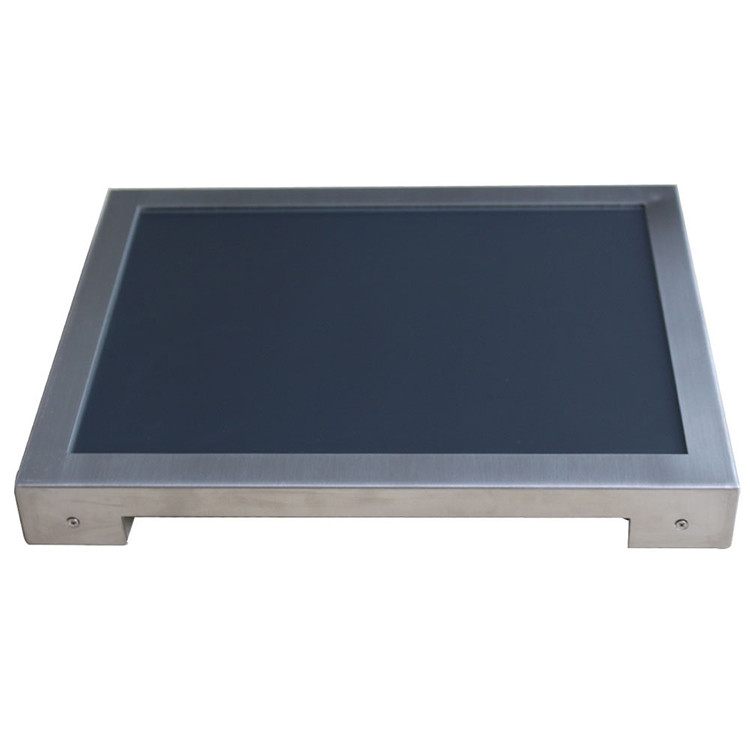

Front IP66 Waterproof LCD Monitor 1.5mm Stainless Steel 3



Welcome to ask for more information.
