15.6'' Ip67 Panel Pc , Fully Sealed Panel Pc Touch Screen

1piece
MOQ
Negotiable
Price
15.6'' Ip67 Panel Pc , Fully Sealed Panel Pc Touch Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Type: 15.6'' Waterproof Panel Pc
Aspect Ratio: 16:9
Fan: Fanless
I/O Port: USB, COM, RJ45
IP Rate: Waterproof IP65/67/68 Optional
OS System: Windows 7/10, Linux, Ubuntu
Working Temperature: -10-60C
Material: 1.5mm Stainless Steel
High Light:

Fully Sealed Panel Pc Touch Screen

,

15.6'' Ip67 Panel Pc

,

15.6'' Panel Pc Touch Screen

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND156PC
Payment & Shipping Terms
Packaging Details: 1pc/carton weight: 6.5kgs/pc, packing size: 50×44×14cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Product Description

Wide Screen 15.6-Inch Fully Sealed IP67 Waterproof Panel Pc



Features

1. 15.6''Waterproof IP65 Panel pc With multi-touch capacitive touchscreen

2. Fully sealed waterproof IP67(front+back+interface+power cable+power adapter all are waterproof)

3. Various water-tight IO Cables included

4. Excellent performance motherboard, 7x24 continuous operation

5. Durable 1.5mm Stainless steel frame

6. Good cooling system--big heat sink inside of the machine

7. Working Temperature -20-70C



Configuration

Processor System CPU Intel Quad-core J1900/2.0 GHz(Intel Core I3/I5/I7 optional)
Memory 2GB (up to 8G)
Storage 32G SSD(up to 1TB)
Operation System WIndows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 15.6-inch Lcd Panel
Touchscreen Type Capacitive touch screen
Resolution 1920(H)x1080(V)
Aspect Ratio 16:9
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 1*RS232(can add to 4*COM)
USB 2xUSB2.0(can add to 4*USB)
LAN 1xRJ45, 10/100/1000 Mbps(can add to 2*RJ45)
DC jack 1x DC jack
Function

Full waterproof IP67/IP68 optional
Optional Card Reader -NFC / RFID
WIFI (waterproof IP67 antenna imported from Germany)
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
AG glass / AR glass
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with waterproof cables
Working Temperature -20~70° C
Other Information Material Stainless Steel SUS304(metal case option)
Color Black/Silver/White
Mounting VESA mount / Embedded
Certifiactes CE RoHS

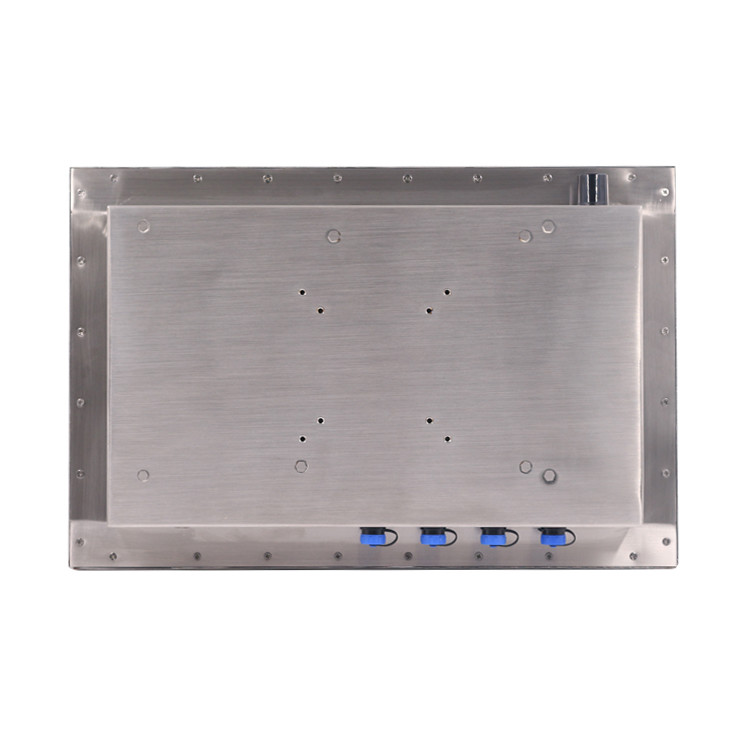

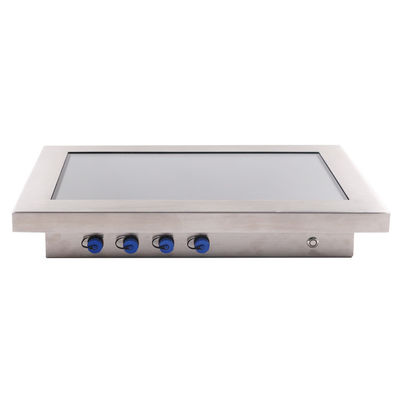

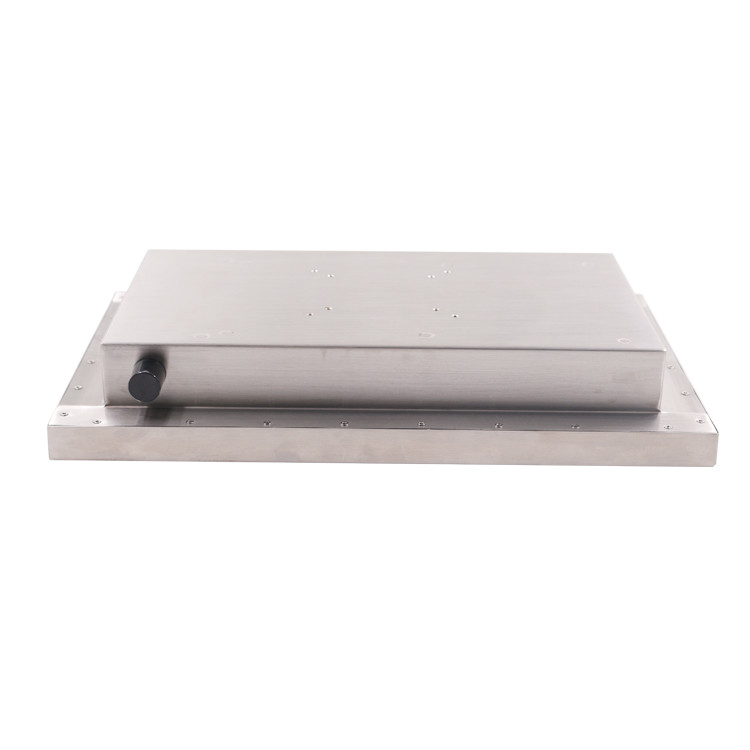

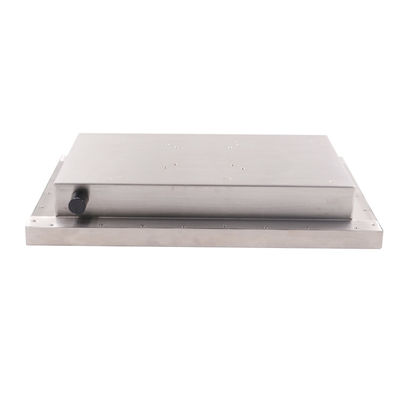

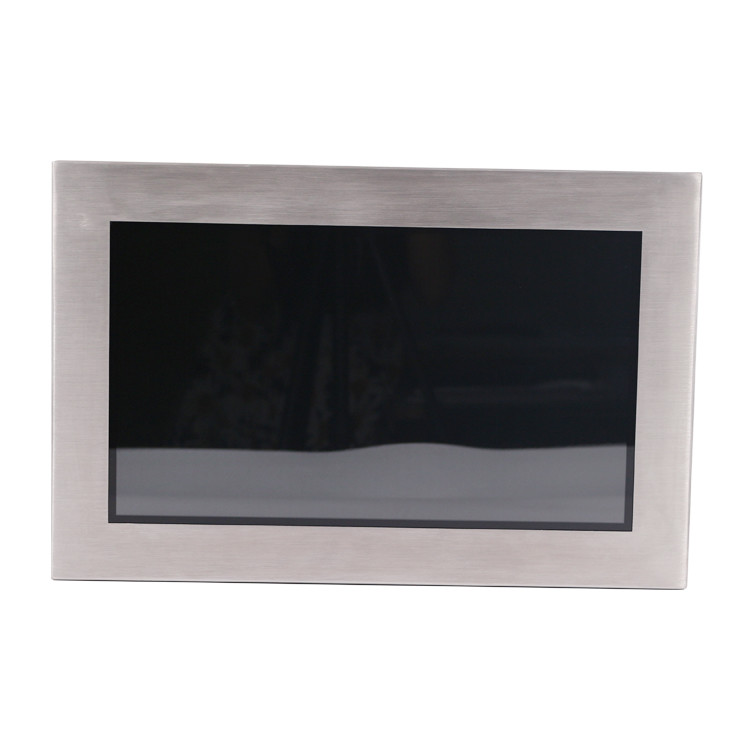

Detailed Image

15.6'' Ip67 Panel Pc , Fully Sealed Panel Pc Touch Screen 015.6'' Ip67 Panel Pc , Fully Sealed Panel Pc Touch Screen 1

Customization

1. size from 7''-42'' can be choose

2. Processor--Intel j1900/ I3/I5/I7 or Intel J3160 .....etc lower consumption board

3. Capacitive touch / Resistive touch / IR or without touch

4. 1000nits high brightness for sunlight readable

15.6'' Ip67 Panel Pc , Fully Sealed Panel Pc Touch Screen 2

Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc


15.6'' Ip67 Panel Pc , Fully Sealed Panel Pc Touch Screen 3



ODM OEM acceptable!
