Open Frame Android 8 Stainless Steel Panel PC RK3288 CPU

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND104APC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 4.5kgs/pc, packing size: 41.5×15×35.5cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: 10.4inch Stainless Steel Android Tablet Resolution: 1024*768
Aspect Ratio: 4:3 Touchscreen: PCAP Touch Screen
CPU: RK3288 Mounting: Open Frame
IP Grade: Full IP65 Material: 1.5mm Stainless Steel With Flat Screen Design
High Light:

Android 8 Stainless Steel Panel PC

,

RK3288 Stainless Steel Panel PC

,

RK3288 Open Frame Panel PC


Product Description

10.4-Inch Stainless Steel Panel Pc Android 8.0 Waterproof IP65 Tablet
Features
1. Waterproof IP65 Panel pc With multi-touch capacitive touchscreen
2. Fully sealed waterproof IP67(front+back+interface+power cable+power adapter all are waterproof)
3. Various water-tight IO Cables included
4. Excellent performance motherboard, 7x24 continuous operation
5. Durable 1.5mm Stainless steel frame
6. Good cooling system--big heat sink inside of the machine
7. Working Temperature -20-70C


This steel is resistant to oxidization through acid, alkali, or water corrosion as well as resistant to bacterial growth.
In chemical factories or places where stronger industrial solvents are used, SUS316 stainless steel can be used which enhances corrosion resistance



Configuration

Processor System CPU RK3288, quad-core Cortex-A17+GPU Mail-T764, up to 1.8Ghz Processor
Memory 2GB/4GB
Storage 16G EMMC(8G/16G/32G optional)
Operation System Android 6.0.1
LCD Panel Characteristics Screen Size 10.4’’ LED Panel
Touchscreen Type Capacitive touch screen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 300cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface PoE -------optional
USB 1xUSB2.0
LAN RJ45 optional
HDMI 1xHDMI
Wide Voltage 8-36V wide range voltage(optional)
VGA optional
Optional WIFI
Brightness control button
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Stainless steel frame
Color Black/Silver/White
Mounting Open frame/ VESA

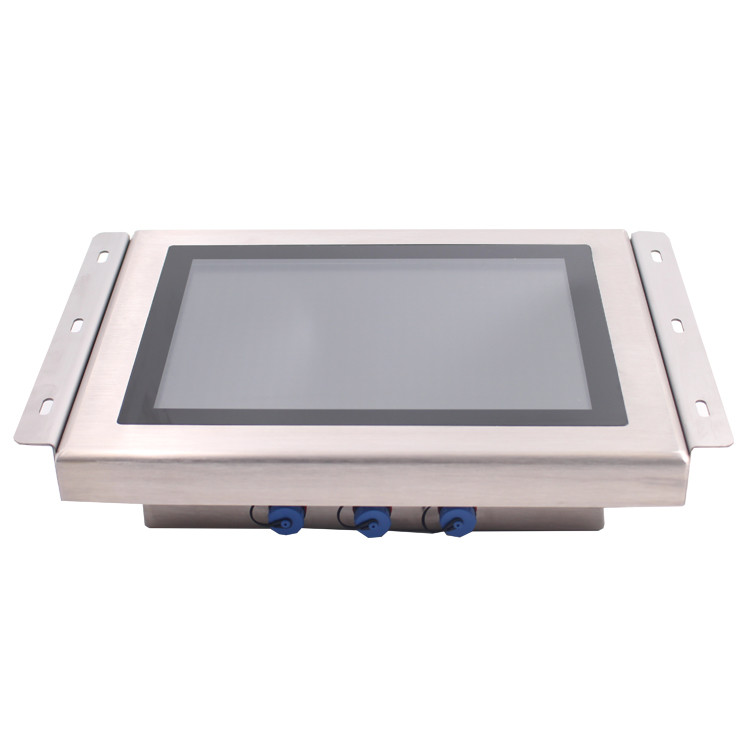

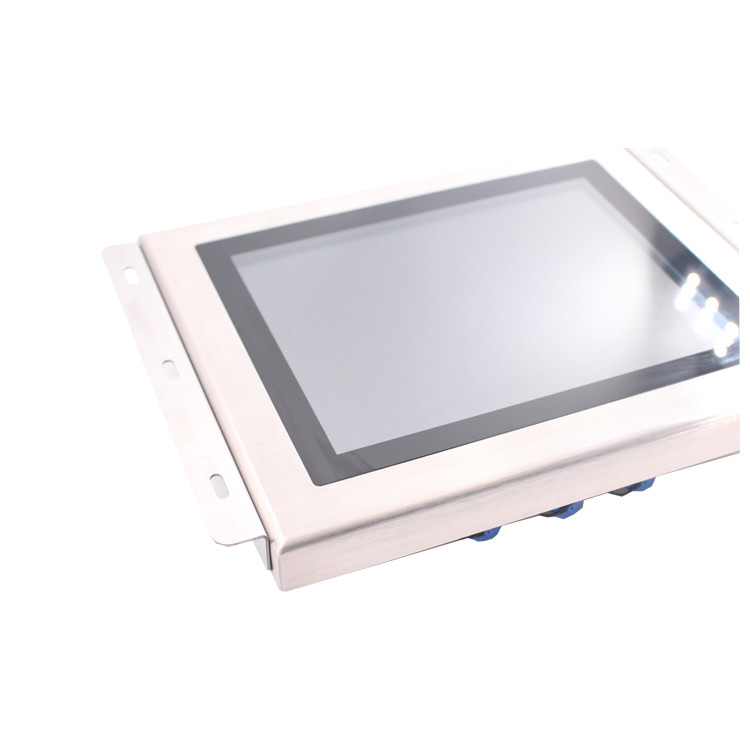

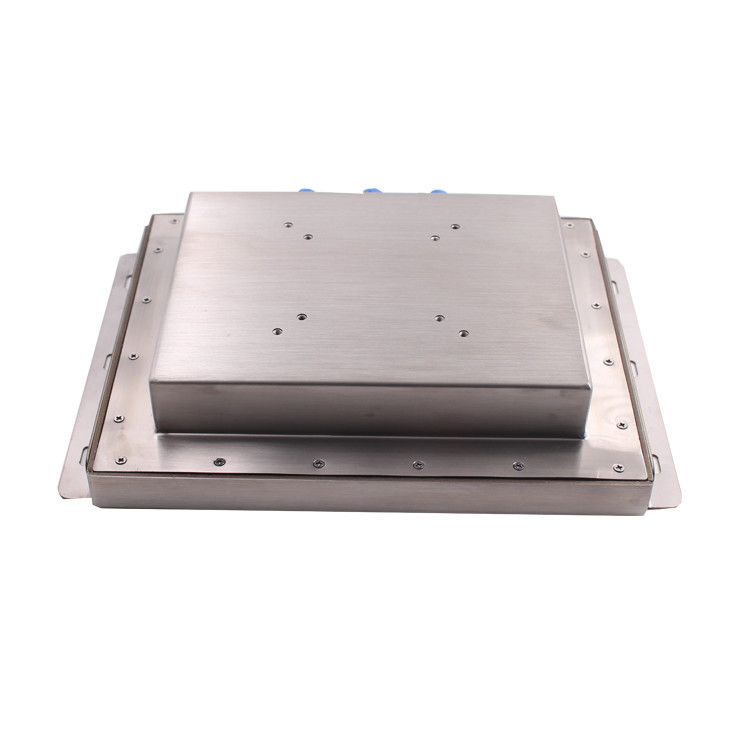

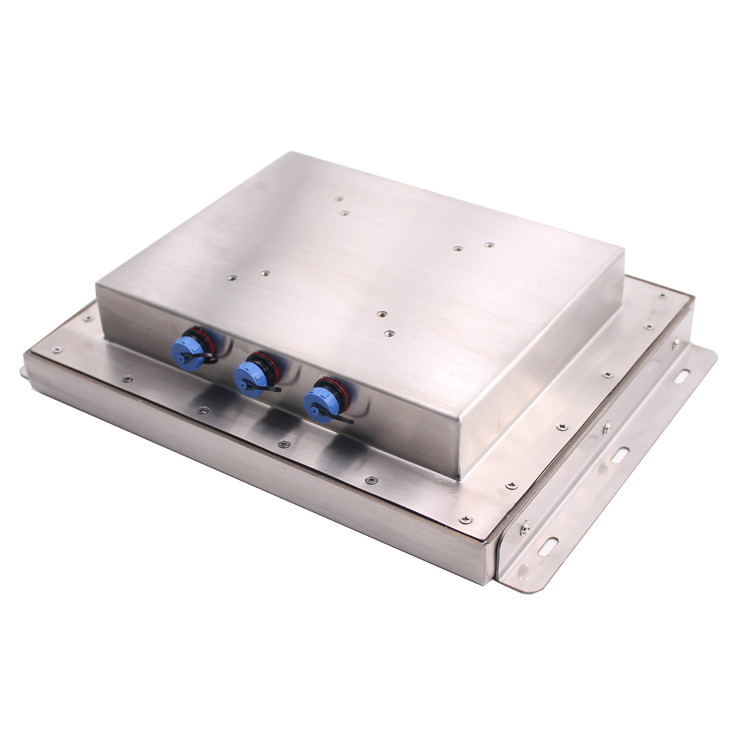

Detailed Image
Open Frame Android 8 Stainless Steel Panel PC RK3288 CPU 0Open Frame Android 8 Stainless Steel Panel PC RK3288 CPU 1

Application

Slaughter

Gas station

Fishing boat

Navigation equiptment

Food industry

Kitchen

Outdoor advertisment



Open Frame Android 8 Stainless Steel Panel PC RK3288 CPU 2

Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness


Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference



Our Advantage
1. Experience

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

Open Frame Android 8 Stainless Steel Panel PC RK3288 CPU 3
