24V 350nits 1024x768 Industrial Panel Mount Monitor 8 Inch
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODAPC |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND080M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 3.5kgs/pc, packing size: 41.5×35.5×15cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
|
Detail Information |
|||
| Type: | Industrial Panel Mount Monitor | Resolution: | 1024*768 |
|---|---|---|---|
| Touchscreen: | Non-touch | Brightness: | 350nits |
| Ratio Aspect: | 4:3 | I/O: | VGA, HDMI |
| System: | Support Widnows/Android/ Linux | Material: | Metal Case |
| High Light: | 1024x768 Industrial Panel Mount Monitor,350nits Industrial Panel Mount Monitor,DVI VESA 8 Inch Lcd Panel |
||
Product Description
Features
1024*768 true color,Brand new 8inch industrial lcd panel with 2mm tempered glass. 24V DC power input which is for wide voltage demands. What's more, rich interface HDMI, VGA ports. Durable metal frame with VESA / Embedded mounting hole
Full Sepcification
| LCD Panel Characteristics | Screen Size | 8’’ LED Panel | ||
| Touchscreen Type | Non- touch screen | |||
| Resolution | 1024(H)x768(V) | |||
| Aspect Ratio | 16:9 | |||
| Brightness | 1000cd/m2 | |||
| Contrast Ratio | 500:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
|
USB | ------ | ||
| HDMI | yes | |||
| VGA | yes | |||
| DVI | ------- | |||
| Function | 8-36V wide voltage | |||
| Mounting type | VESA hole 75*75/100*100mm / Embedded | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

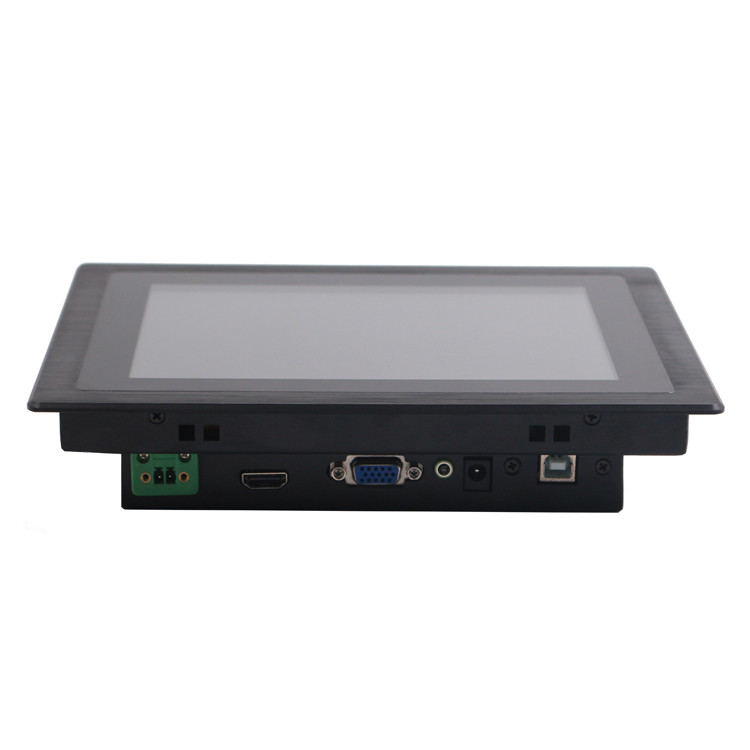

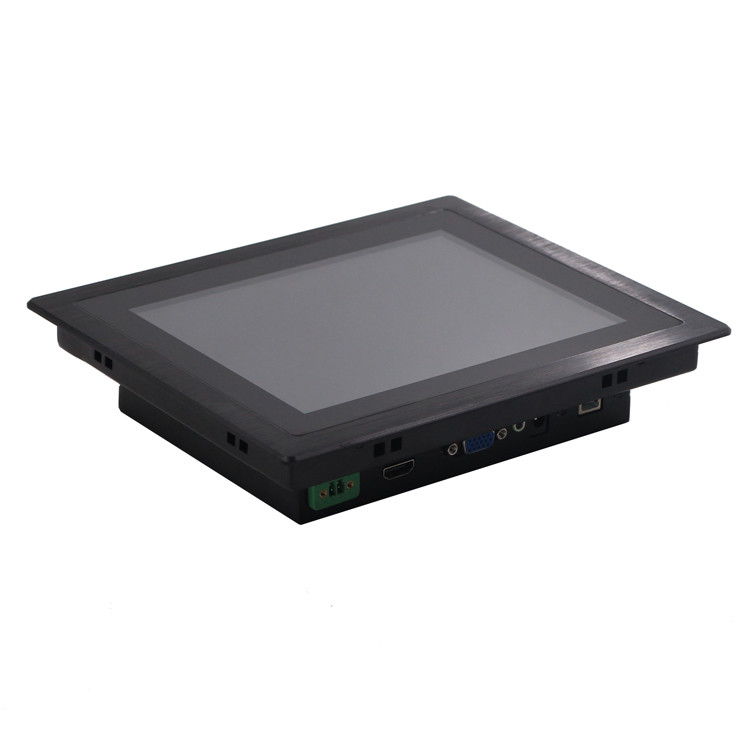

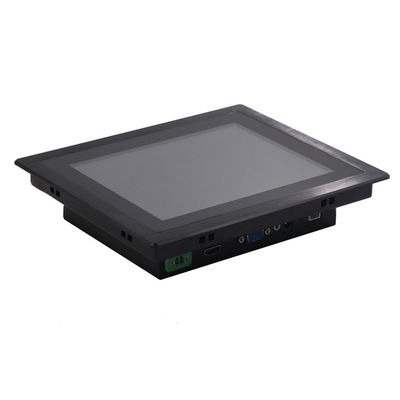

Detailed Image
8" Industrial monitor Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
