Features
1. Waterproof IP65 monitor With multi-touch resistive touchscreen
2. Fully sealed waterproof IP65(front+back+interface+power cable+power adapter all are waterproof)
3. Various water-tight IO Cables included, HDMI, USB, DC jack
4. 1000nits brightness for sunlight readable
5. Power button built-in
6. Durable 1.5mm Stainless steel frame
7. Working Temperature -20-70C
This steel is resistant to oxidization through acid, alkali, or water corrosion as well as resistant to bacterial growth.
In chemical factories or places where stronger industrial solvents are used, SUS316 stainless steel can be used which enhances corrosion resistance
Full Sepcification
LCD Panel Characteristics | Screen Size | 10’’ LED Panel | ||
Touchscreen Type | Resistive Touch screen | |||
Resolution | 1280(H)x800(V) | |||
Aspect Ratio | 16:9 | |||
Brightness | 1000cd/m2 | |||
Contrast Ratio | 500:1 | |||
View Angle | 80x80(H),70x70(V) | |||
Response Time | 15 msec | |||
|
USB | yes, for touch use | ||
HDMI | yes | |||
VGA | ---- | |||
DVI | ------- | |||
Function | Full IP65 wateproof | |||
1000cd/m2 dalight readable | ||||
Power button built-in | ||||
Mounting type | VESA hole 75*75/100*100mm / Embedded | |||
Optional | 8-36V wide range voltage | High brightness | ||
Bracket Mount | ||||
Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
Accessories | 1x8A Power Adapter with cable | |||
Other Information | Material | 1.5mm Stainless Steel (Aluminum/metal for choose) | ||
Color | Black/Silver/White | |||
VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
Humidity | 5~95% @ 40° C, non-condensing | |||
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |

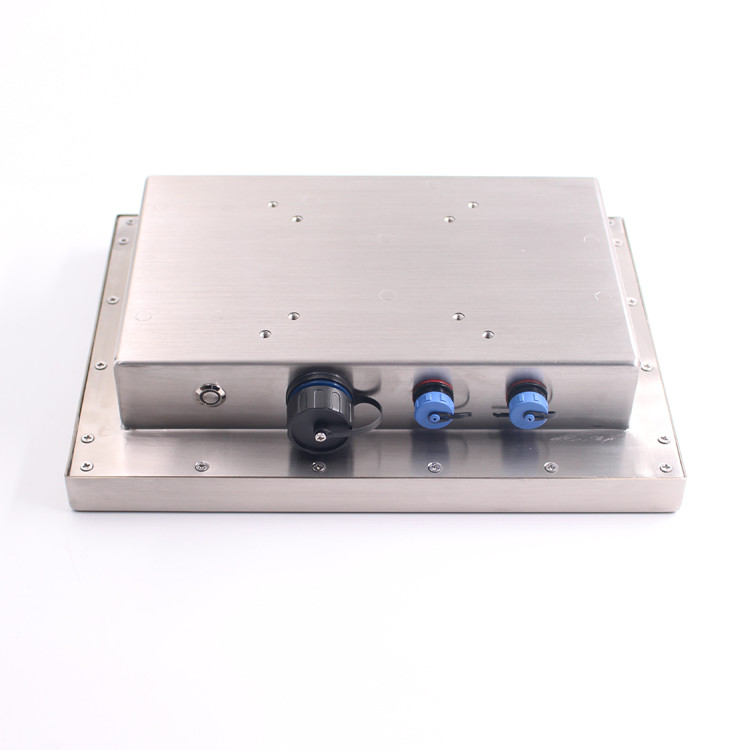

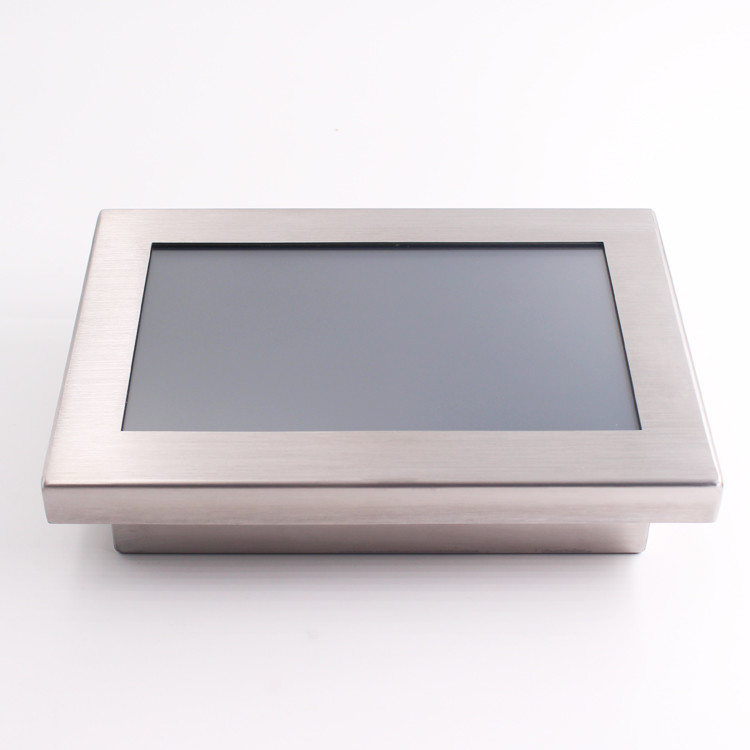

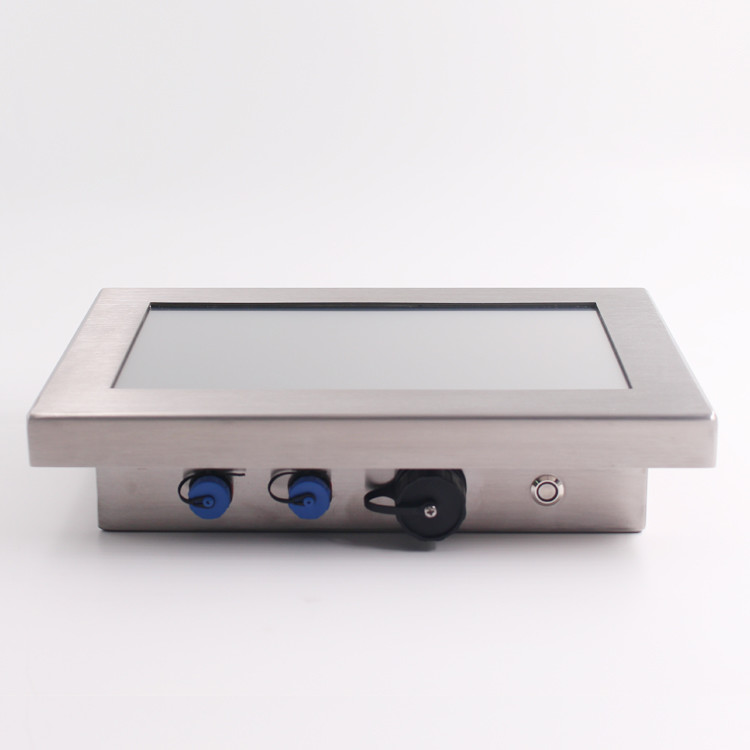

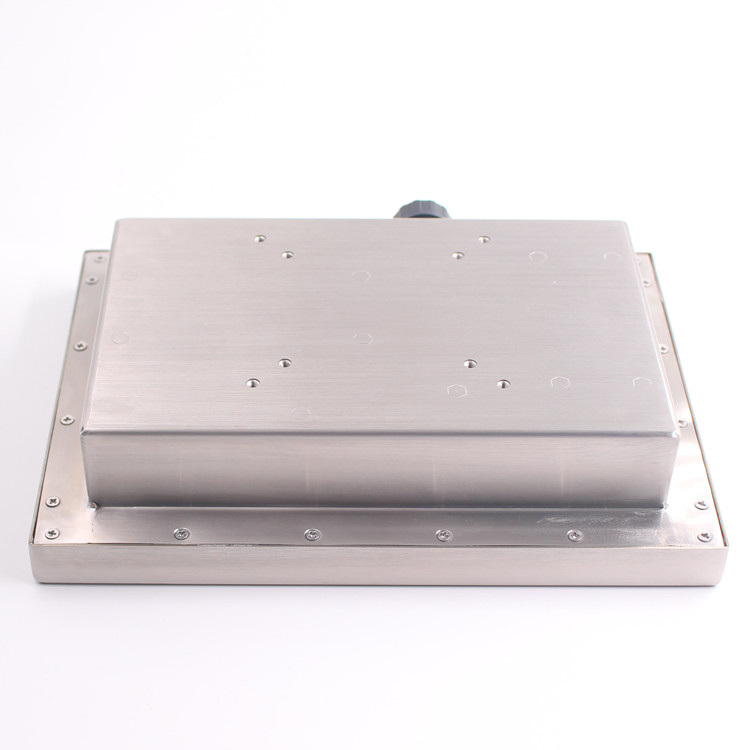

Detailed Image
Industrial monitor Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
