VESA 1024x768 Resistive Rugged Touch Monitor IP65 FCC For Kiosk

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: CE,RoHS, FCC
Model Number: IND080M
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 3.5kgs/pc, packing size: 31×31×10.5cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: 8'' Embedded Monitor Resolution: 1024*768
Touchscreen: Resistive Touch Screen Port: HDMI, VGA, USB
Material: Aluminum+Metal Warranty: 12months
High Light:

VESA Resistive Rugged Touch Monitor


1024x768 Resistive Rugged Touch Monitor


FCC Waterproof Panel Mount Monitor

Product Description


     Industrial-grade 8 inch TFT LCD with LED backlight and resistive touchscreen. Material of full housing is Aluminum Alloy, extremely firm, front bezel is 3mm, and provides many industrial grade features such as seamless chassis, VESA mounting flexiblity.



1. 8-inch Industrial Resistive Touch monitor

2. Industrial LCD panel, wide viewing angle, high nits, true color


3. I/O: 1*USB for touch use, 1*VGA, 1*HDMI


4. Front IP65 waterproof


5. Aluminum metal Sturable rugged enclosure which is for harsh environment


6. Embedded mount with mount clamps



LCD Panel Characteristics Screen Size 8-inch LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 350cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec


I/O Interface

USB 1x USB for touch use
VGA yes
DVI -----
Function front IP65 waterproof
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12VDC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Aluminum+Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Detailed Image

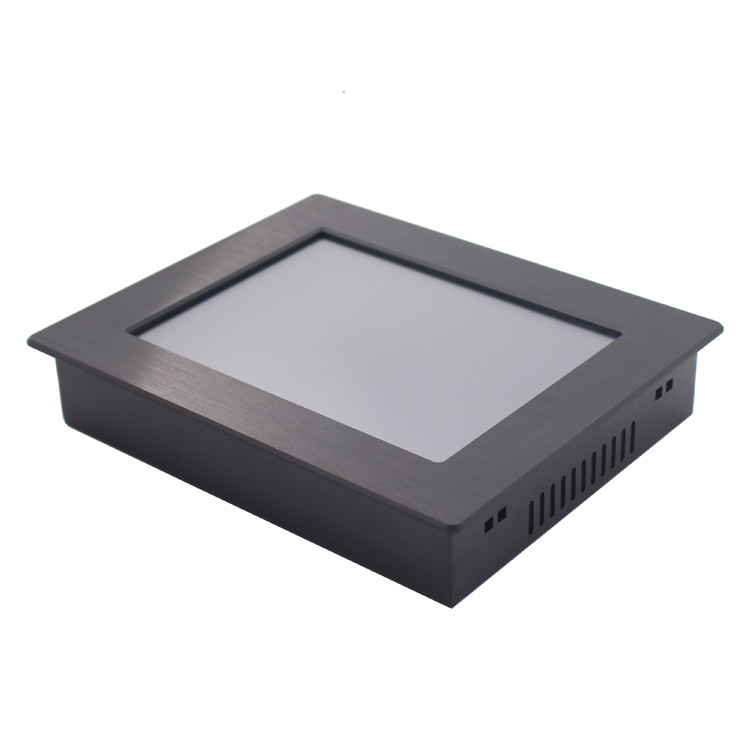

VESA 1024x768 Resistive Rugged Touch Monitor IP65 FCC For Kiosk 0


Industrial plant

Oil, Gas and Chemicals Industrial

Animal Feed Production Facility

CNC Control Panel

Rugged Environment Application

Food & Beverage Processing Instrument

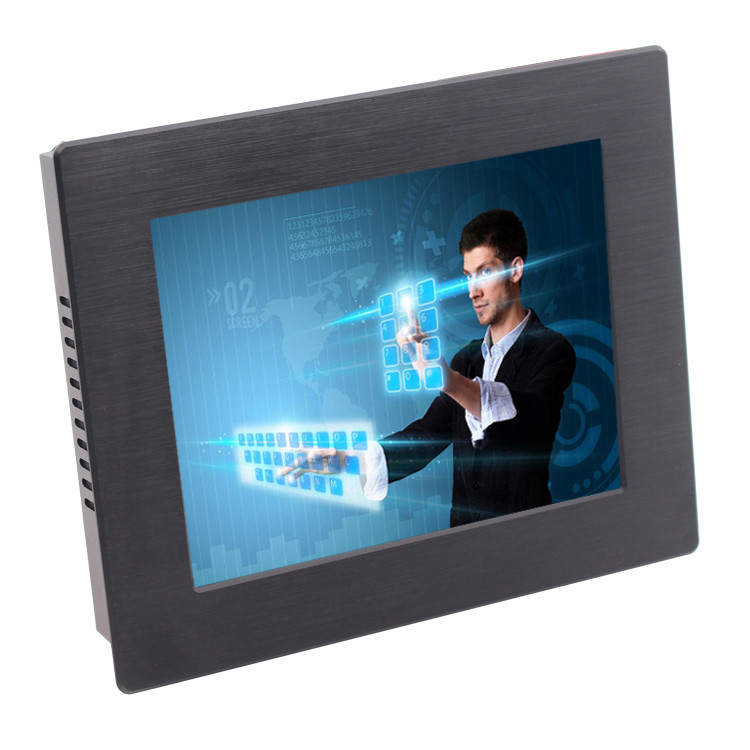

VESA 1024x768 Resistive Rugged Touch Monitor IP65 FCC For Kiosk 1


Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

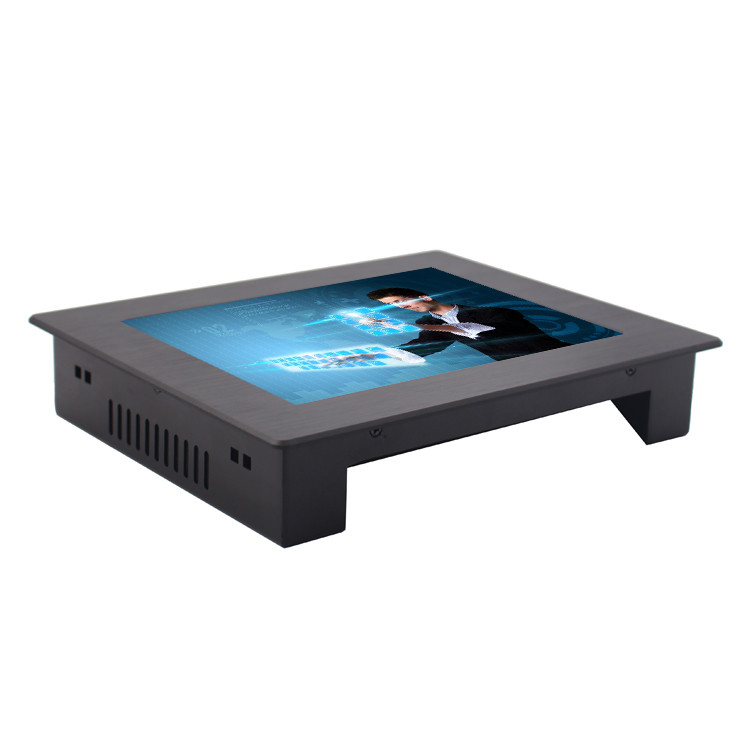

VESA 1024x768 Resistive Rugged Touch Monitor IP65 FCC For Kiosk 2


 INNODA have at least 10years experienc in industrial computer&monitor filed. With own desinger and electric engineers, which can make customized products as you want. Our products have spread over the world, panel pc, monitor, android tablet use for automation system, boat, kiosk....
