VESA 10.1 Inch Capacitive Touch Monitor Metal Case 24VDC
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODAPC |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND101M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 3.5kgs/pc, packing size: 31×31×10.5cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
|
Detail Information |
|||
| Type: | 10.1-inch Metal Monitor | Resolution: | 1280*800 |
|---|---|---|---|
| Touchscreen: | Capacitive Touch Screen | Port: | HDMI, VGA, COM |
| Material: | Metal | Warranty: | 12months |
| High Light: | 10.1 Inch Capacitive Touch Monitor,VESA Capacitive Touch Monitor,24VDC Capacitive Touch Displayer |
||
Product Description
Features
1. 10.1'' IPS Lcd Monitor
2. Industrial LCD panel, wide viewing angle, high nits, true color
3. Com port for touch use
4. 9-36V wide voltage built-in
5. Metal Sturable rugged enclosure which is for harsh environment
Configurations
| LCD Panel Characteristics | Screen Size | 10.1-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1280(H)x800(V) | |||
| Aspect Ratio | 16:9 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
I/O Interface |
USB | ----- | ||
| HDMI | Yes | |||
| VGA | yes | |||
| Com | 1xCom port for touch use | |||
| Function | 24V wide voltage power | |||
| Mounting type | VESA 75/100mm | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

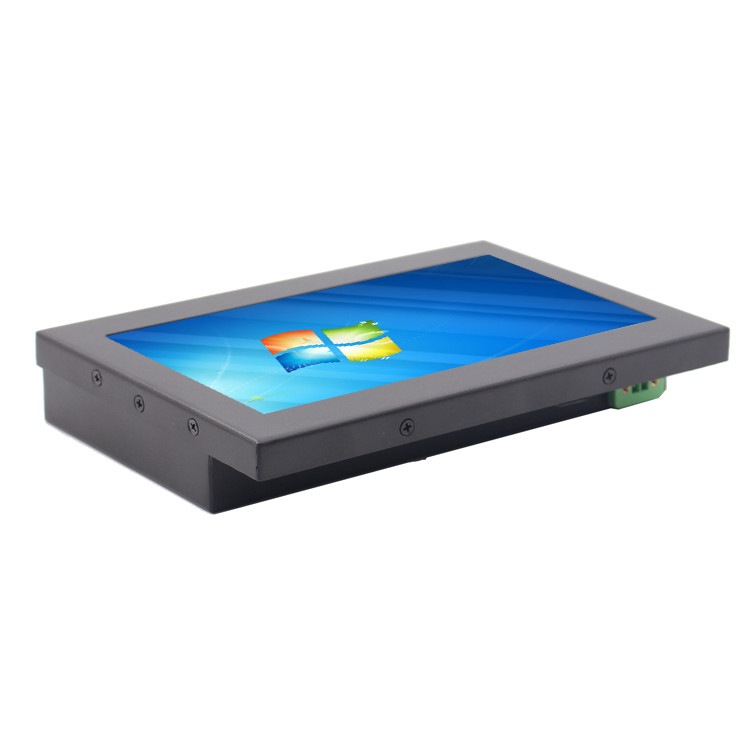

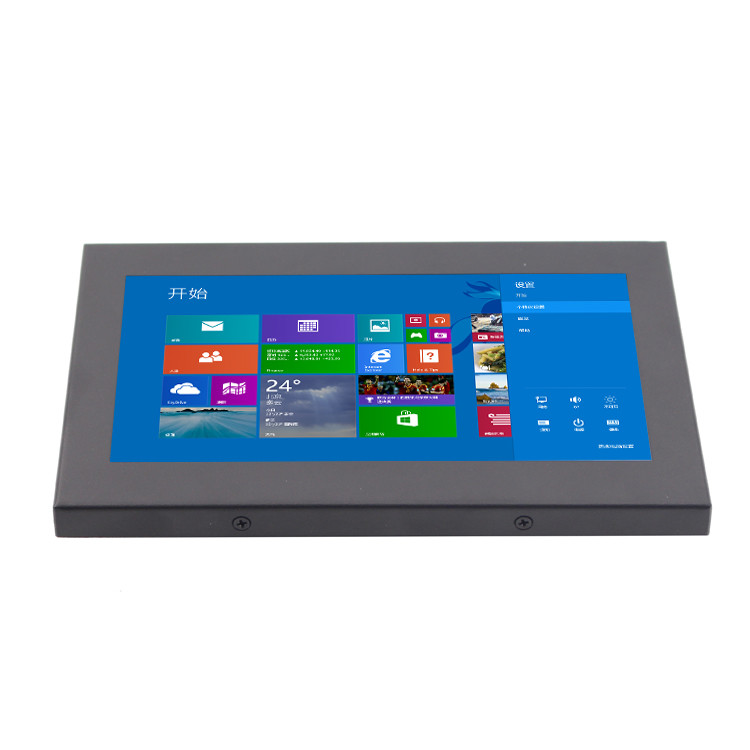

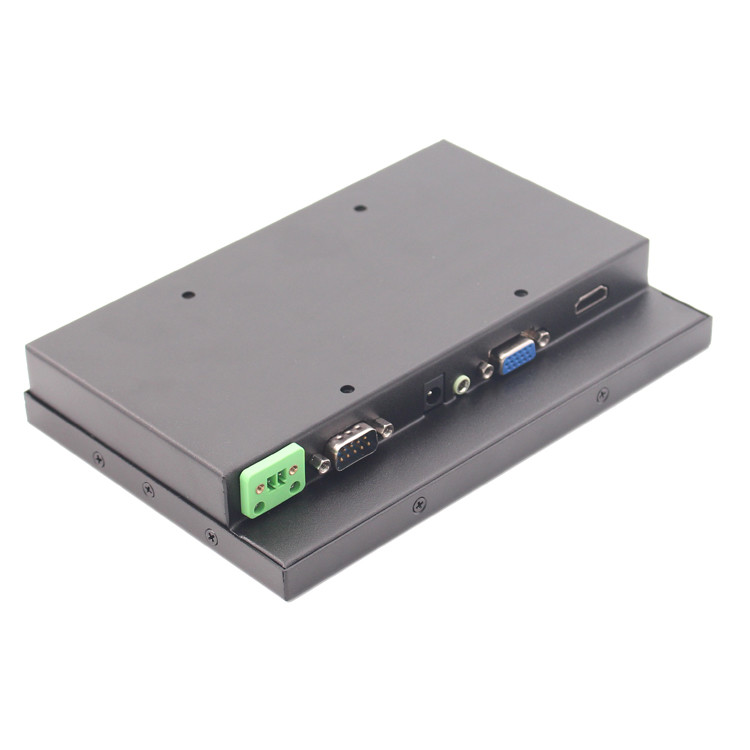

Detailed Image
Application
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
INNODA have at least 10years experienc in industrial computer&monitor filed. With own desinger and electric engineers, which can make customized products as you want. Our products have spread over the world, panel pc, monitor, android tablet use for automation system, boat, kiosk....
