AR Glass IPS LCD Embedded Touch Panel Pc Intel Core I5 CPU 10.1 Inch VESA
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND101PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 4kgs/pc, packing size: 31×31×10.5cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
|
Detail Information |
|||
| Type: | Embedded Touch Panel Pc | Size: | 10.1inch IPS LCD Panel |
|---|---|---|---|
| Touchscreen: | Capacitive Touch Screen | CPU: | Intel Core I5-4200U |
| System: | Windows 7/10(trial Version) / LInux / Ubuntu | Material: | Aluminum Alloy |
| WIFI: | 2.4G WIFI Built-in | I/O Port: | USB, COM, Rj45, VGA, HDMI |
| High Light: | IPS LCD Embedded Touch Panel Pc,AR Glass Embedded Touch Panel Pc,VESA Embedded Industrial Pc |
||
Product Description
Intel Core I5 CPu 10.1inch IPS LCD Industrial Embedded Touch Panel Pc WIFI Integrated
Features
1.10.1 inch tft/ led panel pc with 1280*800 resolution
2. Capacitive touchscreen
3. Intel core i5-4200U processor

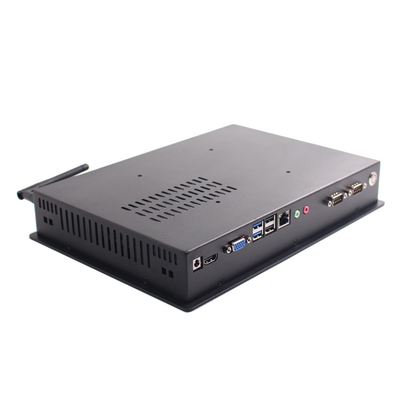

4. 4*USB, 2*COM, 1*RJ45, 1*HDMI, 1*VGA
5. Aluminum Alloy enclosure
Configuration
| INNODAPC Processor System | CPU | Intel Core I5-4200u | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 10.1’’ LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1280(H)x 800(V) | ||
| Aspect Ratio | 16:10 | ||
| Brightness | 300cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2 x COM | |
| USB | 4xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| VGA | Yes | ||
| Function | Front IP65 | ||
| WIFI | |||
| Optional | AG / AR glass | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
