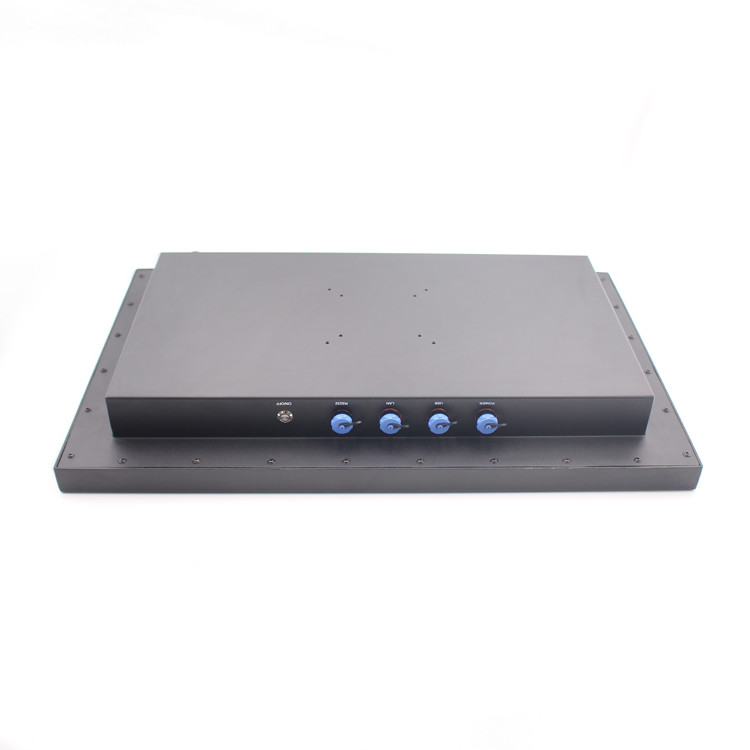

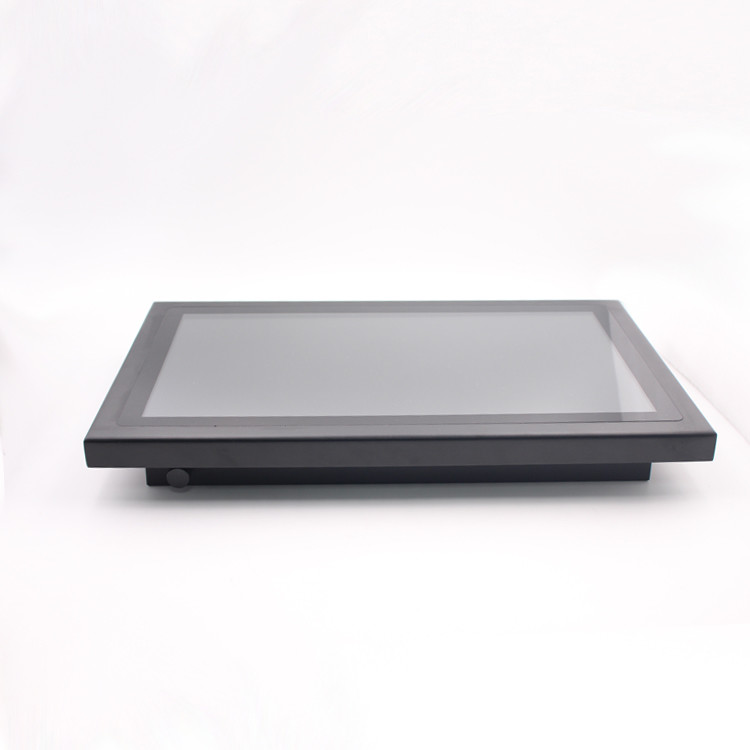

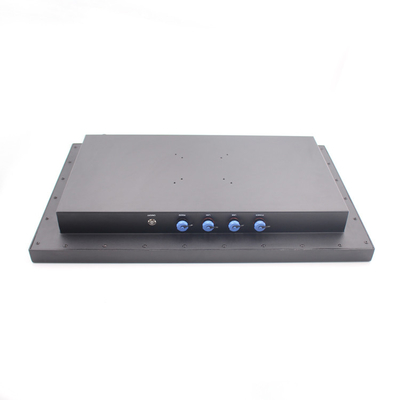

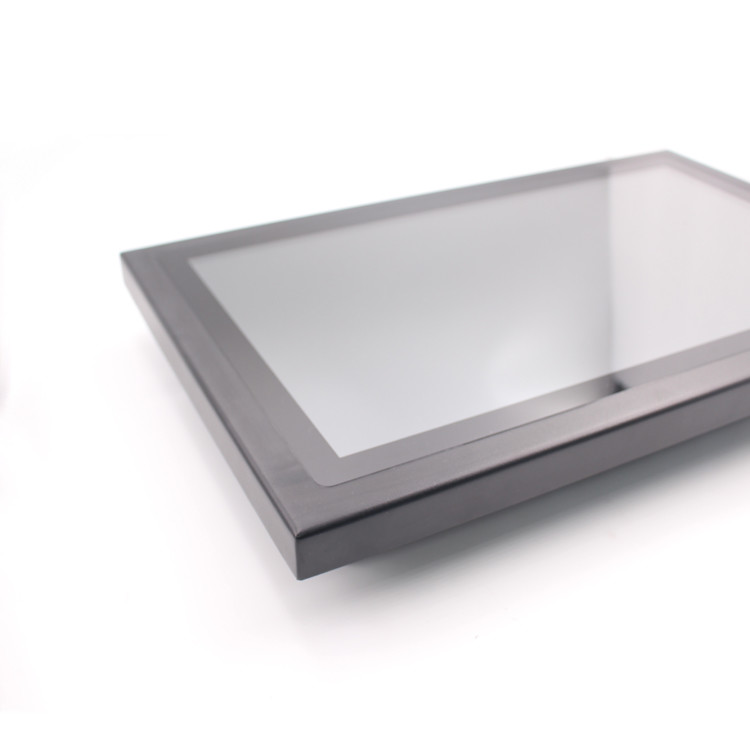

PoE Powered 1080P Android Touch Panel Pc 21.5-Inch Size Waterproof Computer
Features
1. 21.5inch lcd panel with 1920*1080 full resolution
2. Rockchip RK3399 Processor low power consumption
3. IP Grade: Full IP65 /67/69
4. I/O: 2*USB, 1*RJ45, 1*DC jack, 1*RS232
5. WIFI with waterproof Antenna
6. PoE
This 21" industrial panel PC is made of complete metal,with true flat front bezel. Fully sealed waterproof IP65 with
Various water-tight IO Cables included. Anti-stealing plate for interface. We adopts EETI touch solution, which means you can touch it with wet fingers. It's the best choice for wet locations such food processing line, car washing shop, agricultural industry, etc.
Configuration
Processor System | CPU | RK3399 | |
Memory | 2GB/4GB | ||
Storage | 16G EMMC(8G/16G/32G optional) | ||
Operation System | Android 6.0/7.0/8.0 | ||
LCD Panel Characteristics | Screen Size | 21.5-inch Lcd Panel | |
Touchscreen Type | Capacitive touch screen | ||
Resolution | 1920(H)x 1080(V) | ||
Aspect Ratio | 16:9 | ||
Brightness | 250nits | ||
Contrast Ratio | 500:1 | ||
Response Time | 10 msec | ||
I/O Interface | PoE | it support 802.3af and 802.3at.(Optional) | |
USB | 2xUSB2.0 | ||
LAN | RJ45 as PoE power supply | ||
COM | RS232 | ||
Function | Full IP65 | ||
WIFI | |||
Optional | AG glass | ||
UV Protect | |||
sunlight readable | |||
waterproof | |||
Brightness control button | |||
Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
Accessories | 8A Power Adapter with cable | ||
Working Temperature | -20~70° C | ||
Other Information | Material | metal | |
Color | Black/Silver/White | ||
Mounting | Wall mount/ Panel mount |
Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
