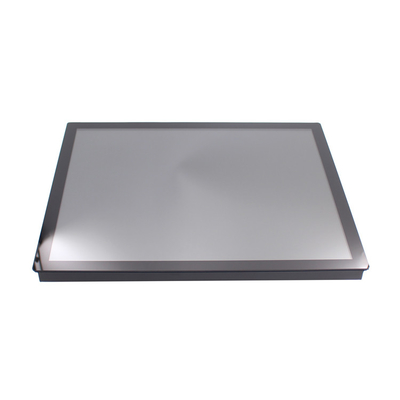

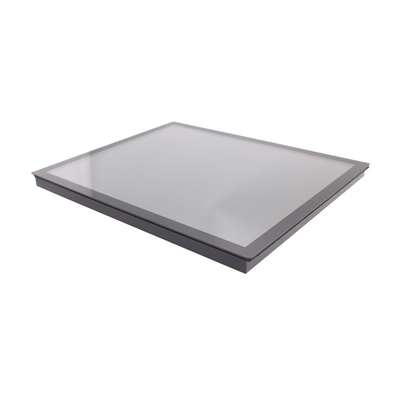

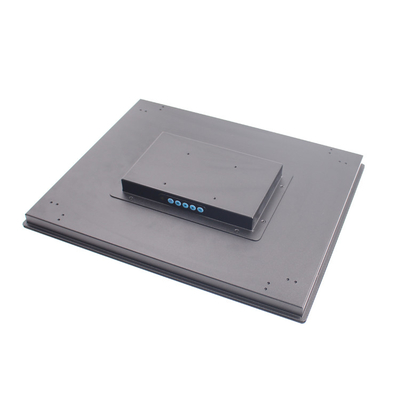

1000cd/M2 19 Inch LCD Touch Monitor HMI For Water Supply Control Cabinet

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: CE,RoHS, FCC
Model Number: IND190M
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 6.3kgs/pc, packing size: 50×14×44cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: Touch Monitor Size: 19inch Lcd Panel
Resolution: 1280*1024 Material: Metal
Aspect Ratio: 4:3 Contrast Ratio: 800:1
High Light:

1000cd/M2 LCD Touch Monitor

,

19Inch LCD Touch Monitor

,

HMI Touch Screen Monitor


Product Description

1000cd/M2 Brightness 19-Inch Customized 10points Touch Monitor For Cabinet

Features of lcd monitors

--- 19inch TFT Lcd panel

--- 1000nits high brightness which can read under sunlight

--- Glass surface + metal rear case


Configurations of touch monitor

LCD Panel Characteristics Screen Size 19-inch LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1280(H)x 1024(V)
Aspect Ratio 4:3
Brightness 1000cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec


I/O Interface

USB 1x USB for touch use
HDMI yes
VGA yes
DVI optional
Function Sunlight readable  front panel control button
Mounting type VESA 75/100mm
Optional full wateproof  High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operating Temperature 0~60° C/-20-70C(optional)



Customization of touch monitor

size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound


Application of touch monitor
1. Industry line-automated production equipment

2. HMI interface

3. water supply control cabinet



Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
