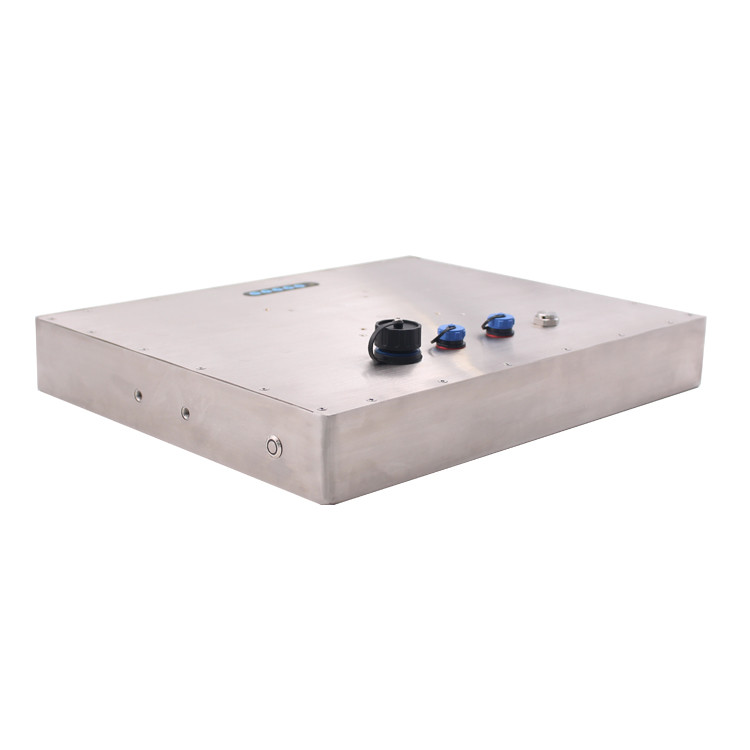

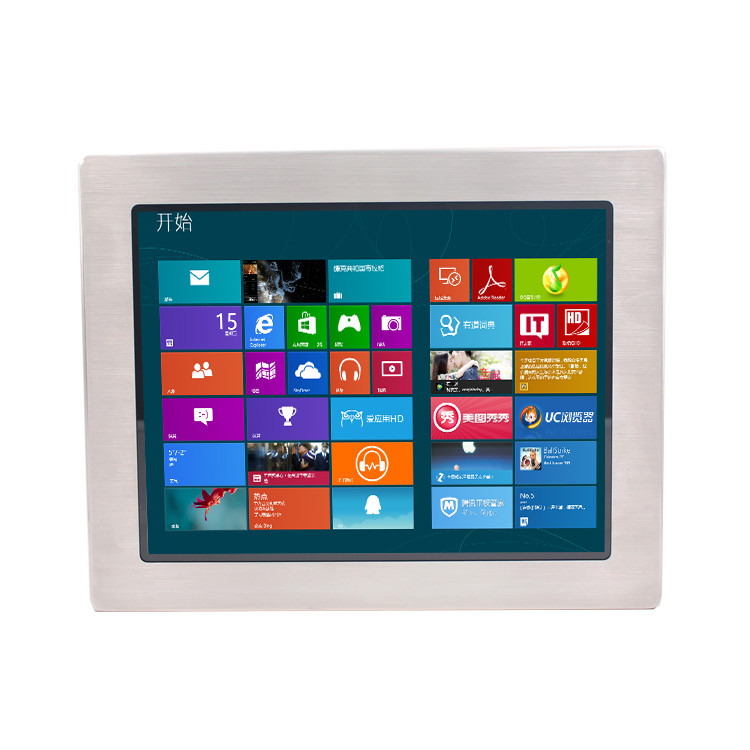

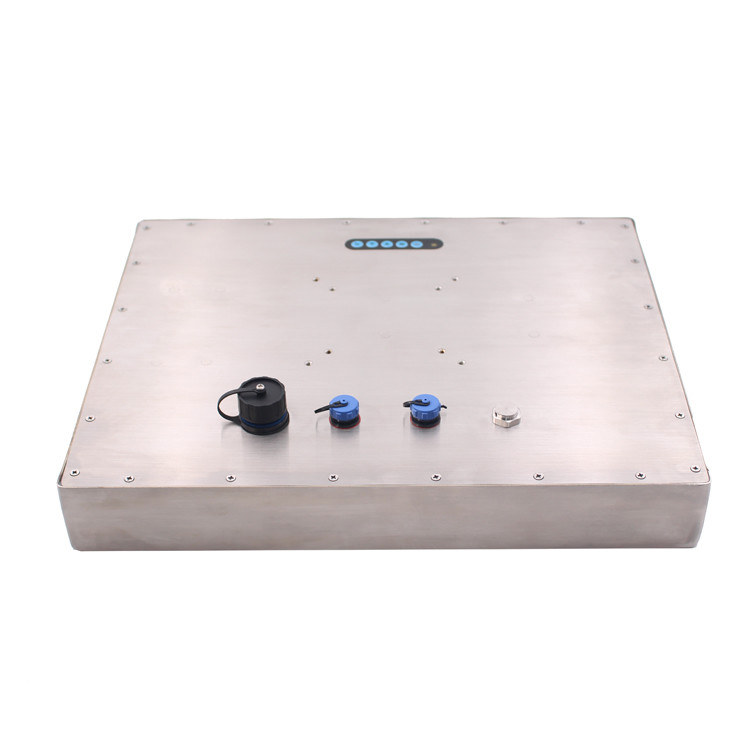

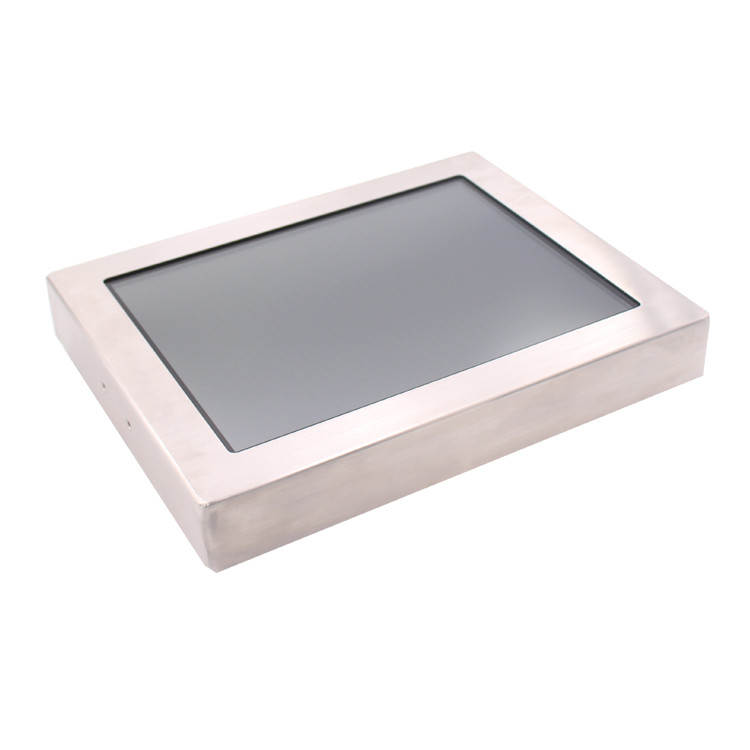

Resistive 17 Inch IP65 Touchscreen Monitor Stainless Steel Waterproof HDMI Port
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODAPC |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND170M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 5kgs/pc, packing size: 48×14×33.5cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
|
Detail Information |
|||
| Type: | IP65 Waterproof Monitor | Touch Type: | Resistive Touch Screen |
|---|---|---|---|
| Brightness: | 350cd/m2 | Mount Type: | VESA |
| High Light: | Resistive ip65 touchscreen monitor,17 Inch ip65 touchscreen monitor,Stainless Steel ip65 industrial monitor |
||
Product Description
Resistive 17-Inch Stainless Steel Waterproof Display HDMI Port
Features of waterproof display
--- 1280*1024 Resolution Lcd panel
--- 350 nits, if need sunlight readbale can do 1000nits
--- fully sealed waterproof IP65
Configurations of waterproof display
| LCD Panel Characteristics | Screen Size | 17-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1280(H)x 1024(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
| USB | 1x USB for touch use | ||
| HDMI | yes | |||
| VGA | ---- | |||
| DVI | optional | |||
| Function | Full IP65 | |||
| Mounting type | VESA 75/100mm | |||
| Optional | full wateproof | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | stainless steel(Aluminum/metal for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operating Temperature | 0~60° C/-20-70C(optional) | |||
Customization of waterproof display
7'' 8'' 10'' 12'' 15'' 19'' 22'' all can choose
Sunlight readbale
9-36V wide voltage
Application of waterproof display
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
Waterproof Monitor which have excellent work performane.It offers rich of interface to meet csutomers needs.
Fully sealed IP65/67/68 waterproof which is widly used for kitchen,food industry, boat...etc
