| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODAPC |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND121M |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 3.5kgs/pc, packing size: 41×15×35.5cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
| Type: | Industrial Touch Screen Monitors | Touch Controller: | Penmount |
|---|---|---|---|
| Port: | COM, DVI, HDMI | Color: | Black / White / Slivery...etc |
| High Light: | DC 24V Industrial Touch Screen Monitors,Penmount controller Industrial Touch Screen Monitors,350nits industrial touch monitor |
||

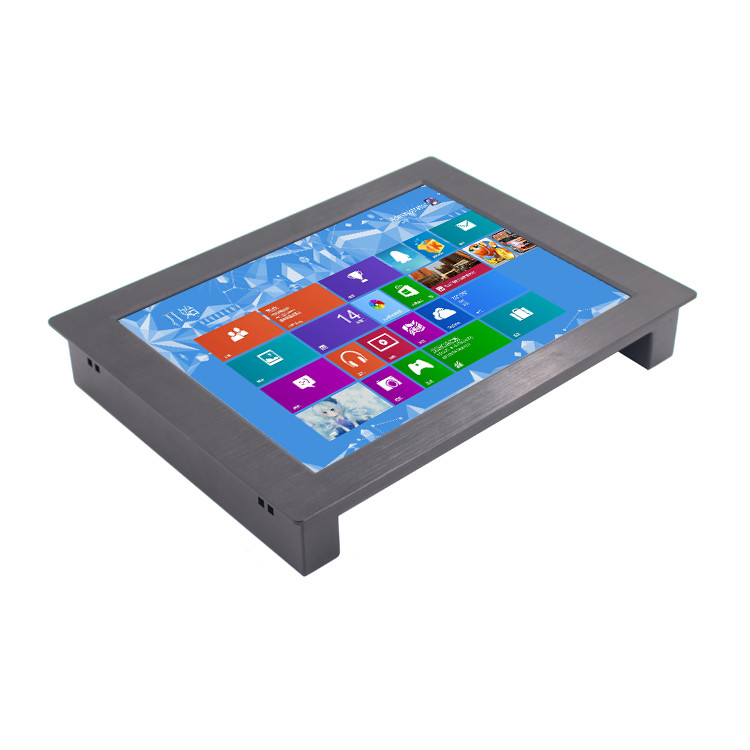

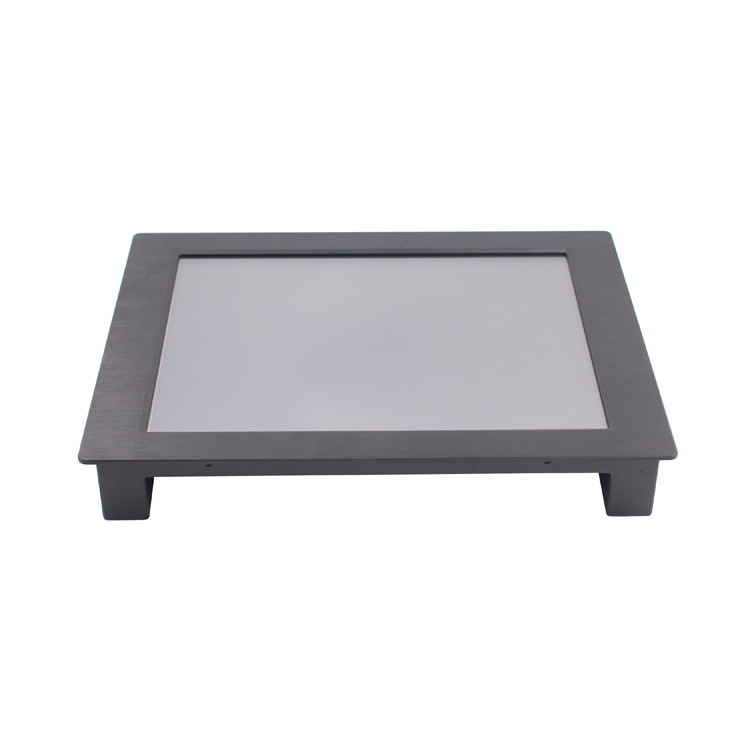

DC 24V Power Supply Industrial Touch Screen Monitors Support Windows Computer
Features of industrial touch screen monitors
1. 12.1inch industrial grade panel with 1024*768 resolution
2. 350nits birghtness, sunlight readable optional
3. Com port for touch use
Configurations of Industrial touch screen monitors
| LCD Panel Characteristics | Screen Size | 12-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1024(H)x768(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 350cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|

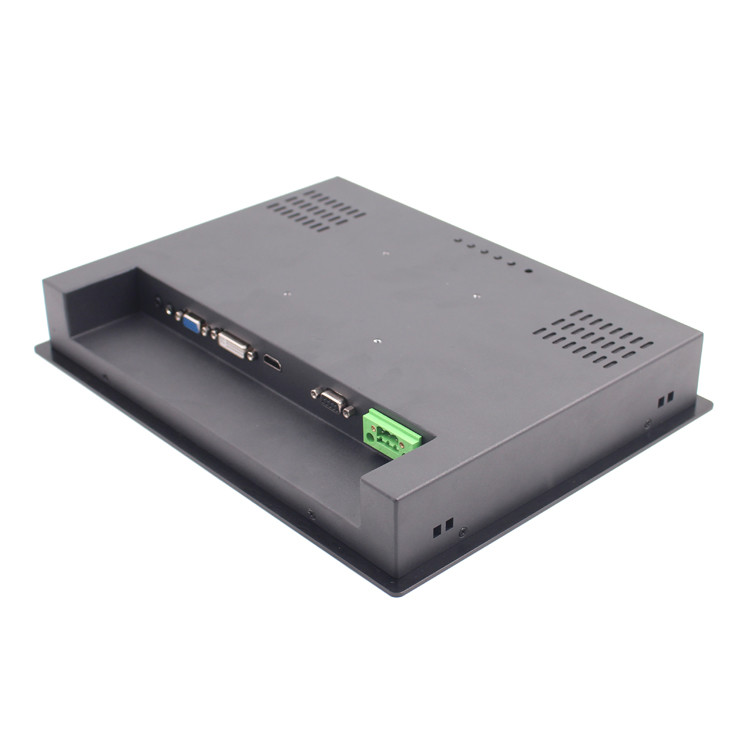

I/O Interface |
COM | 1x COM for touch use | ||
| HDMI | yes | |||
| VGA | yes | |||
| DVI | Yes | |||
| Function | 9-36Vwide voltage | |||
| Mounting type | VESA 75/100mm | |||
| Optional | body sensor | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 24 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Aluminum(metal/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operating Temperature | 0~60° C/-20-70C(optional) | |||
Application of industrial touch screen monitors
Intelligent Fab Automation
HMI system
Self-service pay station
Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
