Open Frame Metal Bezel Rugged Panel PC IP67 For Kiosk
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND101PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 4.5kgs/pc, packing size: 45×35×12cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
|
Detail Information |
|||
| Type: | Rugged Panel Pc | RAM: | 4G DDR3 Wide Temperature -40-80C |
|---|---|---|---|
| Hard DIsk: | 32G SSD Wide Temperature -40-80C | Webame: | HD Camera Which Can Work In -40-70C |
| Material: | Metal | IP Grade: | Full IP67 |
| Working Temperature: | -30-70C | Color: | Black / White / Slivery...etc |
| High Light: | Metal Bezel Rugged Panel PC,IP67 waterproof Rugged Panel PC,IP67 kiosk panel pc |
||
Product Description

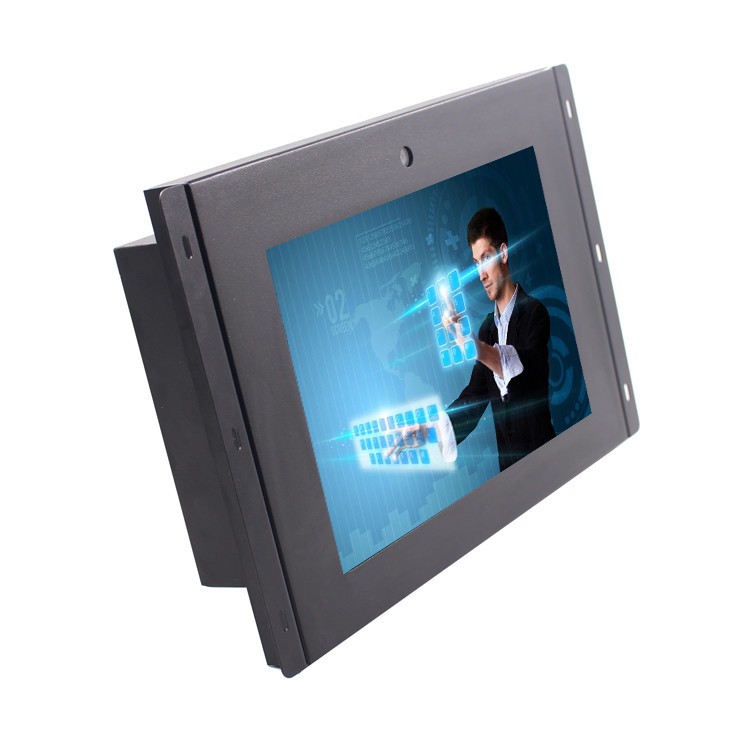

10-Inch Open Frame Metal Bezel Rugged Panel Pc / Waterproof All In One Pc For Kiosk
Features
1. 10.1inch Industrial Touch Panel pc
2. 10points capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. 1280*800 Resolution Industrial grade lcd panel
4. High performance motherboard, 7x24 continuous operation
5. -40-70C Wide temperature 5MP webcam built-in
6. -40-80C wide temperature RAM and SSD
7. Fully sealed waterproof IP67
8. Open frame design for cabinet, kiosk installation
| Processor System | CPU | Intel Quad core J1900/2.0 GHz | I/O Port | COM | 1 x RS232(RS485/RS422) | ||||||
| Memory | 2GB (up to 8G) | USB | 3 x USB2.0, 1xUSB3.0 | ||||||||
| Storage | 32G SSD(up to 1TB) | LAN | 1 x RJ45, 10/100/1000 Mbps | ||||||||
| Operation System | WIndows 7/8/10 OS(trial version) | VGA | --------- | ||||||||
| LCD Panel Characteristics | Size | 10.1’’ LED Panel,16:9 (7-22'' option) | HDMI | -------- | |||||||
| Touchscreen Type | Capacitive touch screen/Resistive / IR /SAW | Function | -40-70C wide temperature Webcam | ||||||||
| -40-80C wide temperature SSD | |||||||||||
| -40-80C wide temperature RAM | |||||||||||
| Full IP67 waterproof | |||||||||||
| Brightness | 350cd/m2 | Optional | 1000nits high brigthness for sunlight | ||||||||
| Resolution | 1280(H)x800(V) | 9-36V wide voltage | |||||||||
| Other Information | Power supply | 110V-240V, 12V DC Input | IP65 / IP66 /IP67 Waterproof | ||||||||
| Working Temperature | -30-70℃ | Mounting | 75*75/100*100mm VESA / Embedded | ||||||||
| Cooling System | Fanless or with Fan | Enclosure | Metal/Aluminum/Stainless Steel (optional) |
||||||||
Detailed Image
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.Waterproof panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
ODM / OEM acceptable.
