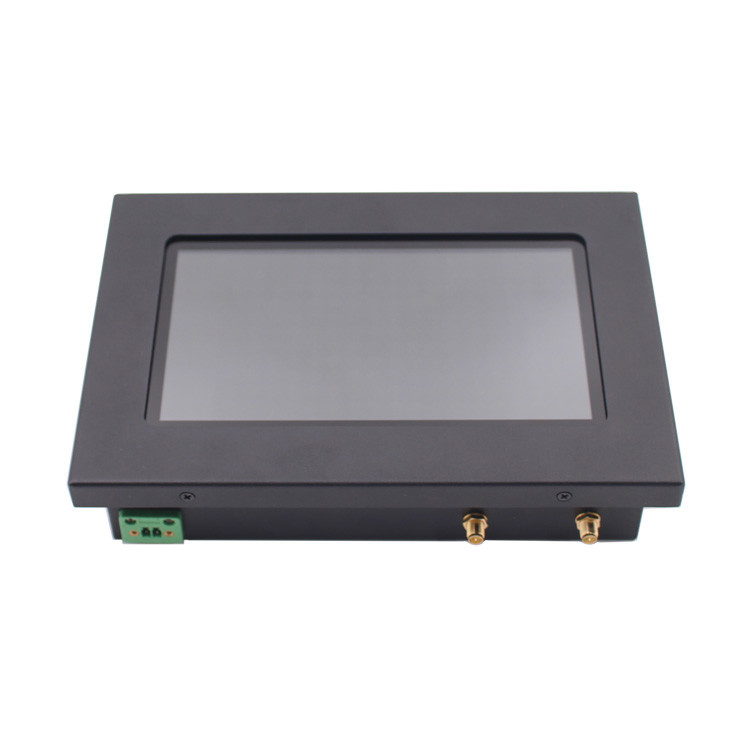

7inch Metal Case DC 24V Rugged Industrial Computers With DB9 COM
Features of industrial panel pc touch screen
1. 500cd/m2 brightness
2. Intel j1900/2.0GHz processor
3. windows 10 os(trial version)
4. Metal case
Configuration of rugged industrial computers
|
Computer Configurations of rugged industrial computers |
|||
|
CPU |
Intel celeron J1900/2.0GHz |
||
|
Memory |
2GB to 8GB, DDR4 |
||
|
Built-in Storage |
32G/64G/128G/1TB SSD |
||
|
Operation System |
win7/8/10,linux, ubuntu |
||
|
Power Supply |
12V DC power |
||
|
Operating Temperature |
-20~70° C |
||
|
LCD Panel Charateristics |
|||
|
Screen Size |
7'' industrial grade Panel |
||
|
Touchscreen Type(optional) |
10points Capacitive Touch |
||
|
Resoltuion |
1024(H)*(RGB)* 600 (V) |
||
|
Aspect Ratio |
16:9 |
||
|
Brightness |
500cd/m2 |
||
|
View Angle |
80x80(H),80x80(V) |
||
|
Contrast Ratio |
700:1 |
||
|

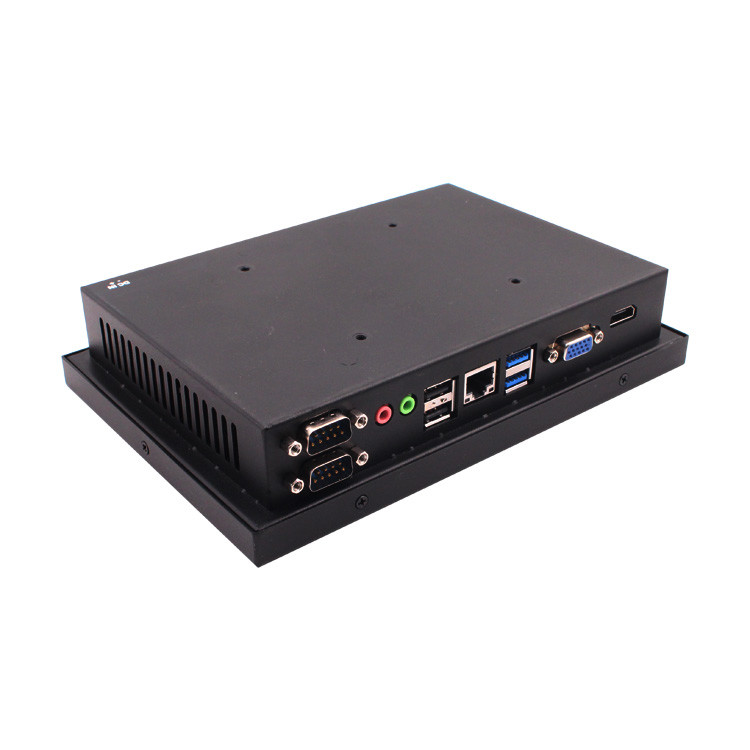

I/O Interface |
|||
|
4 x USB2.0(up to 6) |
1xLAN(RJ45) |
||
|
VGA |
2xCOM(RS232/RS485/RS422) |
||
|
HDMI |
|||
|
Functions |
|||
|
WIFI |
9-36V wide voltage |
||
|
Other Information |
|||
|
Frame Material |
Metal case/Aluminum Alloy/Stainless Steel |
||
|
Sheel Process Technic |
Powder coated/Wire Drawing/CNC craft |
||
|
VASA Mounting |
75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount |
||
|
Color |
Default balck,also can choose white,silvery or other colour |
||
|
Product Dimension(LxWxH) |
TBD |
||
|
Packing Dimension(LxWxH) |
TBD |
||
Features
1. Available cpu
Intel J1900 / J3160 / I3/ I5 / I7
2. Optional touchscreen
PCAP touchscreen / Resistive touch / IR touch
3. WIFI built-in
4. Modern design avaliable
Innoda have own designer, which can make unique machine just for you
5. Material of the goods
Aluminum / Metal / Stainless Steel / ABS
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
