seamless High Sensitive 10 Points Rugged Panel PC
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND101PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 4kgs/pc, packing size: 44×37×17cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
|
Detail Information |
|||
| Type: | Customized Rugged Panel Pc | Aspect Ratio: | 16:10 |
|---|---|---|---|
| Resolution: | 1280*800 | CPU: | Intel Quad-core J1900 |
| IP Grade: | Front Panel IP65 | WIFI: | Built-in |
| Warranty: | 1year | Material: | Aluminum Alloy+Metal |
| High Light: | 10 points Rugged Panel PC,Seamless Rugged Panel PC,Seamless rugged industrial pc |
||
Product Description
10points Pcap Touchscreen Rugged Panel Pc Front IP65 fanless deisgn
Features
1. Fanless design, interface with sealled cap the whole PC is dustproof.
2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz/ I3/ I5/ I7 cpu | |
| Memory | 4GB (up to 8G) | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 10.1’’ Lcd Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
| Resolution | 1280(H)x800(V) | ||
| Aspect Ratio | 16:10 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 1*RS232(RS485/RS422 optional) | |
| USB | 2xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| VGA | ------- | ||
| Optional | WIFI | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||

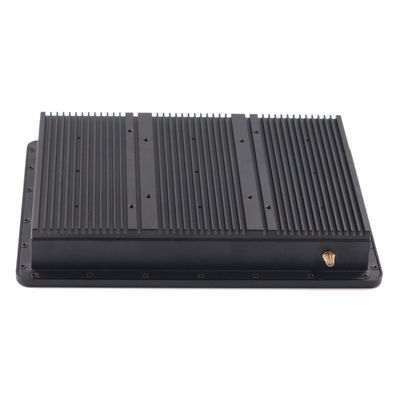

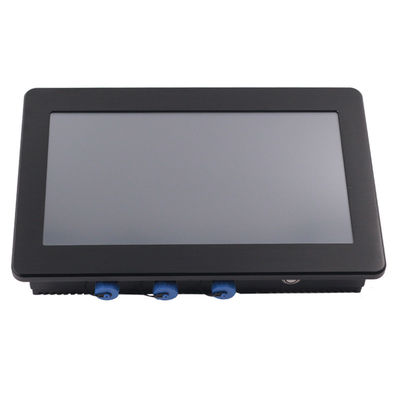

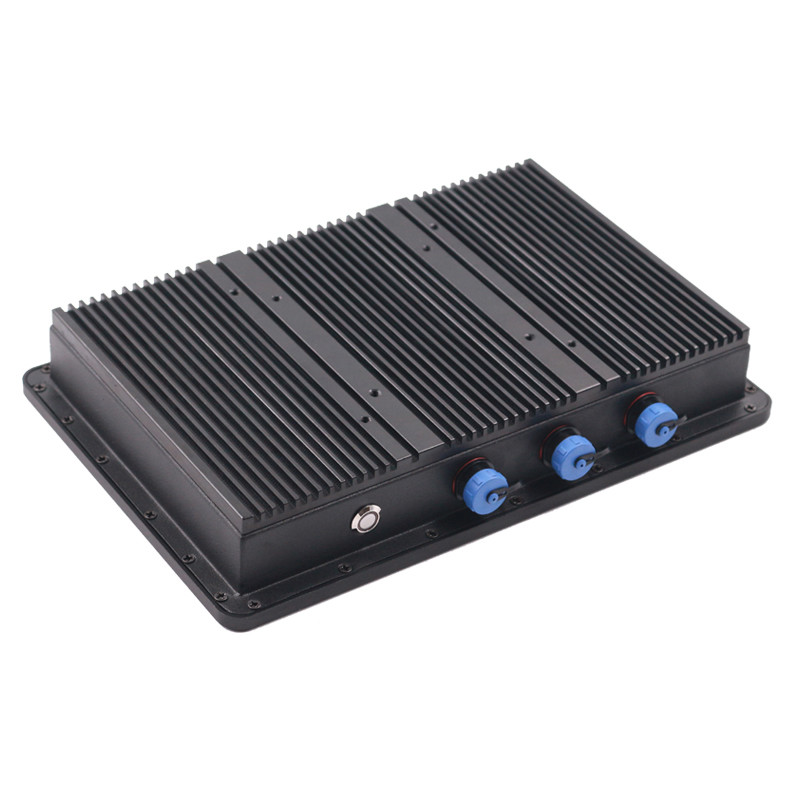

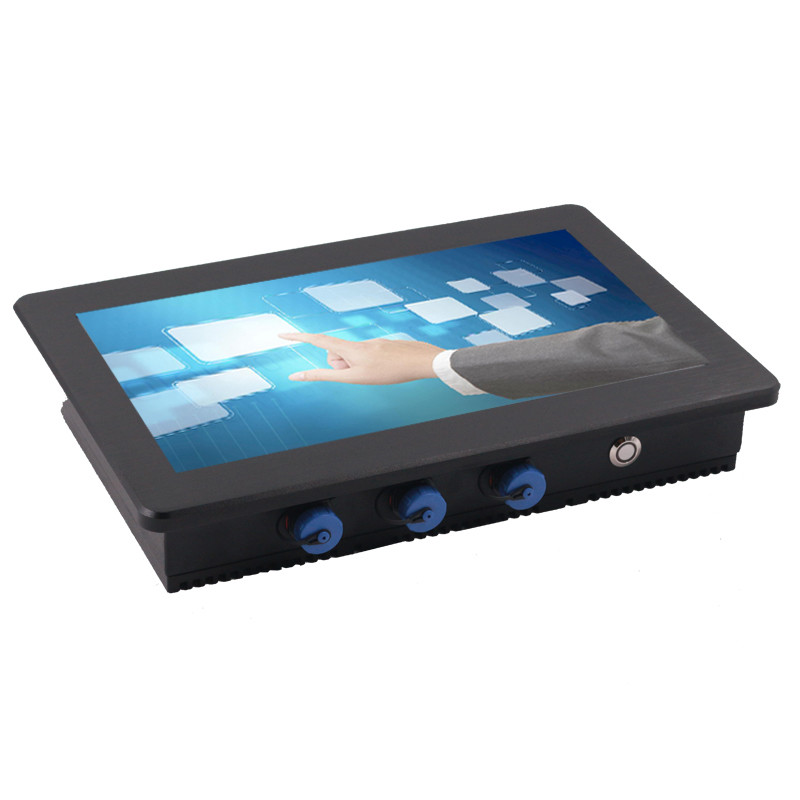

Detailed Image
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
With own designer and electric engineers, customation products is oaky for us.
