Dustproof Embedded Rugged Panel Pc 11inch 24v Wide Voltage fanless AIO
Features
1. 11.6inch Industrial Touch Panel pc
2. 10points capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. 9-36V wide voltage
4. High performance motherboard, 7x24 continuous operation
5. Front aluminum bezelTrue Flat panel
| Processor System | CPU | Intel Quad core J1900/2.0 GHz | I/O Port | COM | 1 x RS232(RS485/RS422) | ||||||
| Memory | 2GB (up to 8G) | USB | 3 x USB2.0, 1xUSB3.0 | ||||||||
| Storage | 32G SSD(up to 1TB) | LAN | 1 x RJ45, 10/100/1000 Mbps | ||||||||
| Operation System | WIndows 7/8/10 OS(trial version) | VGA | 1 x VGA | ||||||||
| LCD Panel Characteristics | Size | 11.6’’ LED Panel,16:9 (7-22'' option) | HDMI | -------- | |||||||
| Touchscreen Type | Capacitive touch screen/Resistive / IR /SAW | Function | 9-36V wide voltage | ||||||||
| Brightness | 350cd/m2 | Optional | 1000nits high brigthness for sunlight | ||||||||
| Resolution | 1920(H)x1080(V) | GPIO | |||||||||
| Other Information | Power supply | 110V-240V, 12V DC Input | IP65 / IP66 /IP67 Waterproof | ||||||||
| Working Temperature | -20-70℃ | Mounting | 75*75/100*100mm VESA / Embedded | ||||||||
| Cooling System | Fanless or with Fan | Enclosure | Metal/Aluminum/Stainless Steel (optional) |
||||||||

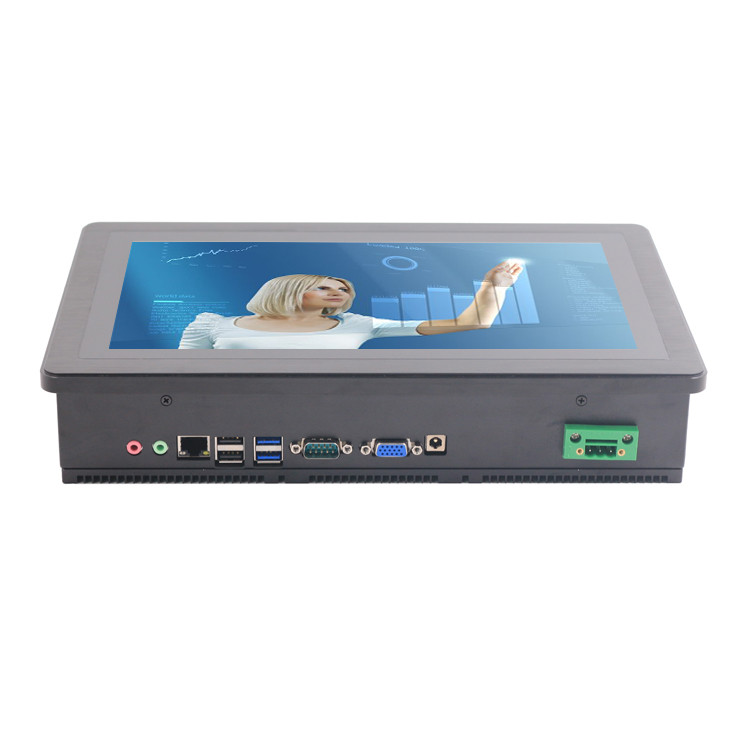

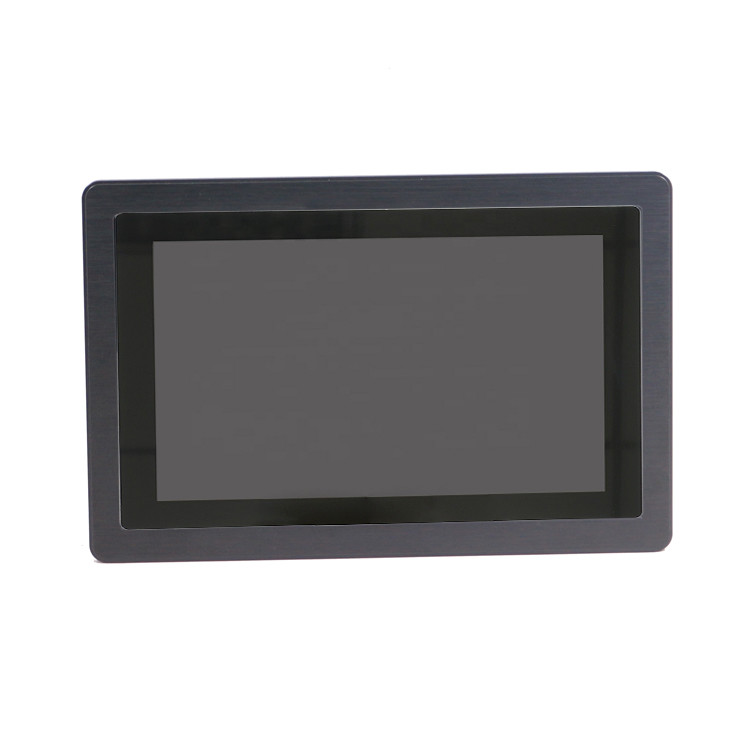

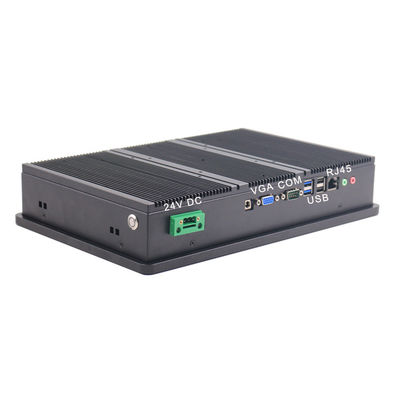

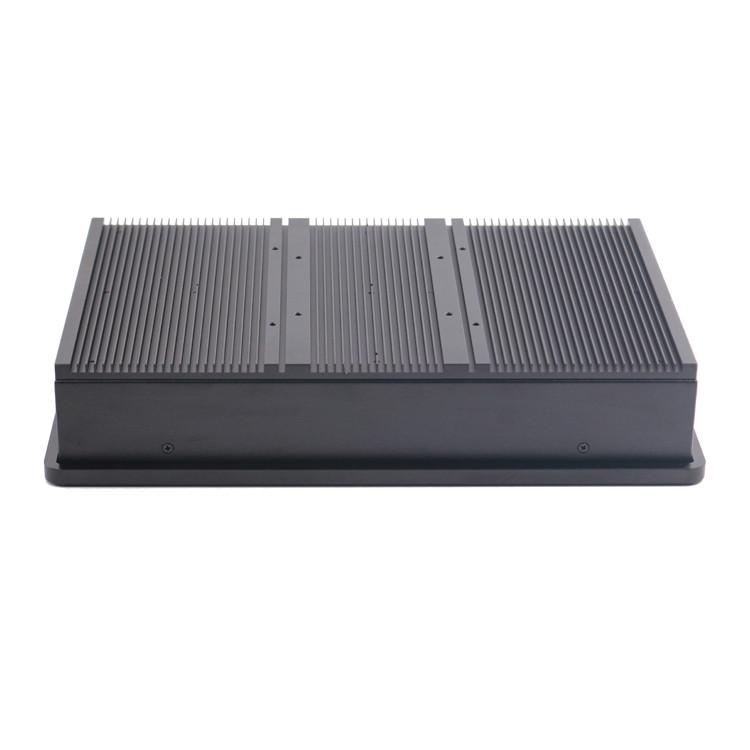

Detailed Image
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.Rugged panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
ODM / OEM acceptable.
Welcome to ask for more information!
