1920x1080 11.6-Inch Linux Touch Panel Pc Built-In Fan PCAP AIO
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
Features
1. Intel core i7-4025U processor
2. 2mm tempered glass Sensistive touch screen
3. WIFI built-in
4. Front Aluminum alloy with brused craft
5. Embedded mount / VESA
Configuration
| Processor System | CPU | Intel Quad-core i7-4025U/1.8 GHz | |
| Memory | 4GB-8GB | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 11.6’’ Lcd Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
| Resolution | 1920(H)x1080(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2*RS232(RS485/RS422 optional) | |
| USB | 4xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| HDMI | 1xHDMI | ||
| VGA | 1xVGA | ||
| Function | WIFI | ||
| Optional | RFID/ NFC card reader | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certificates | CE/ RoHS / FCC | ||

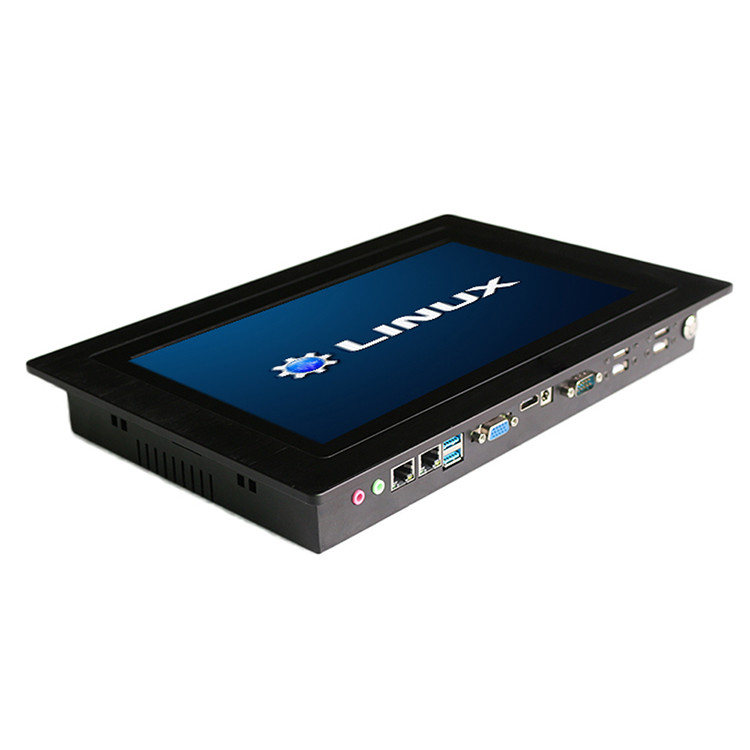

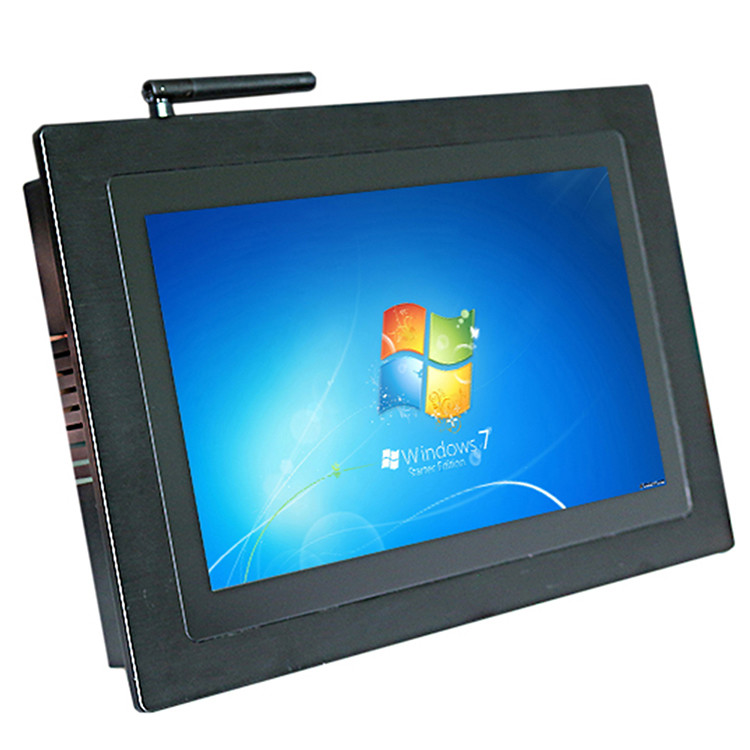

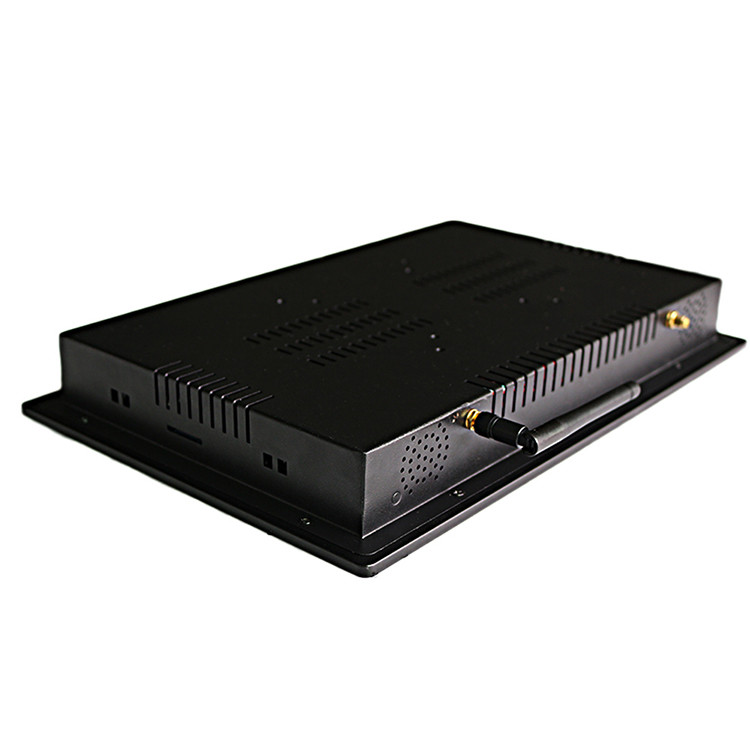

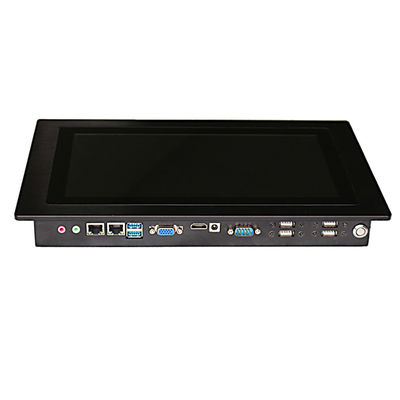

Detailed Image
Linux Touch Panel PC Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
