250nits 22 Inch DC24V Linux Touch Panel PC PCI DP Integrated

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: CE,RoHS, FCC
Model Number: IND215PC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 5.5kgs/pc, packing size: 66×15×44.5cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: 22'' Linux Touch Panel Pc Resolution: 1920*1080
Aspect Ratio: 16:9 Touchscreen: PCAP Touch Screen
CPU: Intel Core I5-7200U Wide Voltage: 8-36V Voltage
View Angle: 80°/80°/80°/80° (R/L/U/D) Material: Aluminum Profile
High Light:

DC24V Linux Touch Panel PC

,

250nits Linux Touch Panel PC

,

PCI DP PCAP Panel PC


Product Description



Features

1. Wide screen 21.5inch brand-new lcd panel


2. 10points Capacitive Touch Screen (Capacitive or Resistive or Tempered glass)


3. 250 Nits of Brightness(1000nits brightness optional)


4. Rich interface: VGA,DP, HDMI inputs and PCI slot



5. 8-36V wide working voltage built-in


6. High work perormance intel I5-7200U processor



Configuration

Processor System CPU Intel core I5-7200U/1.8GHz
Memory 4GB-8GB
Storage 64G SSD(up to 1TB)
Operation System Windows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 21.5'' Lcd Panel
Touchscreen Type Capacitive touch screen / Resistive touch option
Resolution 1920(H)x1080(V)
Aspect Ratio 16:9
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 4*RS232(RS485/RS422 optional)
USB 4xUSB2.0
LAN 2xRJ45, 10/100/1000 Mbps
HDMI yes
VGA 1xVGA
Function PCI
8-36V voltage
DP port
Optional RFID/ NFC card reader
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Aluminum alloy+metal
Color Black/Silver/White
Mounting VESA mount / Embedded
Certificates CE/ RoHS / FCC

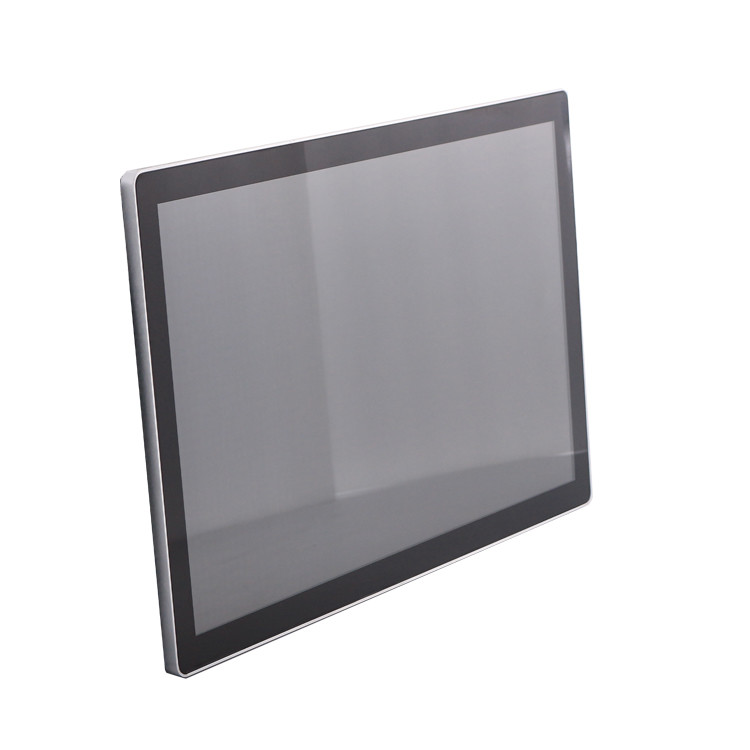

Detailed Image
250nits 22 Inch DC24V Linux Touch Panel PC PCI DP Integrated 0

Application

Intelligent Fab Automation

HMI system

Self-service pay station

Electrical fire monitoring system

water supply control cabinet

Parking payment machine

Intelligent Transportation

medical equipment

Electric control cabinet

Ticket Vending Machine



Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness


Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference

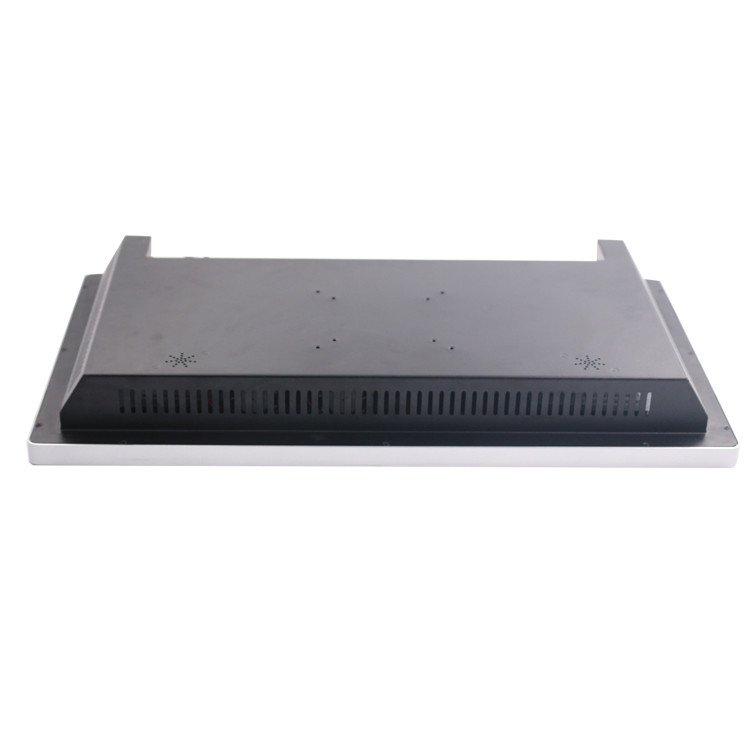

250nits 22 Inch DC24V Linux Touch Panel PC PCI DP Integrated 1

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
