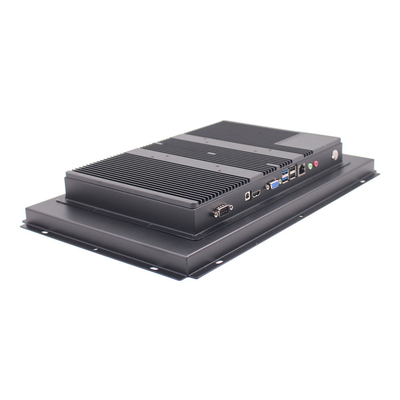

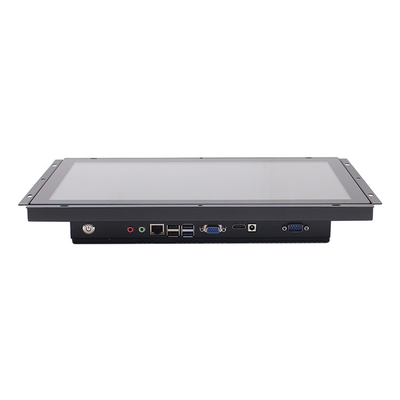

15.6-Inch Pc Panel Touch Screen Windows 11 System Frameless Open Frame Computer
Features of industrial panel pc touch screen
1. 10points capacitive touch screen
2. High processor intel J6413/J6412
3. windows 10 / windows 11 os(trial version)
4. Metal case with Open frame
Configuration of pc panel touch screen
|
Computer Configurations of Industrial touch pc |
|||
|
CPU |
Intel celeron J6413/1.8GHz |
||
|
Memory |
2GB to 8GB, DDR4 |
||
|
Built-in Storage |
32G/64G/128G/1TB SSD |
||
|
Operation System |
win7/8/10,linux, ubuntu |
||
|
Power Supply |
12V DC power |
||
|
Operating Temperature |
-20~70° C |
||
|
LCD Panel Charateristics |
|||
|
Screen Size |
15.6'' industrial grade Panel |
||
|
Touchscreen Type(optional) |
10points Capacitive Touch |
||
|
Resoltuion |
1920(H)*(RGB)* 1080 (V) |
||
|
Aspect Ratio |
16:9 |
||
|
Brightness |
300cd/m2 |
||
|
View Angle |
80x80(H),80x80(V) |
||
|
Contrast Ratio |
700:1 |
||
|
I/O Interface |
|||
|
4 x USB2.0(up to 6) |
1xLAN(RJ45) |
||
|
VGA |
1xCOM(RS232/RS485/RS422) |
||
|
HDMI |
|||
|
Functions |
|||
|
WIFI optional |
|
||
|
Other Information |
|||
|
Frame Material |
Metal case/Aluminum Alloy/Stainless Steel |
||
|
Sheel Process Technic |
Powder coated/Wire Drawing/CNC craft |
||
|
VASA Mounting |
75*75 mm or 100*100 mm. Wall mount/Desktop/Embeded and Rack-mount |
||
|
Color |
Default balck,also can choose white,silvery or other colour |
||
|
Product Dimension(LxWxH) |
TBD |
||
|
Packing Dimension(LxWxH) |
TBD |
||
Customization service
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 10.4" 15" 17" 19" LCD panel
3) IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
