| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND150PC |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 4.5kgs/pc, packing size: 41.5×35.5×15cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
| Type: | Linux Touch Panel Pc With Locker | Brightness: | 250cd/m2(1000nits Optional) |
|---|---|---|---|
| CPU: | Intel Quad-core J1900 | USB: | 4USB |
| Color: | Black / White / Slivery...etc | Client's Logo: | Acceptable |
| Material: | Aluminum Profile+metal | Warranty: | 12 Months |
| High Light: | 4USB linux all in one pc,Linux All In One Pc With Port Locker |
||
4G RAM 64G SSD 15-Inch Linux Touch Panel Pc With Port Locker
Features
1. High luminance solid state led enhanced backlighting
2. Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional
3. 128GB 256GB SSD bigger capacity optional
4. Low power consumption
5. High environmental performance and reliability
6. Wide operation temperature range -20-70C
7. Interface with cover locker
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0GHz | |
| Memory | 4GB-8GB | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 15’’ Lcd Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
| Resolution | 1024(H)x768(V) | ||
| Aspect Ratio | 4:3 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2*RS232(RS485/RS422 optional) | |
| USB | 4xUSB2.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| HDMI | 1xHDMI | ||
| VGA | 1xVGA | ||
| Function | Cover locker for interfac | ||
| Optional | RFID/ NFC card reader | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certificates | CE/ RoHS / FCC | ||

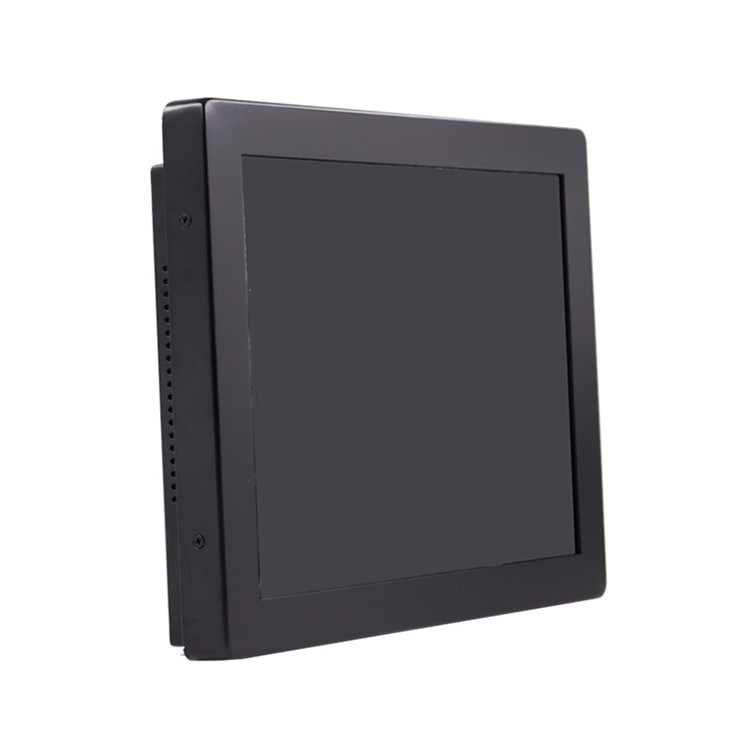

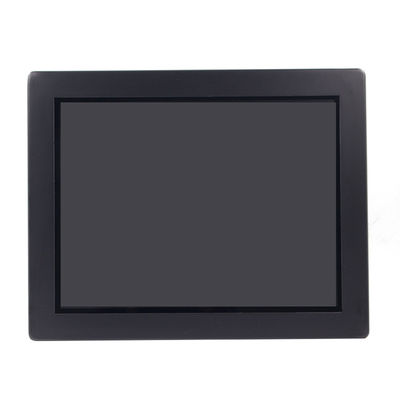

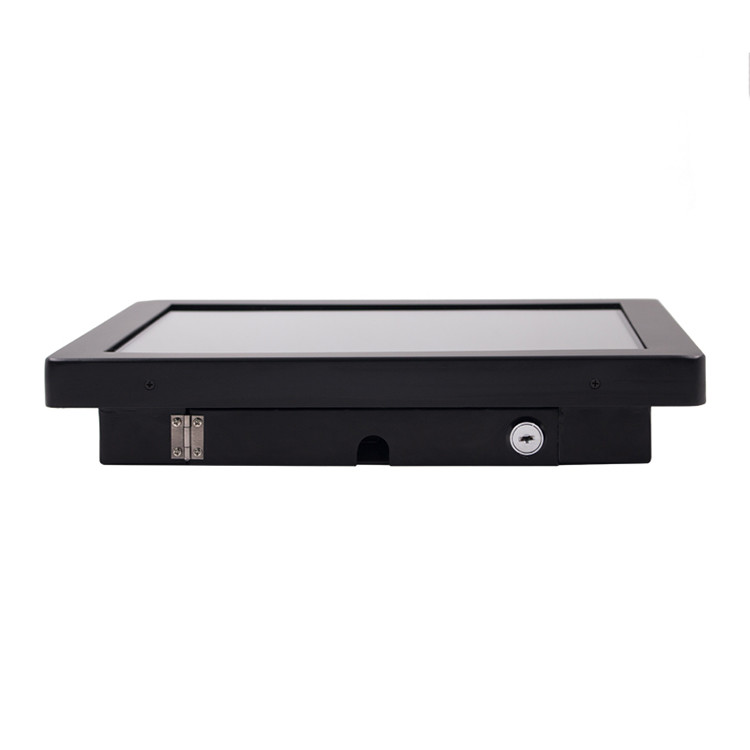

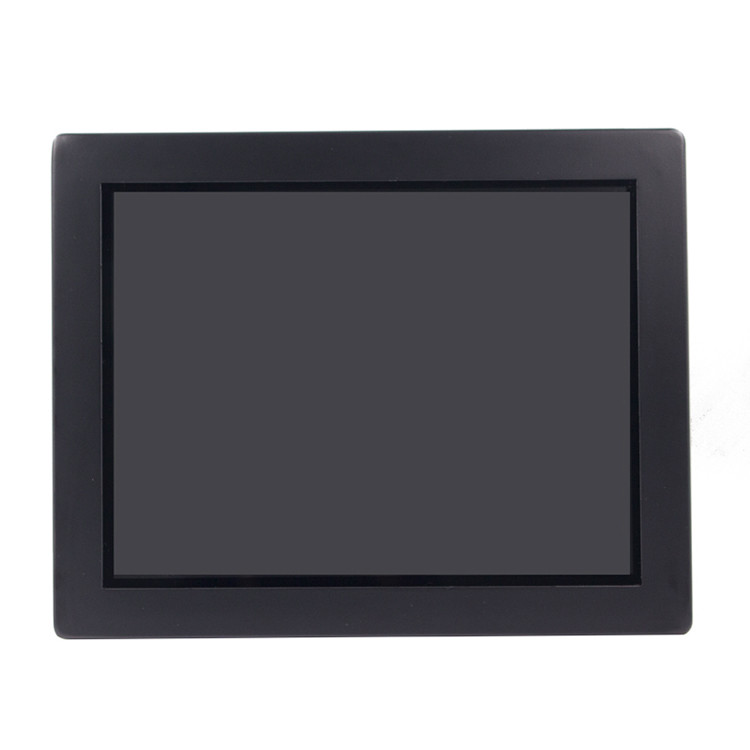

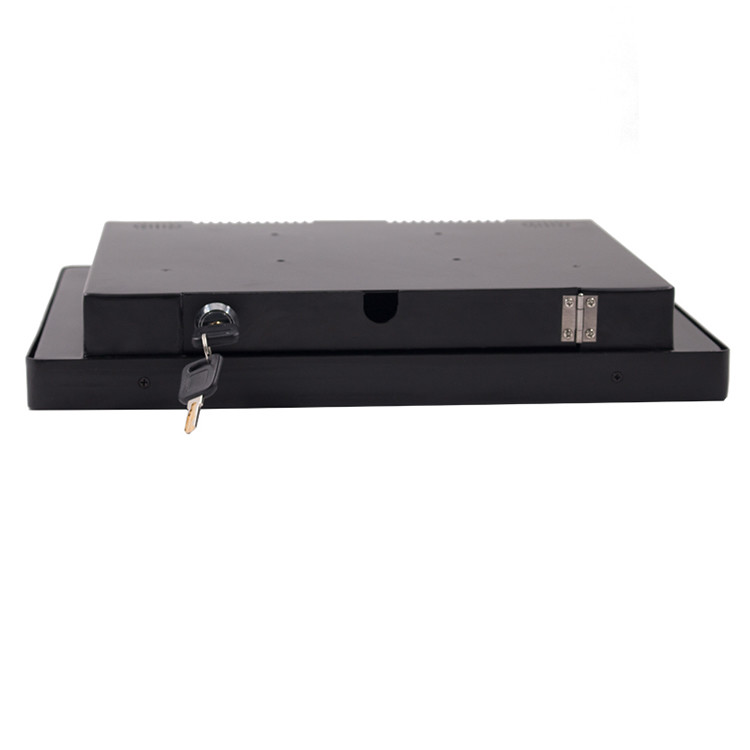

Detailed Image
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at
least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof
computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
5. No MOQ limited
We can provide sample first to test it for the big project.
