250nits PCAP Touch Screen Monitor 1xUSB 1xHDMI Pcap

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND156M
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 3kgs/pc, packing size: 50×14×44cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: 15.6'' Capacitive Touch Monitor Brightness: 250nits
Aspect: 16:9 I/O: 1xUSB, 1x HDMI
Color: As You Like Material: Aluminum+Metal
High Light:

PCAP Touch Screen Monitor


250nits Touch Screen Monitor


250nits Pcap Touch Screen Monitor

Product Description

Light And Thin 15.6-Inch Capacitive Touch Monitor With VGA HDMI USB


1. Wide panel size

7''-42'' panel

2. Optional touchscreen
PCAP touchscreen / Resistive touch / IR touch
3. Modern design avaliable
Innoda have own designer, which can make unique machine just for you
4. Material of the goods
Aluminum / Metal / Stainless Steel / ABS



LCD Panel Characteristics Screen Size 15.6 inch  LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1920(H)x1080(V)
Aspect Ratio 16:9
Brightness 350cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec


I/O Interface

USB 1x USB for touch use
VGA yes
DVI ------
Function Touch
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

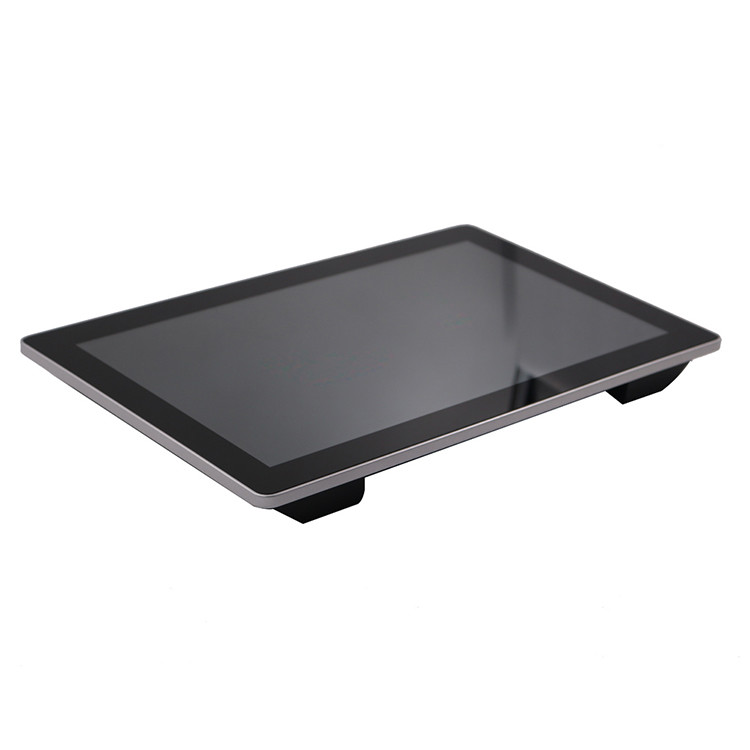

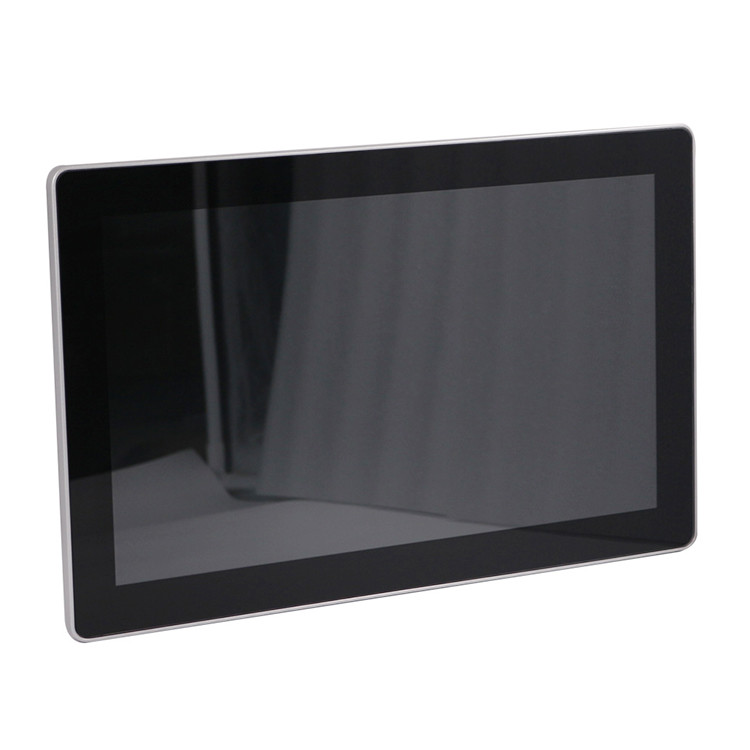

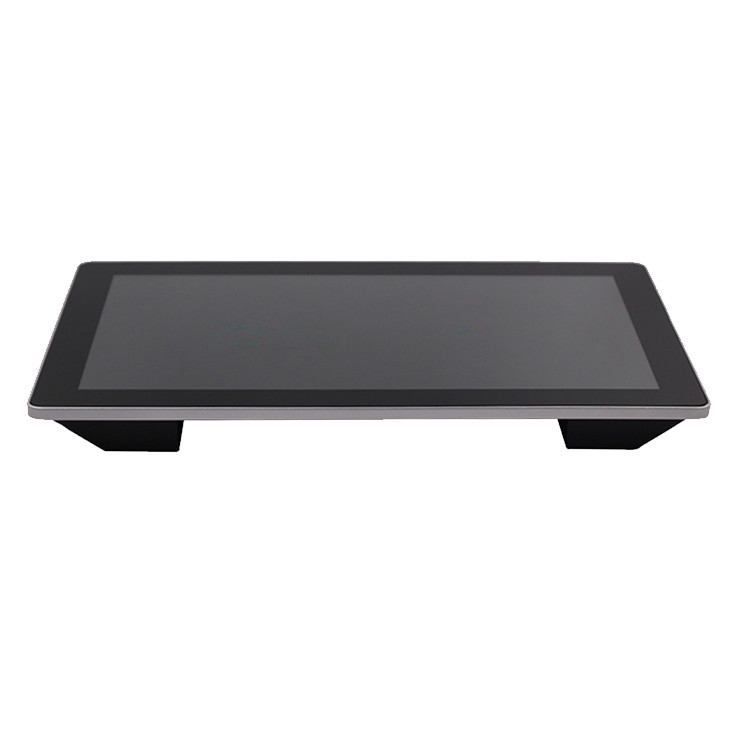

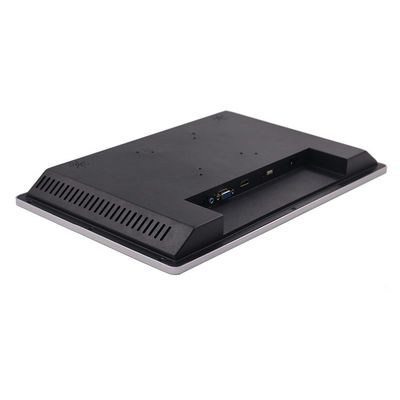

Detailed Image

250nits PCAP Touch Screen Monitor 1xUSB 1xHDMI Pcap 0250nits PCAP Touch Screen Monitor 1xUSB 1xHDMI Pcap 1

250nits PCAP Touch Screen Monitor 1xUSB 1xHDMI Pcap 2

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

250nits PCAP Touch Screen Monitor 1xUSB 1xHDMI Pcap 3
