Super thin Sunlight Viewable Monitor Fully enclosed

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND156M
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 4.5kgs/pc, packing size: 50×14× 44cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Detail Information
Type: 15.6'' Open Frame Monitor Resolution: 1920*1080
I/O: VGA, HDMI Color: Black / White / Slivery...etc
System: Support Widnows/Android/ Linux Material: Metal
Mount: Open Frame / Embedded Warranty: 1 Year
High Light:

Super Thin Sunlight Viewable Monitor

,

Fully Enclosed Sunlight Viewable Monitor

,

Sunlight Viewable Super Thin Monitor


Product Description

1000 Nits Sunlight Readable Lcd Monitor 15.6-Inch Open Frame Design

Features

- Panel Mount LCD 15.6″ Industrial Grade
- VGA,HDMI interface, USB for touch use

- 1000cd/m2 for daylight readable
- Super thin and ultra narrow bezel, Fully enclosed design, the whole monitor is dustproof

- Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof



Configuration

LCD Panel Characteristics Screen Size 15.6’’ LCD Panel
Touchscreen Type Capacitive touch screen
Resolution 1920(H)x1080(V)
Aspect Ratio 4:3
Brightness 1000cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec



I/O Interface

USB  1*USB for touch use
HDMI 1XHDMI
VGA Yes
DVI ----
Function touch
Mounting type VESA
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

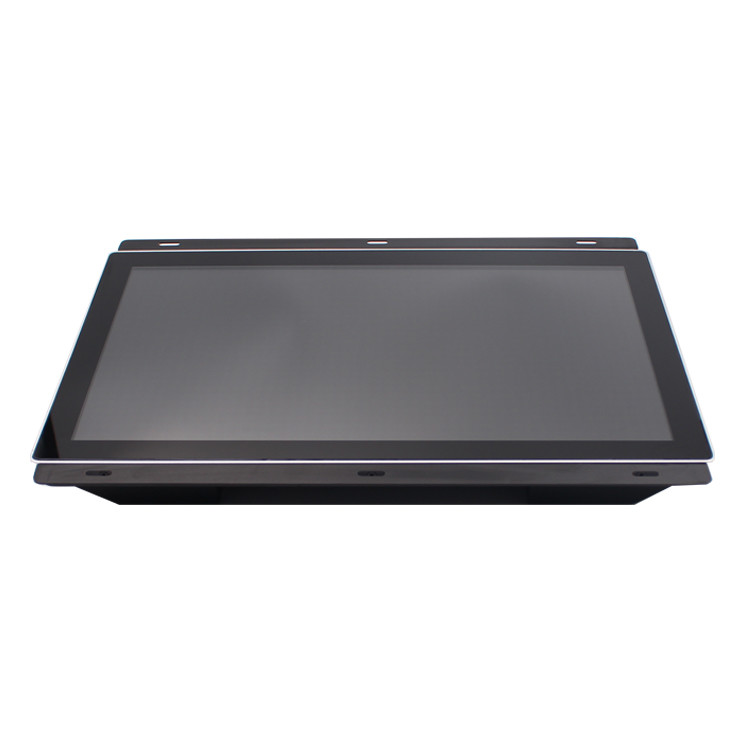

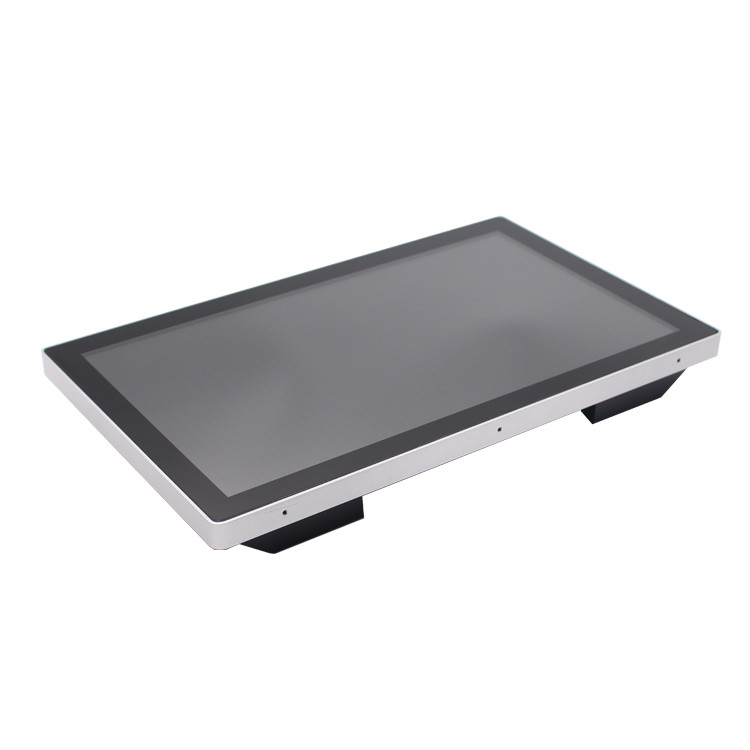

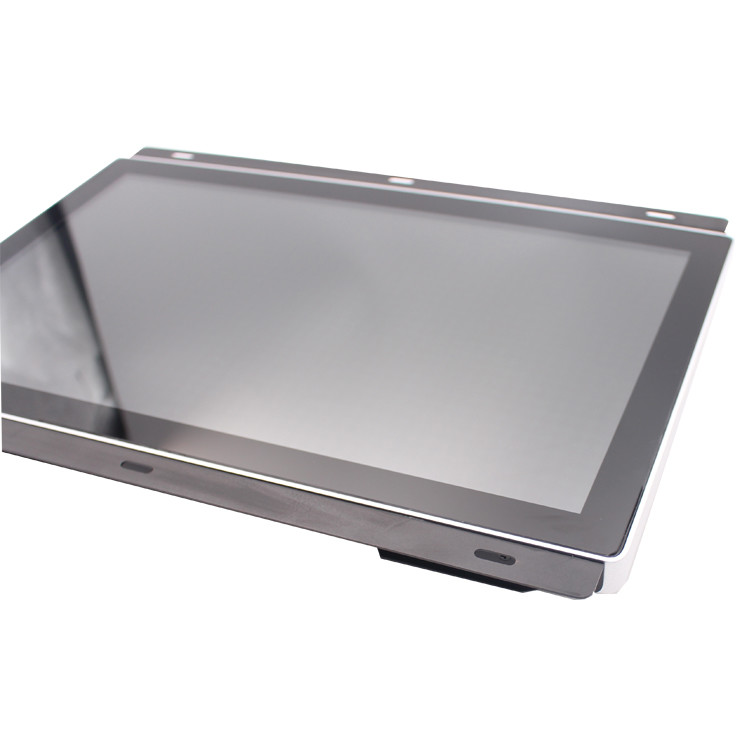

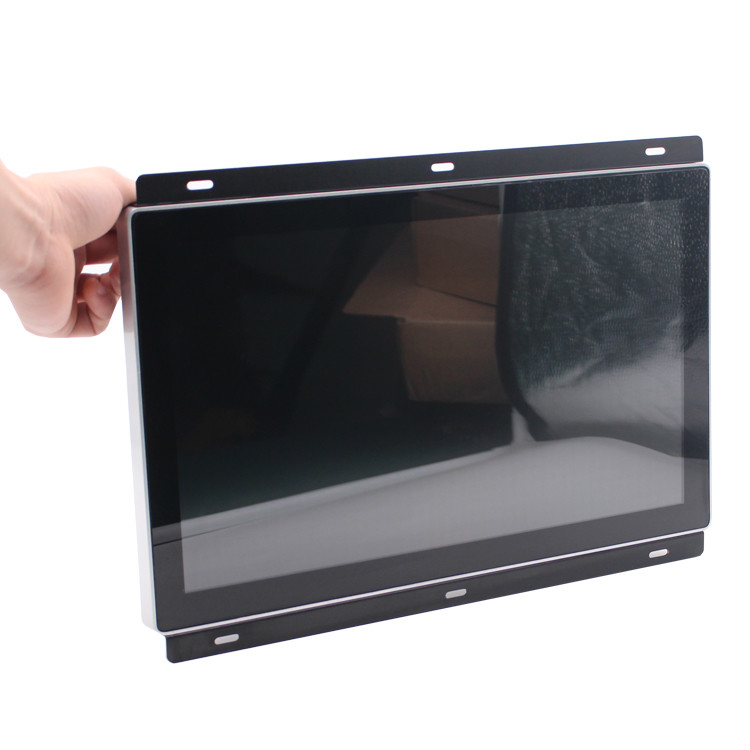

Detailed Image

Super thin Sunlight Viewable Monitor Fully enclosed 0Super thin Sunlight Viewable Monitor Fully enclosed 1

Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness

8-36V wide working voltage



Super thin Sunlight Viewable Monitor Fully enclosed 2



Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

Super thin Sunlight Viewable Monitor Fully enclosed 3
