Sunlight Readable 1280x800 Windows Rugged Panel Pc 10 Inch
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODA |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND101PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 4kgs/pc, packing size: 31×31×10.5cm |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
|
Detail Information |
|||
| Type: | Rugged Touch Panel Pc | Size: | 10inch Industrial Grade Panel |
|---|---|---|---|
| Touchscreen: | Resistive Touch Screen | CPU: | Intel Core I5-4200U/1.6 GHz |
| Brightness: | 1000nits For Daylight Readable | WIFI: | Built-in |
| System: | Windows 7/10(trial Version) / LInux | Material: | Aluminum Alloy |
| High Light: | 1280x800 Windows Rugged Panel Pc,1000nits Windows Rugged Panel Pc,10 Inch Sunlight Readable Rugged PC |
||
Product Description
Features
- LCD 10″ Industrial Grade
- Resistive Touch Screen Standard
- 1000 nits high brightness for sunlight readable
- VGA,COM,LAN,USB,HDMI inputs
- Embedded mount
- Front Panel adopt CNC craft
Configuration
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz | |
| Memory | 2GB (up to 8G) | ||
| Storage | 32G SSD(up to 1TB) | ||
| Operation System | WIndows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 10.1’’ LED Panel | |
| Touchscreen Type | Capacitive touch screen | ||
| Resolution | 1280(H)x800(V) | ||
| Aspect Ratio | 16:10 | ||
| Brightness | 1000cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 2* COM (RS232/RS485/RS422 they can switchable via BIOS) | |
| USB | 3xUSB2.0, 1xUSB3.0 | ||
| LAN | 1xRJ45, 10/100/1000 Mbps | ||
| VGA | 1x VGA | ||
| Function | WIFI | ||
| 1000nits sunlight readable | |||
| Optional | AG / AR glass | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum+Metal frame | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||

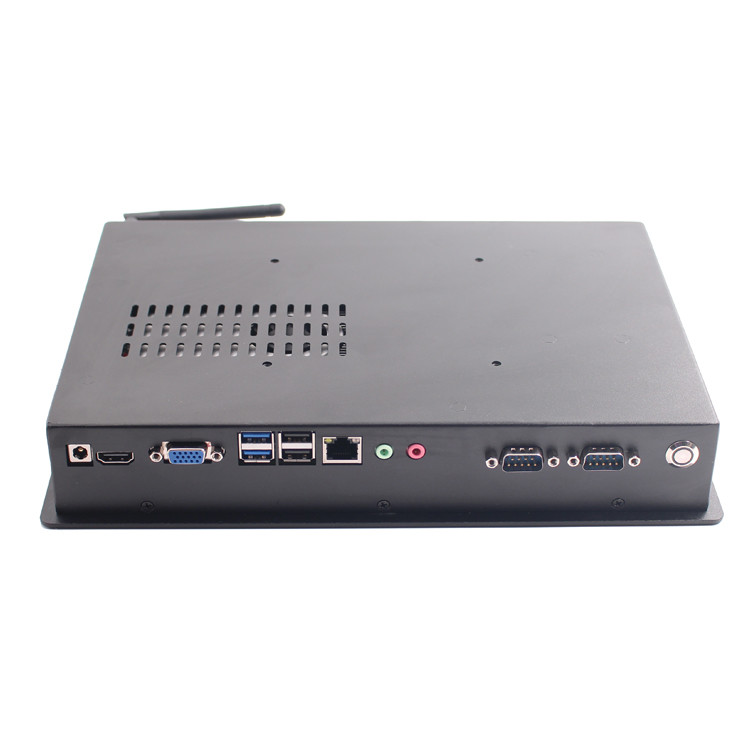

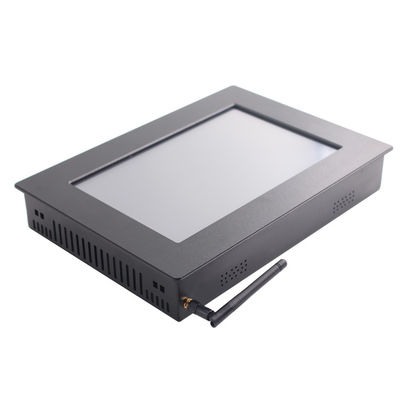

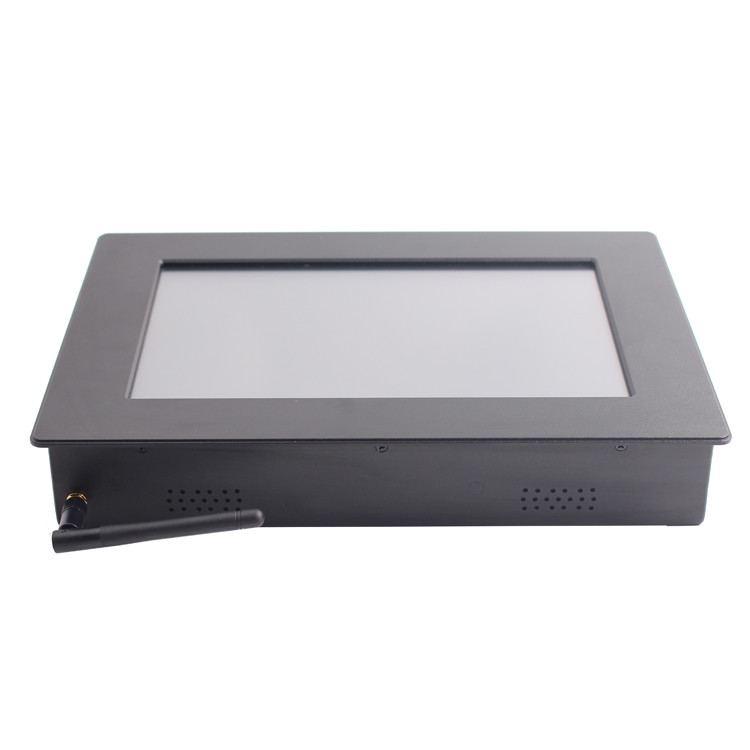

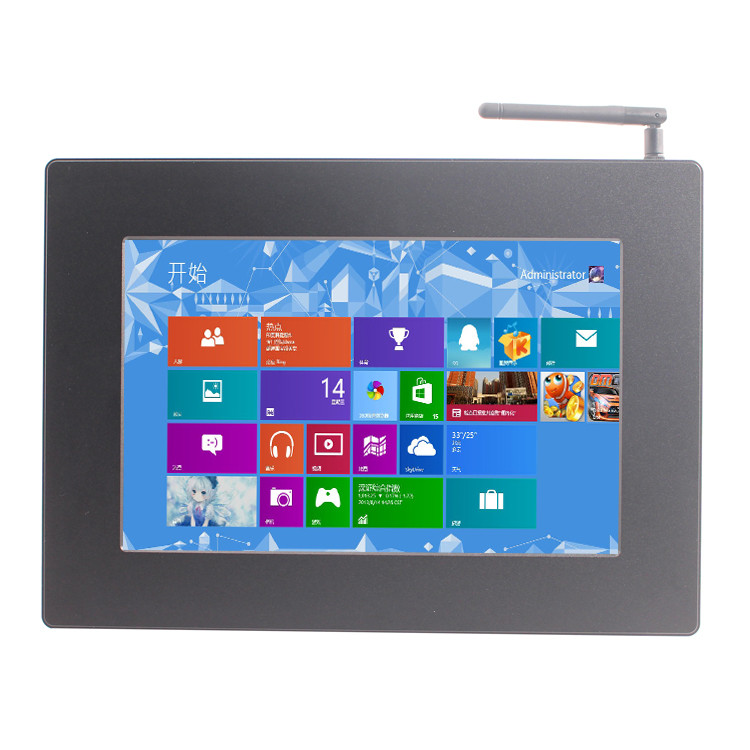

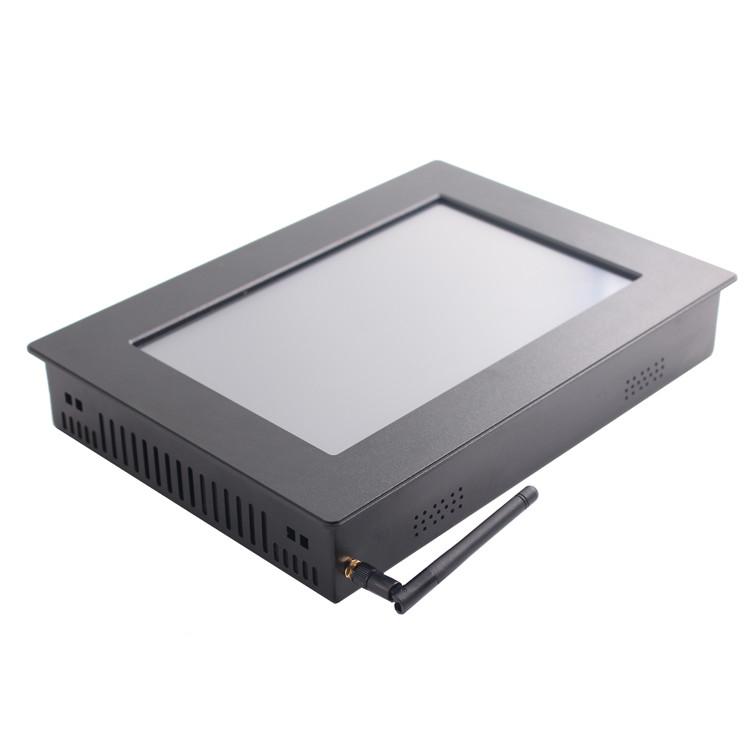

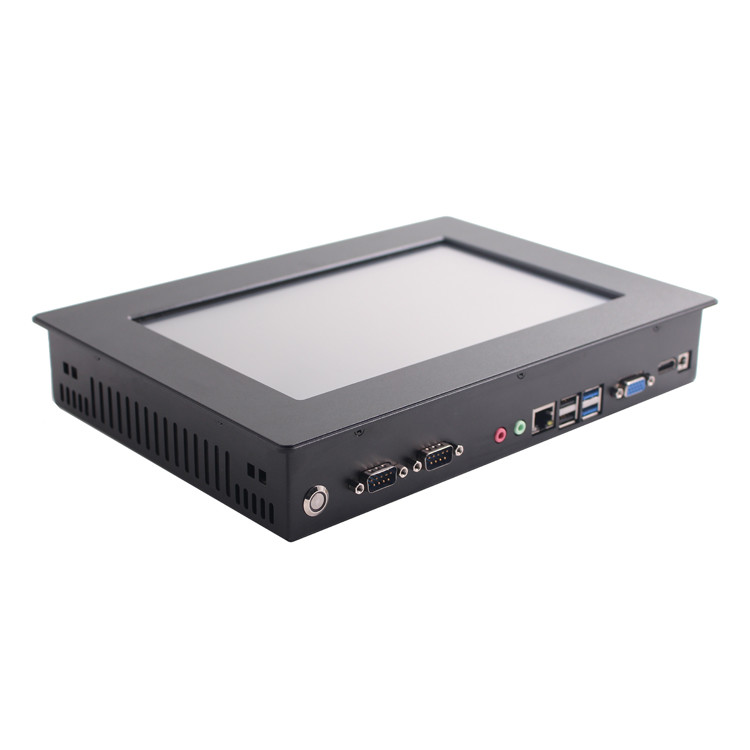

Detailed Image
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
