7" 1024x600 500nits TFT LCD Panel Module Innolux NJ070NA-23A
Product Details:
| Place of Origin: | Taiwan,China |
| Brand Name: | Innolux |
| Certification: | RoHS |
| Model Number: | NJ070NA-23A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50pcs in one Carton |
| Delivery Time: | 12working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 5000 pieces per month |
|
Detail Information |
|||
| Type: | 7inch Lcd Panel Module | Pixels: | 1024*600 |
|---|---|---|---|
| Luminance: | 500 Cd/m2 | Aspect Ratio: | 16:9 |
| Contrast: | 800:1 (Typ.) | Active Area: | 154.214(H)x85.92(V) |
| Signal Interface: | LVDS | Display Mode: | TN,normally White,transmission Type |
| High Light: | 500nits TFT LCD Panel Module I,1024x600 TFT LCD Panel Module,Innolux NJ070NA-23A |
||
Product Description
Features
1. Original Brand New Panel
2. Original technology support
3. Industrial Wide working temperature -20-70C
4. LED driver integrated
5. RoHS compliance
6. 12months warranty
Configuration
| Module number | NJ070NA-23A |
| Screen Diagonal | 7inch |
| Pixels H x V | 1024(RGB) X 600 |
| Aspect Ratio | 16:9 |
| White luminance | 500 cd/m2 |
| Contrast | 800:1 |
| Pixel pitch | 0.1506×0.1432 (H×V) [170PPI] |
| Active Area | 154.214(H) × 85.92(V) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | Normally white |
| Response time | 15ms |
| Input Voltage | 3.3V |
| Outline Dimension | 164.9(H) × 100(V) x 4.8mm |
| Electrical Interface(Logic) | LVDS |
| Support color | 262K/16.7M (6-bit / 8-bit) |
| Surface treatment | Hard coating |
| Operation life | 30,000(Min.) Hrs |
| RoHs | RoHS compliance |

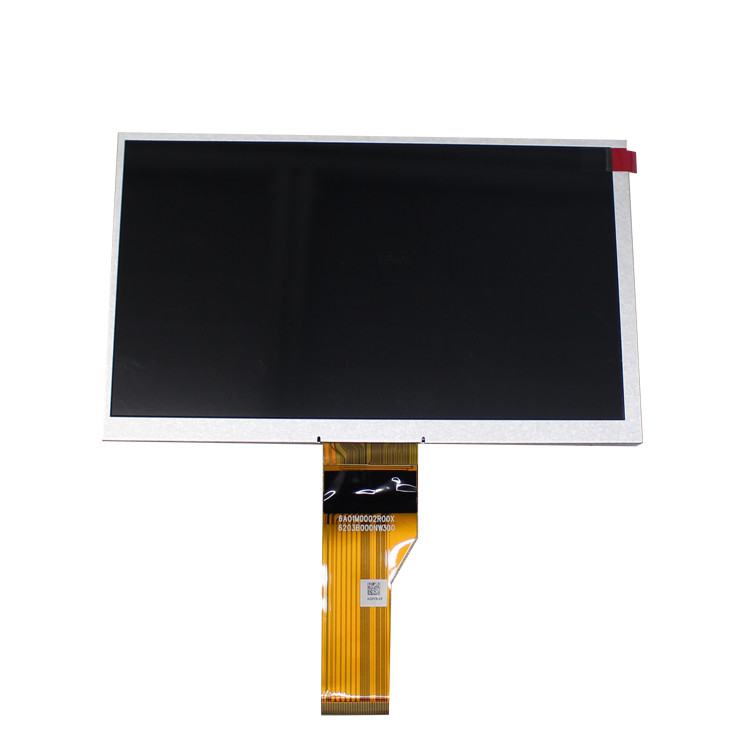

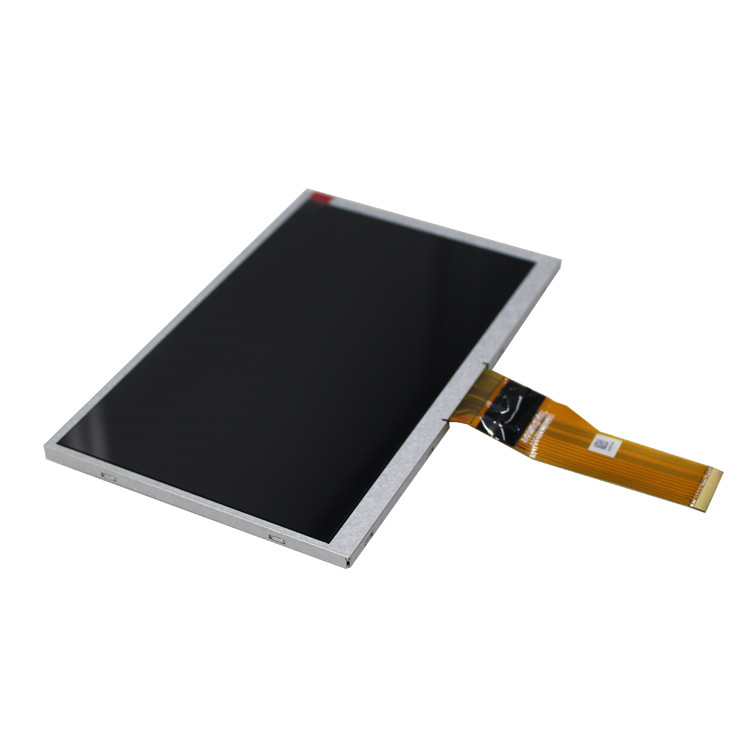

Detailed Image
Application
Industrial computer / monitor / AIO pc / commerical pc
