LVDS 7 Inch 1024x600 TFT LCD Display 500nits LED backlight

Basic Information
Place of Origin: Taiwan,China
Brand Name: Innolux
Certification: RoHS
Model Number: NJ070NA-23A
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 50pcs in one Carton
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: 7inch Lcd Panel Module Pixels: 1024*600
Luminance: 500 Cd/m2 Aspect Ratio: 16:9
Contrast: 800:1 (Typ.) Active Area: 154.214(H)x85.92(V)
Signal Interface: LVDS Display Mode: TN,normally White,transmission Type
High Light:

LVDS TFT LCD Display

,

1024x600 TFT LCD Display

,

500nits Android Industrial Panel Pc


Product Description



 INNODA can provide new brand INNOLUX 7'' TFT LCD Panel Module NJ070NA-23A, 1024*600 resolution, LED backlight and LVDS signal interface. -20-70C wide working temperature and with RoHS compliance.



Features

1. Original Brand New Panel



2. Original technology support



3. Industrial Wide working temperature -20-70C



4. LED driver integrated



5. RoHS compliance



6. 12months warranty



Configuration

Module number NJ070NA-23A
Screen Diagonal 7inch
Pixels H x V 1024(RGB) X 600
Aspect Ratio 16:9
White luminance 500 cd/m2
Contrast 800:1
Pixel pitch 0.1506×0.1432 (H×V) [170PPI]
Active Area 154.214(H) × 85.92(V)
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally white
Response time 15ms
Input Voltage 3.3V
Outline Dimension 164.9(H) × 100(V) x 4.8mm
Electrical Interface(Logic) LVDS
Support color 262K/16.7M (6-bit / 8-bit)
Surface treatment Hard coating
Operation life 30,000(Min.) Hrs
RoHs RoHS compliance


Detailed Image

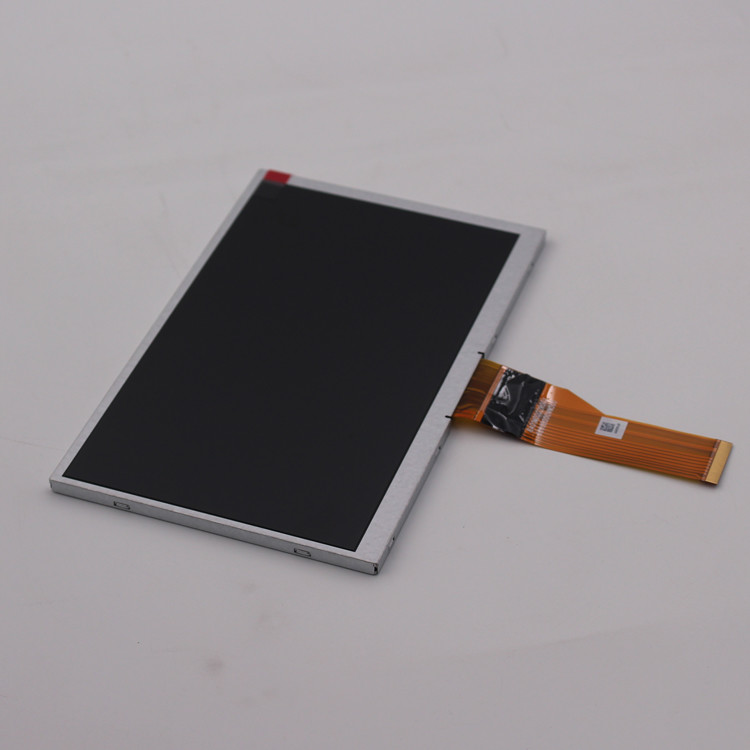

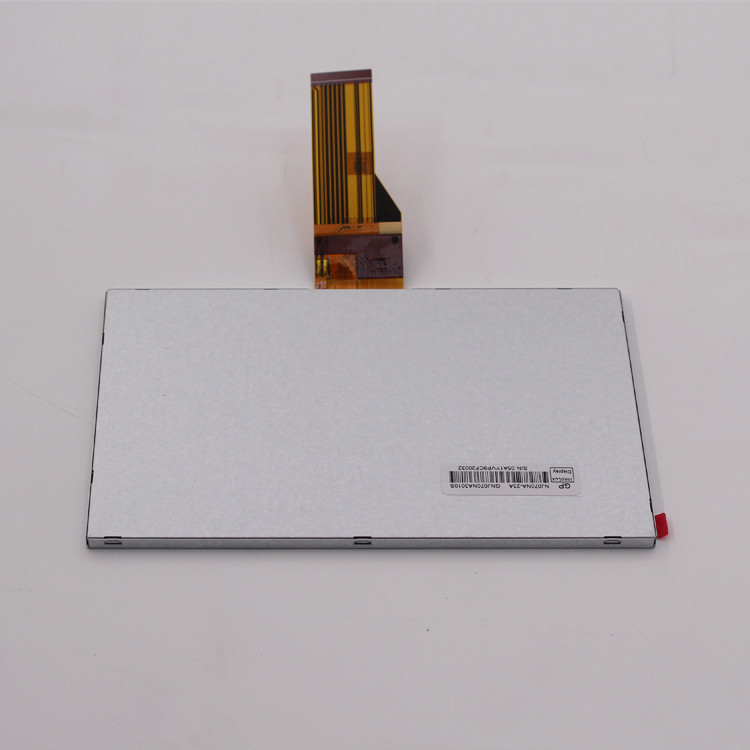

LVDS 7 Inch 1024x600 TFT LCD Display 500nits LED backlight 0LVDS 7 Inch 1024x600 TFT LCD Display 500nits LED backlight 1



Application

Industrial computer / monitor / AIO pc / commerical pc

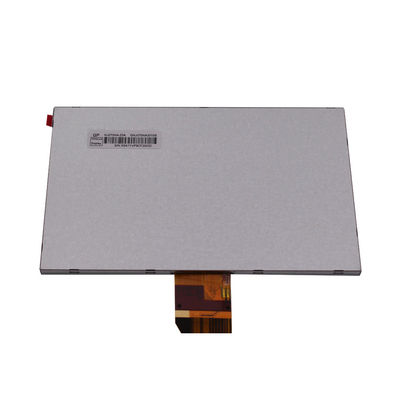

LVDS 7 Inch 1024x600 TFT LCD Display 500nits LED backlight 2
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

5. Rich certificates

CE, RoHs, FCC

LVDS 7 Inch 1024x600 TFT LCD Display 500nits LED backlight 3

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
