1000nits Embedded PCAP Touch Monitor Sunlight Readable 12.1'' 1024x768
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | INNODAPC |
| Certification: | CE,RoHS, FCC |
| Model Number: | IND121M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc/carton weight: 3kgs/pc, packing size: 41×15×35.5cm |
| Delivery Time: | 7working days upon receive the payment |
| Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
| Supply Ability: | 8000 pieces per month |
|
Detail Information |
|||
| Type: | 12'' Embedded Monitor | Resolution: | 1024*768 |
|---|---|---|---|
| Brightness: | 1000nits Sunlight Readable | Port: | HDMI, VGA, USB |
| Material: | Aluminum+Metal | Warranty: | 12months |
| High Light: | Sunlight Readable PCAP Touch Monitor,1000nits Embedded PCAP Touch Monitor,12.1'' 1024x768 Touch Pc Monitor |
||
Product Description
12.1-inch XGA 1024x768 resolution lcd panel monitor, thin front bezel which is adapt CNC craft, true flat panel with round cornor design. High brightness 1000nits can read under sunlight. HDMI, VGA intercafce connect to pc.
Features
1. 12-inch Embedded Touch monitor
2. Adopt multi-touch capacitive touchscreen
3. Industrial LCD panel, wide viewing angle, high nits, true color
4. 1000cd/m2 brightness
5. Sturable rugged enclosure which is for harsh environment
6. Embedded mount with mount clamps
Configurations
| LCD Panel Characteristics | Screen Size | 12-inch LCD Panel | ||
| Touchscreen Type | Capacitive touch / Resistive touch screen / IR touchscreen | |||
| Resolution | 1024(H)x768(V) | |||
| Aspect Ratio | 4:3 | |||
| Brightness | 1000cd/m2 | |||
| Contrast Ratio | 800:1 | |||
| View Angle | 80x80(H),70x70(V) | |||
| Response Time | 15 msec | |||
|
I/O Interface |
USB | 1x USB for touch use | ||
| HDMI | Yes | |||
| VGA | yes | |||
| DVI | ----- | |||
| Function | fanless | |||
| Mounting type | VESA 75/100mm | |||
| Optional | 8-36V wide range voltage | High brightness | ||
| Bracket Mount | ||||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
| Accessories | 1x8A Power Adapter with cable | |||
| Other Information | Material | Aluminum+Metal(Aluminum/stainless steel for choose) | ||
| Color | Black/Silver/White | |||
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
| Humidity | 5~95% @ 40° C, non-condensing | |||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||

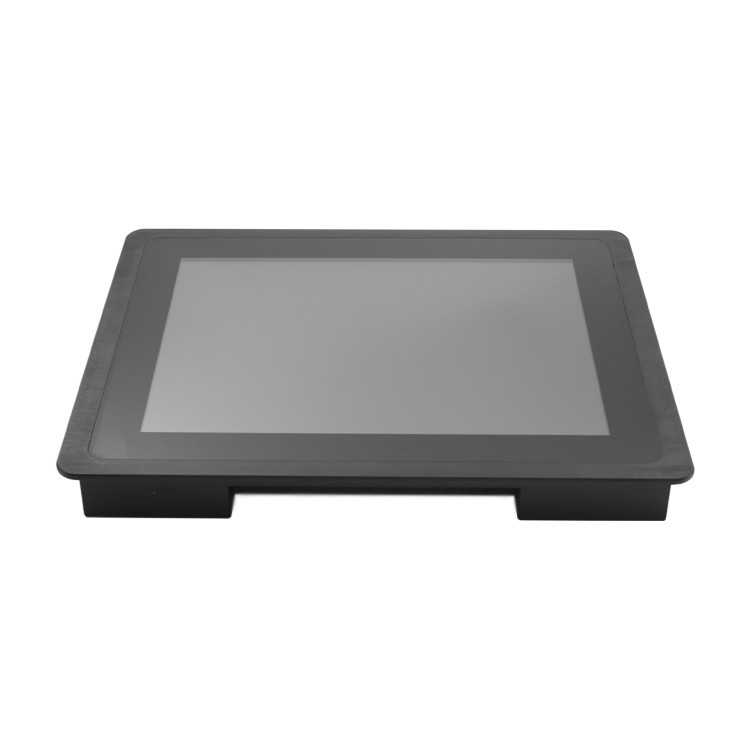

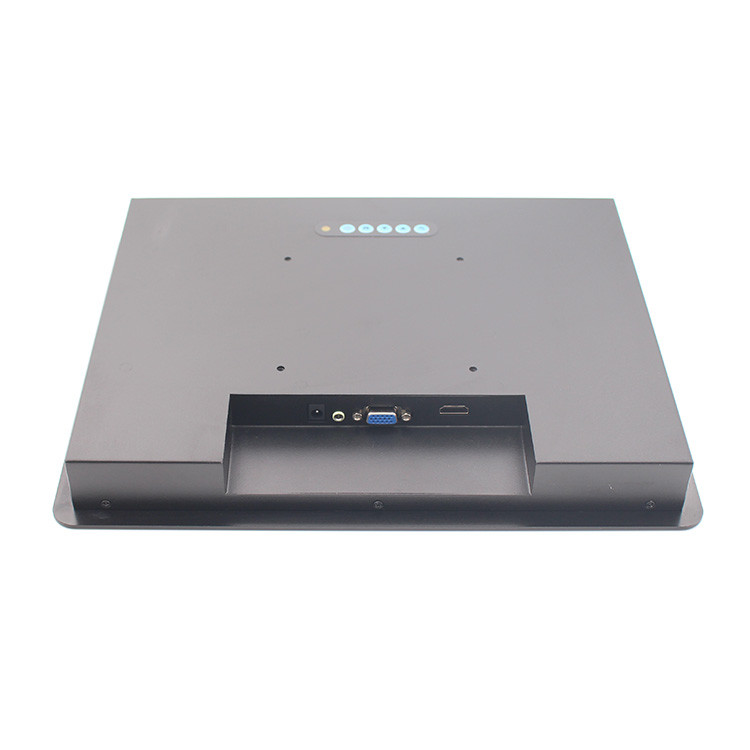

Detailed Image
Application
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
