AIO Reader HMI Panel Pc 250cd/M2 IR Touch 15.6 Inch Intel J4105 Cpu 18W

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: CE,RoHS, FCC
Model Number: IND156PC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 4kgs/pc, packing size: 48×39×14cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: 15.6inch Rugged Panel Pc Size: INNODAPC 15.6inch LCD Panel
Touchscreen: Capacitive Touch Screen CPU: Intel J4105
System: Windows 7/10(trial Version) / LInux / Ubuntu Material: Aluminum Metal Case
WIFI: Optional I/O Port: USB, COM, Rj45, VGA, HDMI
High Light:

AIO Reader HMI Panel Pc

,

250cd/M2 HMI Panel Pc

,

18W Rugged Touch Panel


Product Description

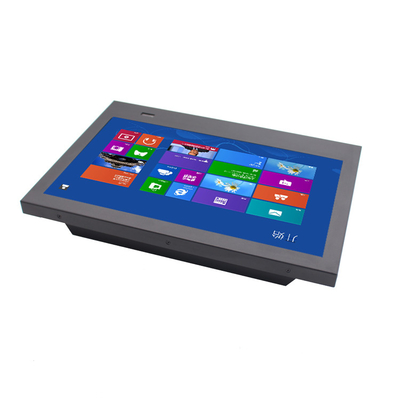

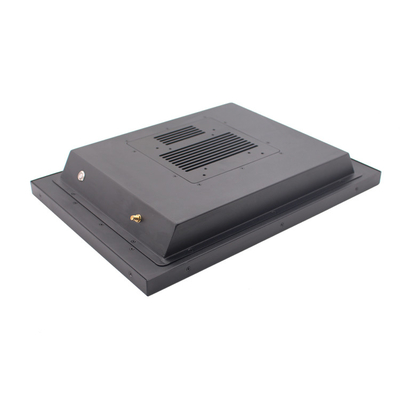

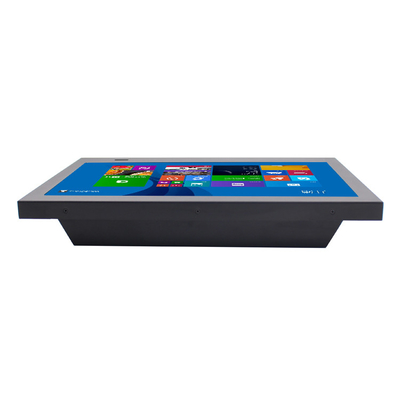

Full HD 15.6 Inch Intel J4105 Cpu AIO Barcode Reader Integrated Industrial HMI Panel Pc



Features
1. Available cpu
Intel J1900 / J3160 / I3/ I5 / I7
2. Optional touchscreen
PCAP touch screen / Resistive touch / IR touch
3. WIFI built-in
4. Modern design avaliable
Innoda have own designer, which can make unique machine just for you
5. Material of the goods
Aluminum / Metal / Stainless Steel / ABS



Configuration

INNODAPC Processor System CPU Intel quad-core J4105
Memory 2GB (up to 8G)
Storage 32G SSD(up to 1TB)
Operation System WIndows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 15.6’’ LED Panel
Touchscreen Type Resistive touch screen / Capacitive touch screen
Resolution 1920(H)x 1080(V)
Aspect Ratio 16:9
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 1 x COM
USB 4xUSB2.0
LAN 1xRJ45, 10/100/1000 Mbps
VGA  Yes
Function(Optioanal) Front IP65
Barcode reader
9-36V wide voltage
Optional AG / AR glass
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Stainless steel+ Metal frame
Color Black/Silver/White
Mounting VESA mount / Embedded


Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine



Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

AIO Reader HMI Panel Pc 250cd/M2 IR Touch 15.6 Inch Intel J4105 Cpu 18W 0
