8-Inch Aluminum Bezel Industrial Touch Panel Pc 9-2V Wide Working Voltage
Features
1. 8inch Industrial Touch Panel pc With 1024*768 resolution
2. Multi-touch capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. Industrial grade lcd panel
4. High performance motherboard, 7x24 continuous operation
5. Built-in 36V Wide Range Voltage , WIFI
6. GPIO built-in
7. Rich interface for your needs: 4*RJ45, USB, COM, HDMI, VGA
| Processor System | CPU | Intel Core I3-4025U/1.6 GHz | I/O Port | COM | 1 x RS232(RS485/RS422) | ||||||
| Memory | 2GB (up to 8G) | USB | 3 x USB2.0, 1xUSB3.0 | ||||||||
| Storage | 32G SSD(up to 1TB) | LAN | 4 x RJ45, 10/100/1000 Mbps | ||||||||
| Operation System | WIndows 7/8/10 OS(trial version) | VGA | 1 x VGA | ||||||||
| LCD Panel Characteristics | Screen Size | 8’’ LED Panel,4:3 (7-22'' option) | Function | Wide voltage | 8-36V wide range voltage | ||||||
| Touchscreen Type | Capacitive touch screen/Resistive / IR /SAW | WIFI | |||||||||
| Resolution | 1024(H)x768(V) | GPIO | |||||||||
| Brightness | 350cd/m2 | Optional | 1000nits high brigthness for sunlight | ||||||||
| Other Information | Power supply | 110V-240V, 12V DC Input | IP65 / IP66 /IP67 Waterproof | ||||||||
| Working Temperature | 0-60℃ | Mounting | 75*75/100*100mm VESA / Embedded | ||||||||
| Cooling System | Fanless or with Fan | Enclosure | Metal/Aluminum/Stainless Steel (optional) | ||||||||

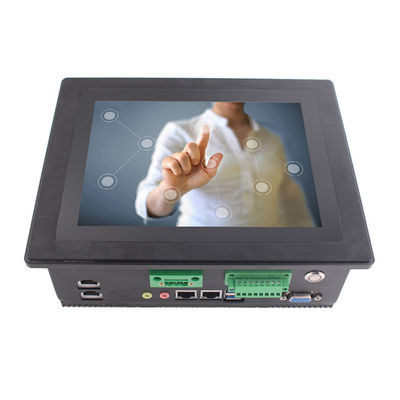

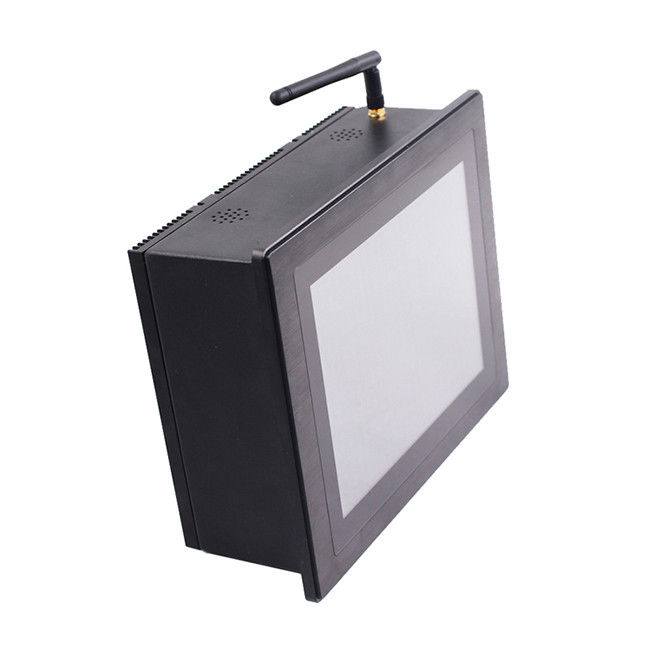

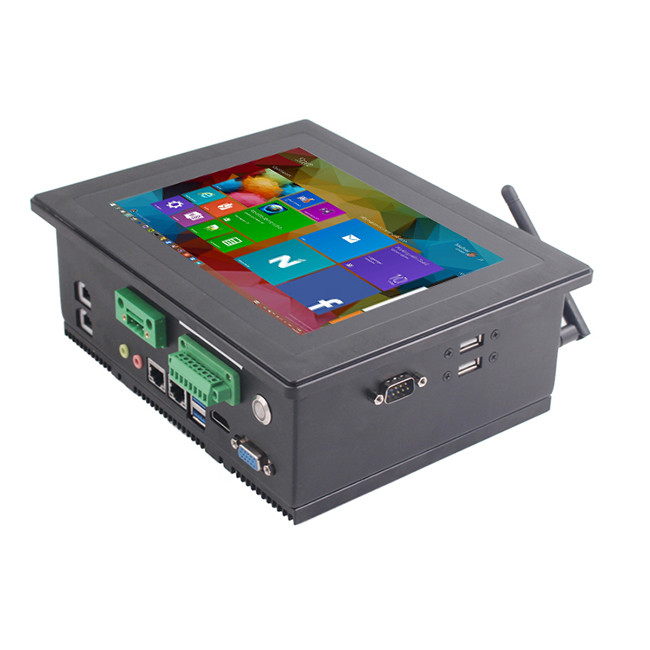

Detailed Image
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.8inch touch panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.
