Fully Sealed IP67 Industrial Touch Panel Pc With HD Camera

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODA
Certification: CE,RoHS, FCC
Model Number: IND101PC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 4.5kgs/pc, packing size: 45×35×12cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: Linux Touch Panel Pc Webame: HD Camera Which Can Work In -40-70C
RAM: 4G DDR3 Wide Temperature -40-80C Hard DIsk: 32G SSD Wide Temperature -40-80C
Working Temperature: -30-70C Material: Metal
IP Grade: Full IP67 Warranty: 12months
High Light:

IP67 Industrial Touch Panel Pc

,

Fully Sealed Industrial Touch Panel Pc

,

IP67 industrial touch screen pc


Product Description

 Built-In 5MP Camera Linux Touch Panel Pc IP67 Outdoor Industrial Computer
Features
1. 10.1inch Industrial Touch Panel pc
2. 10points capacitive touchscreen,cover with 2mm tempered glass for vandalproof
3. 1280*800 Resolution Industrial grade lcd panel
4. High performance motherboard, 7x24 continuous operation
5. -40-70C Wide temperature 5MP webcam built-in

6. -40-80C wide temperature RAM and SSD

7. Fully sealed waterproof IP67

8. Open frame design for cabinet, kiosk installation



Processor System CPU Intel Quad core J1900/2.0 GHz I/O Port COM 1 x RS232(RS485/RS422)
Memory 2GB (up to 8G) USB 3 x USB2.0, 1xUSB3.0
Storage 32G SSD(up to 1TB) LAN 1 x RJ45, 10/100/1000 Mbps
Operation System WIndows 7/8/10 OS(trial version) VGA ---------
LCD Panel Characteristics Size 10.1’’ LED Panel,16:9 (7-22'' option) HDMI --------
Touchscreen Type Capacitive touch screen/Resistive / IR /SAW Function -40-70C wide temperature Webcam
-40-80C wide temperature SSD
-40-80C wide temperature RAM
Full IP67 waterproof
Brightness 350cd/m2 Optional 1000nits high brigthness for sunlight
Resolution 1280(H)x800(V) 9-36V wide voltage
Other Information Power supply 110V-240V, 12V DC Input IP65 / IP66 /IP67 Waterproof
Working Temperature -30-70℃ Mounting 75*75/100*100mm VESA / Embedded
Cooling System Fanless or with Fan  Enclosure Metal/Aluminum/Stainless Steel (optional)


Detailed Image

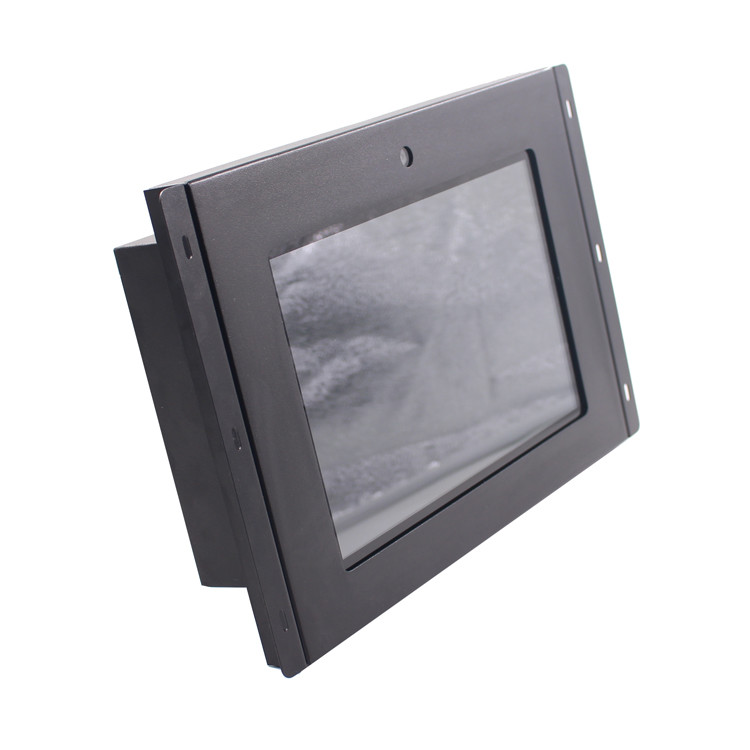

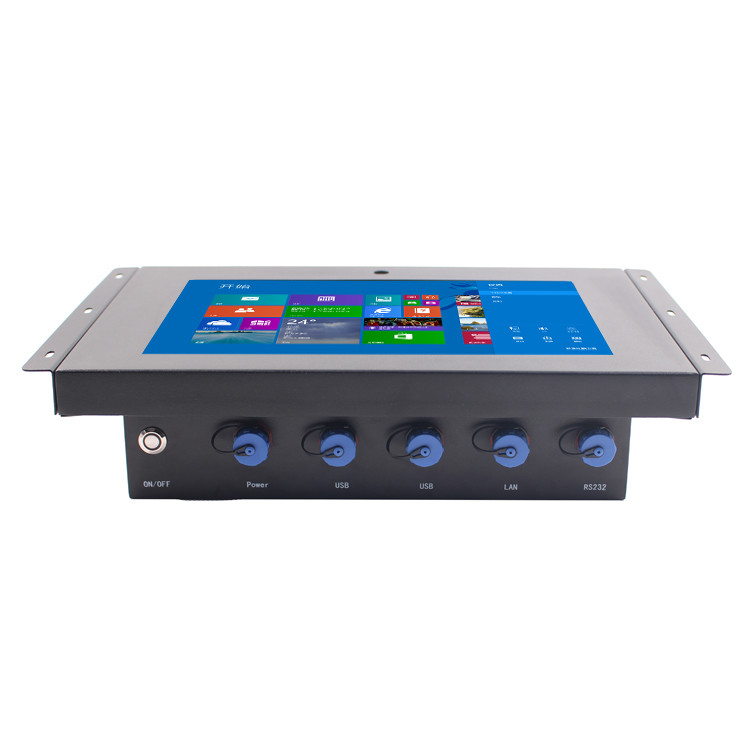

Fully Sealed IP67 Industrial Touch Panel Pc With HD Camera 0Fully Sealed IP67 Industrial Touch Panel Pc With HD Camera 1

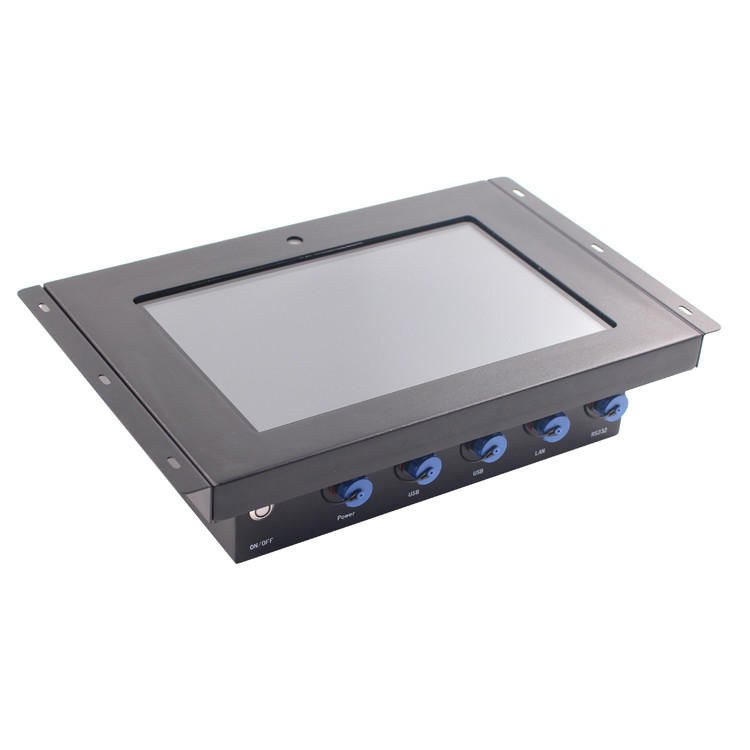

Fully Sealed IP67 Industrial Touch Panel Pc With HD Camera 2

    INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.Waterproof panel pc which have excellent work performane,It offers rich of interface to meet csutomers needs.With 7x24 hours continually working, rugged durable usage.


   ODM / OEM acceptable.

   Welcome to ask for more information!
