DP Input Rugged Linux Touch AIO 4*COM Industrial Computer With PCI Slot
Features
- Wide screen 21.5inch lcd panel
- Touch Screen Standard (Capacitive or Resistive or Tempered glass)
- 250 Nits of Brightness
- VGA,DP, HDMI inputs
- PCI slot
- Aviation head 8-36V wide working voltage
- CE, FCC. RoHS Compliance
Configuration
| Processor System | CPU | Intel Core I5-7200U/1.8GHz | |
| Memory | 4GB-8GB | ||
| Storage | 64G SSD(up to 1TB) | ||
| Operation System | Windows 7/8/10 OS(trial version) | ||
| LCD Panel Characteristics | Screen Size | 21.5'' Lcd Panel | |
| Touchscreen Type | Capacitive touch screen / Resistive touch option | ||
| Resolution | 1920(H)x1080(V) | ||
| Aspect Ratio | 16:9 | ||
| Brightness | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Response Time | 10 msec | ||
| I/O Interface | COM | 4*RS232(RS485/RS422 optional) | |
| USB | 4xUSB2.0 | ||
| LAN | 2xRJ45, 10/100/1000 Mbps | ||
| HDMI | yes | ||
| VGA | 1xVGA | ||
| Function | PCI | ||
| 8-36V voltage with aviation head | |||
| DP port | |||
| Optional | RFID/ NFC card reader | ||
| 8-36V wide range voltage | |||
| Brightness control button | |||
| 1000nits High Brightness for sunlight readable | |||
| Front waterproof / Full sealed Waterproof | |||
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption | ||
| Accessories | 8A Power Adapter with cable | ||
| Working Temperature | -20~70° C | ||
| Other Information | Material | Aluminum alloy+metal | |
| Color | Black/Silver/White | ||
| Mounting | VESA mount / Embedded | ||
| Certificates | CE/ RoHS / FCC | ||

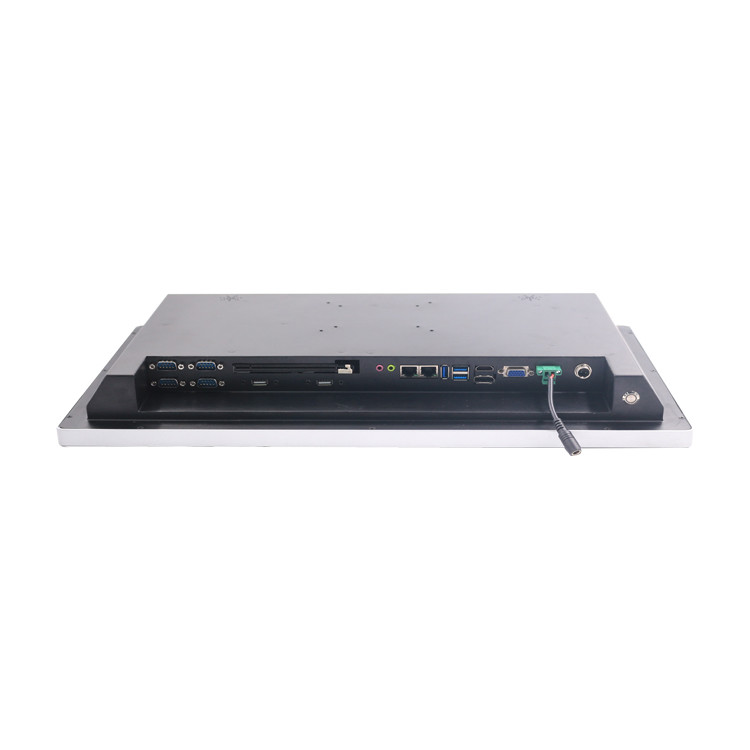

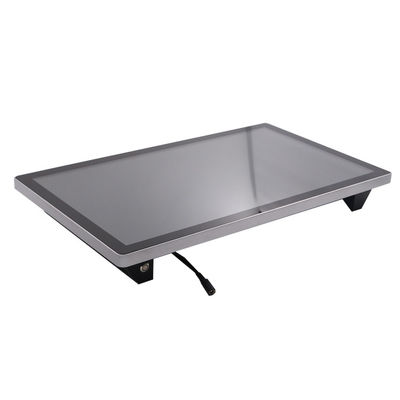

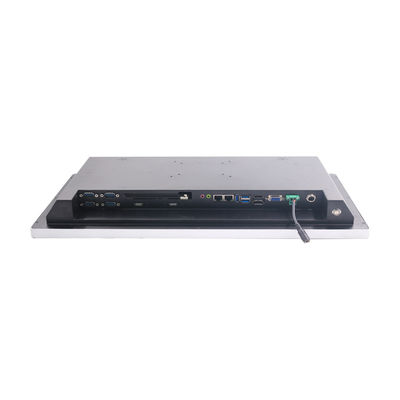

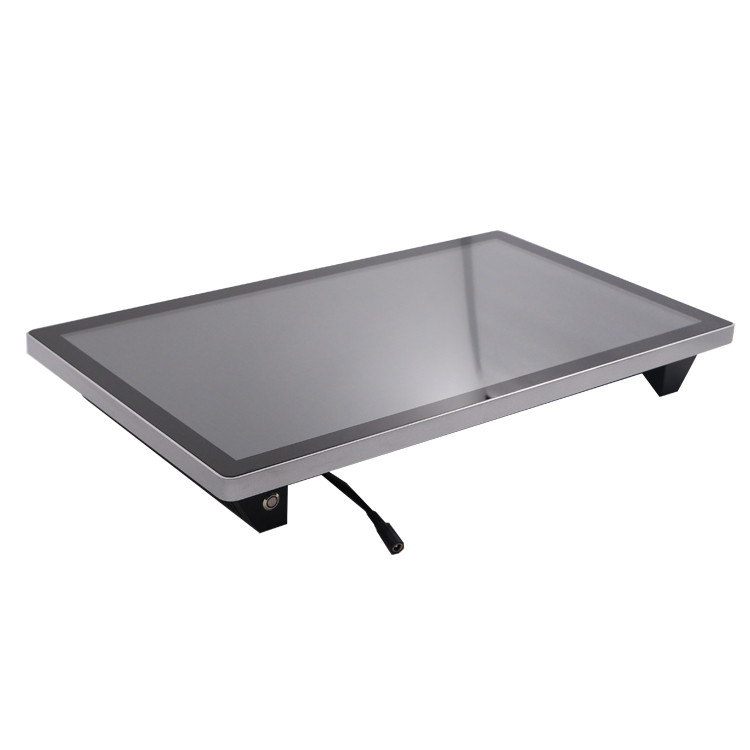

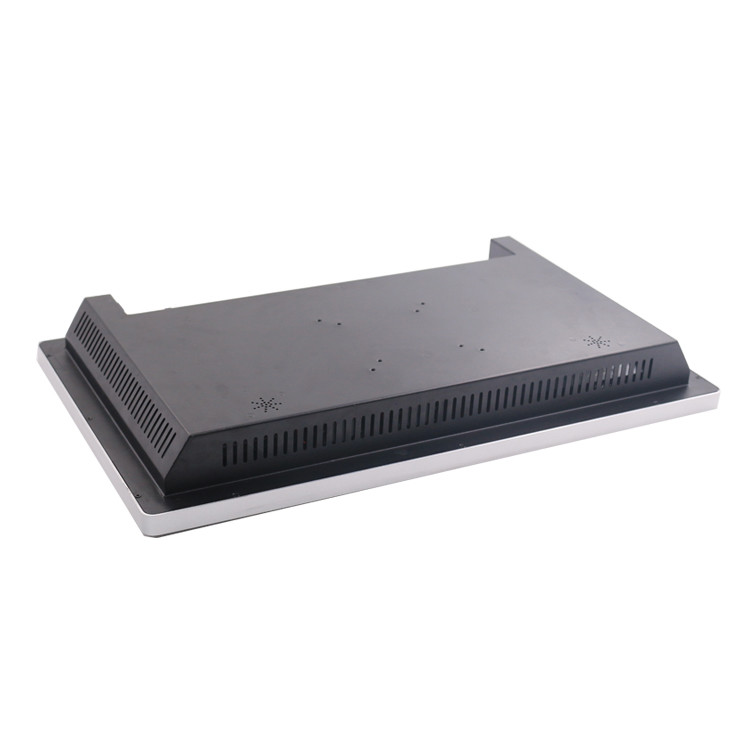

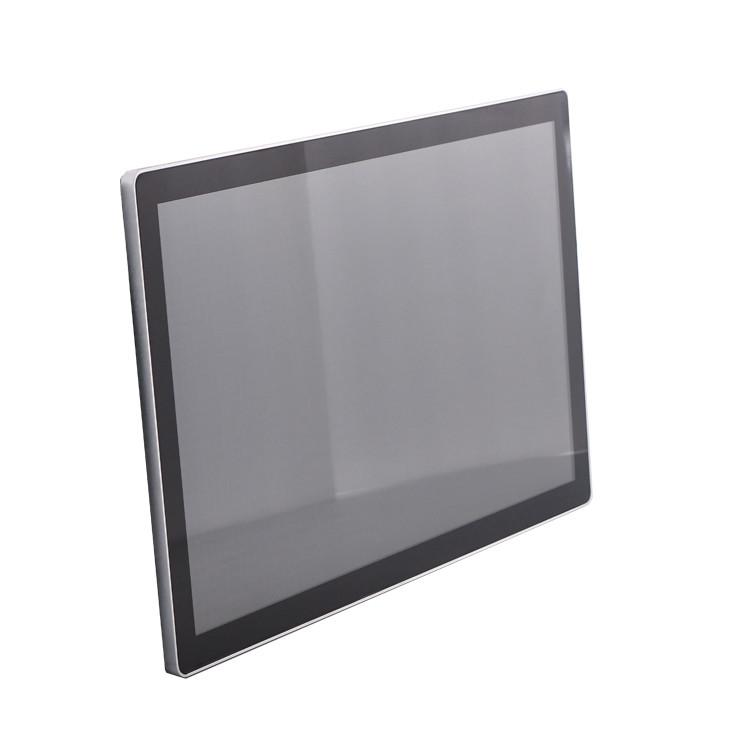

Detailed Image
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
