1024x768 Resolution Pc Lcd Panel
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | INNODA |
Certification: | CE,RoHS, FCC |
Model Number: | IND121M |
Payment & Shipping Terms:
Minimum Order Quantity: | 1piece |
---|---|
Price: | Negotiable |
Packaging Details: | 1pc/carton weight: 3kgs/pc, packing size: 41.5×15× 35.5cm |
Delivery Time: | 7working days upon receive the payment |
Payment Terms: | T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram |
Supply Ability: | 8000 pieces per month |
Detail Information |
|||
Type: | 12''LCd Monitor | Resolution: | 1024*768 |
---|---|---|---|
Power: | 12V DC | I/O: | VGA, HDMI |
Color: | Black / White / Slivery...etc | System: | Support Widnows/Android/ Linux |
Material: | Aluminum Profile | Warranty: | 1 Year |
High Light: | 1024x768 Pc Lcd Panel,12.1 inch Pc Lcd Panel |
Product Description
1024x768 Resolution 12.1-Inch Without Touch Monitor Industrial Display
Features
1. 12.1'' Lcd panel computer monitor
2. 4:3 aspect ratio, true color
3. Support windows / linux / android etc
4. 12months warranty
5. CE, RoHS compliance
Configuration
LCD Panel Characteristics | Screen Size | 12.1’’ LCD Panel | ||
Touchscreen Type | No-touch | |||
Resolution | 1024(H)x768(V) | |||
Aspect Ratio | 4:3 | |||
Brightness | 250cd/m2 | |||
Contrast Ratio | 800:1 | |||
View Angle | 80x80(H),70x70(V) | |||
Response Time | 15 msec | |||
I/O Interface |
USB | -------- | ||
HDMI | 1XHDMI | |||
VGA | Yes | |||
DVI | optional | |||
Function | Without touch | |||
Mounting type | VESA | |||
Optional | 8-36V wide range voltage | High brightness | ||
Bracket Mount | ||||
Power Supply | Single 12 V DC power input, Max 18W Power Consumption | |||
Accessories | 1x8A Power Adapter with cable | |||
Other Information | Material | Metal(Aluminum/stainless steel for choose) | ||
Color | Black/Silver/White | |||
VESA Mounting | 75*75/100*100mm Vesa hole/Embedded | |||
Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) | ||
Humidity | 5~95% @ 40° C, non-condensing | |||
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |

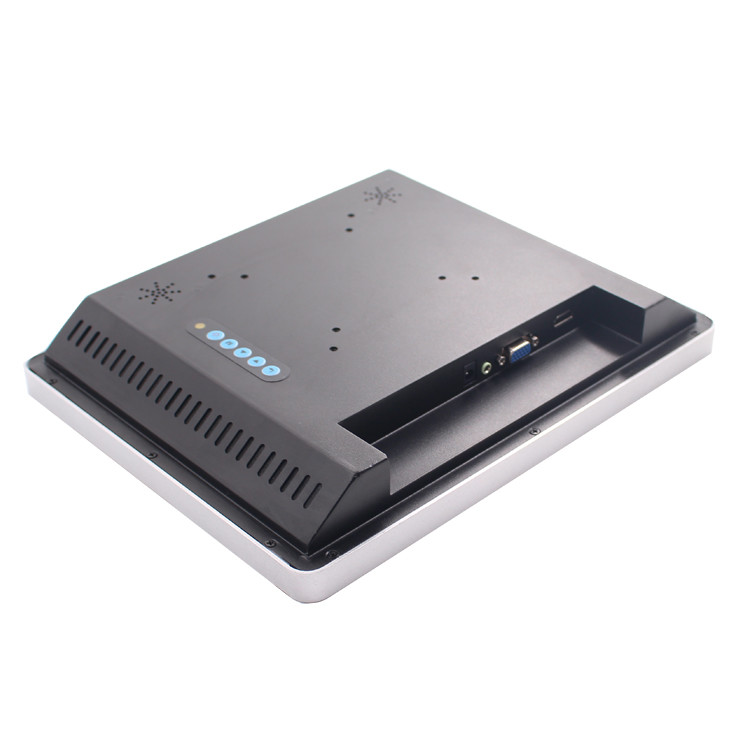

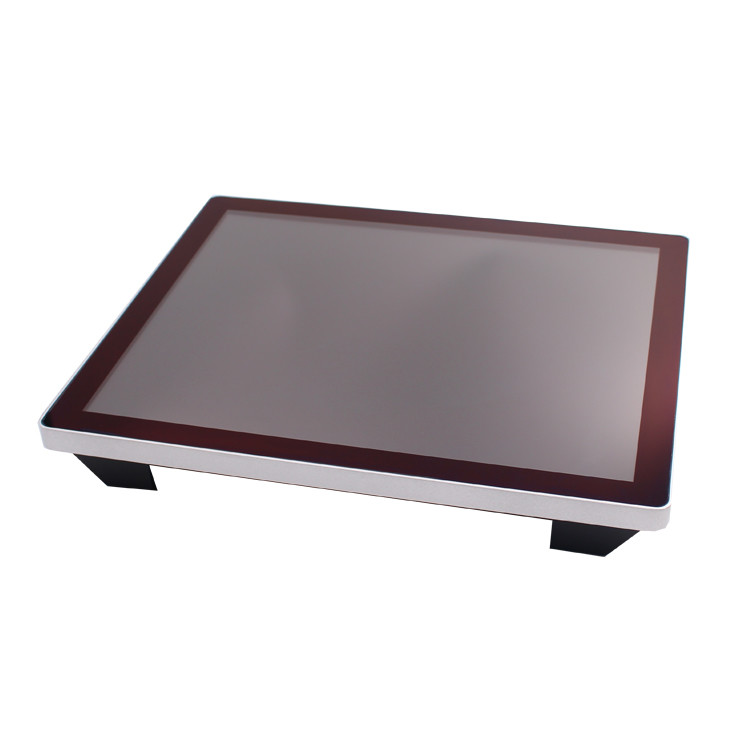

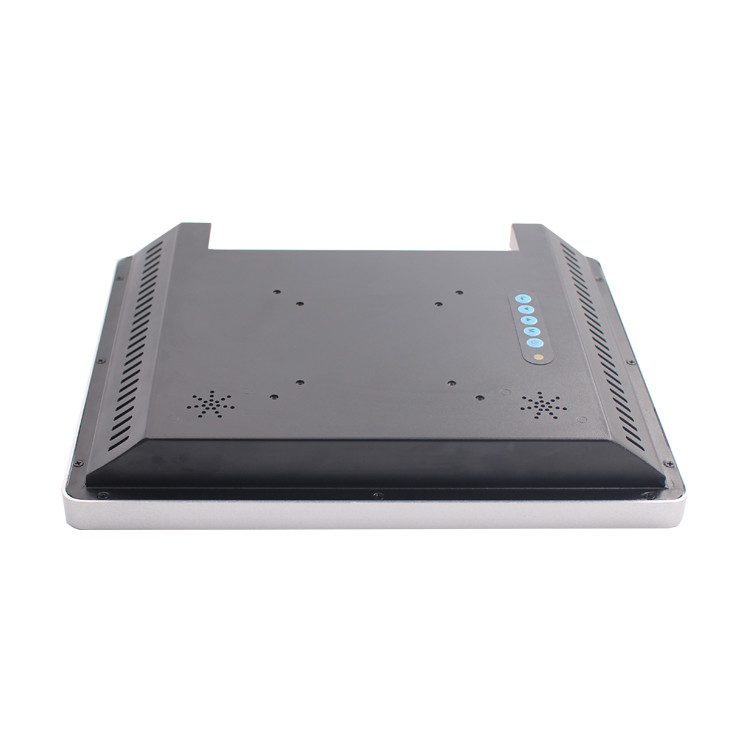

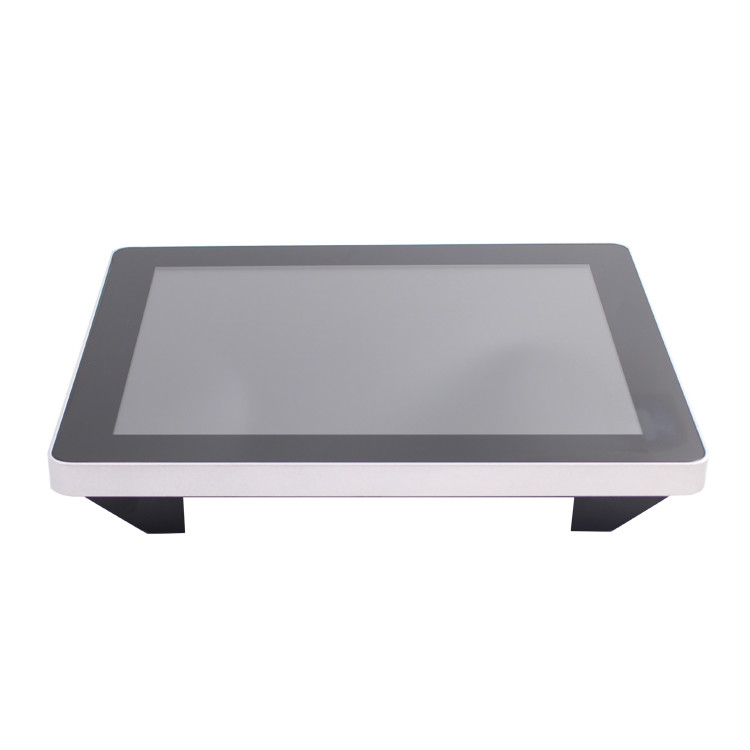

Detailed Image
Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness
8-36V wide working voltage
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
