This compact and nimble 10.1 inch panel mount touchscreen PC is a slim computer suitable for a wide variety of applications. The industrial panel pc is built with the Bay Trail core I5 CPU, which employs a system on chip (SoC) architecture to ensure high reliability in many environments. This unit can be panel mounted or VESA mounted for quick and easy installation in your operations. Additionally, the front bezel of this resistive touchscreen.
Features
1. 10.1" Industrial Grade LCD, 1280x 800 High Resolution.
2. Intel® Core I5-4200U/1.6GHz CPU
3. 4G RAM,64G SSD.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt 10points capacitive touch screen, high precision, durable, anti-interference
6. High performance motherboard, 7x24 continuous operation. with 2×USB 2.0, 2×USB 3.0, 2 x COM
RS232,1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC I/O Interface.
7. Aluminum alloy ,front panel adopt CNC craft
10'' Linux Touch Panel PC Applications
Assembly Manufacturing
Automation
Data Acquisition
Interactive Kiosk
SCADA HMI
Logistics & Transportation
Building Automation
Energy Industry
Radiograph Room (X-Ray)
Healthcare
Signage Systems
Entertainment
production line
Configuration
|
Processor System |
CPU |
Intel Core I5-4200U/1.6 GHz |
|
|
Memory |
4GB (up to 8G) |
||
|
Storage |
64G SSD(up to 1TB) |
||
|
Operation System |
WIndows 7/8/10 OS(trial version) |
||
|
LCD Panel Characteristics |
Screen Size |
10.1'' LCD Panel |
|
|
Touchscreen Type |
Capacitive touch screen |
||
|
Resolution |
1280(H)x800(V) |
||
|
Aspect Ratio |
16:9 |
||
|
Brightness |
350cd/m2 |
||
|
Contrast Ratio |
500:1 |
||
|
Response Time |
10 msec |
||
|
I/O Interface |
COM |
2xCOM RS232 RS485 |
|
|
USB |
4xUSB |
||
|
LAN |
1xRJ45, 10/100/1000 Mbps |
||
|
VGA |
------ |
||
|
Optional |
WIFI |
||
|
8-36V wide range voltage |
|||
|
Brightness control button |
|||
|
1000nits High Brightness for sunlight readable |
|||
|
Front waterproof / Full sealed Waterproof |
|||
|
Power Supply |
Single 12 V DC power input, Max 18W Power Consumption |
||
|
Accessories |
8A Power Adapter with cable |
||
|
Working Temperature |
-20~70° C |
||
|
Other Information |
Material |
Aluminum+Metal frame |
|
|
Color |
Black/Silver/White |
||
|
Mounting |
VESA mount / Embedded |
||

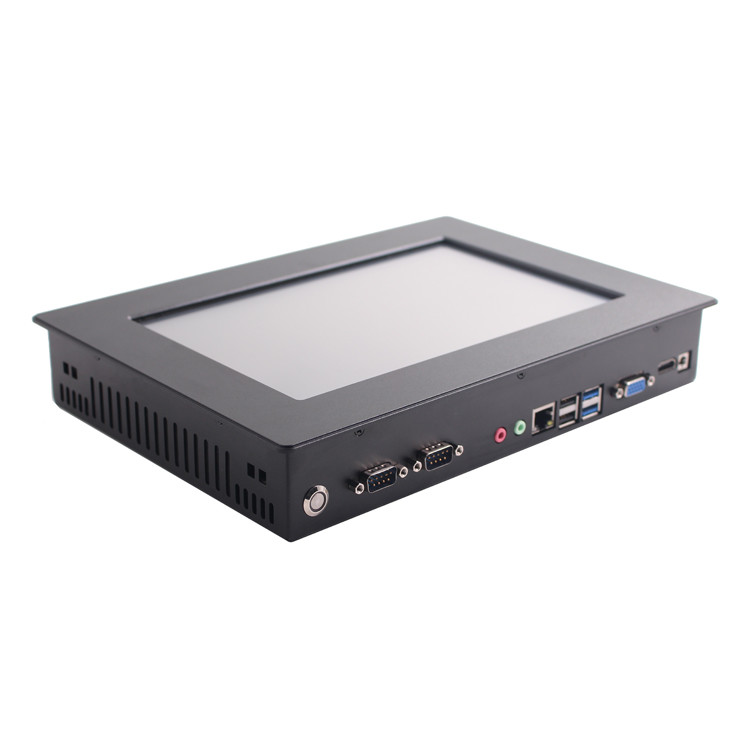

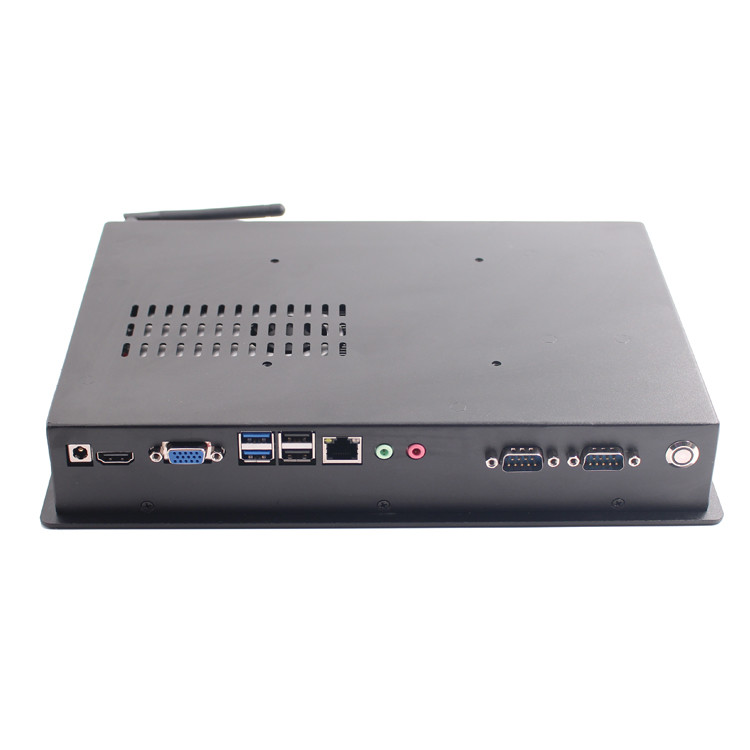

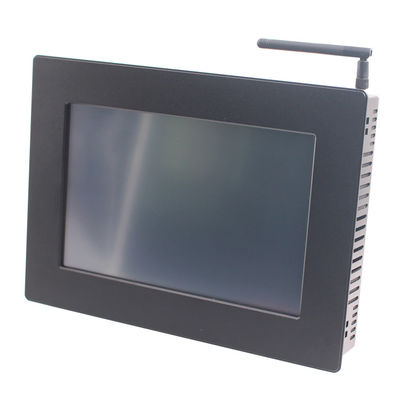

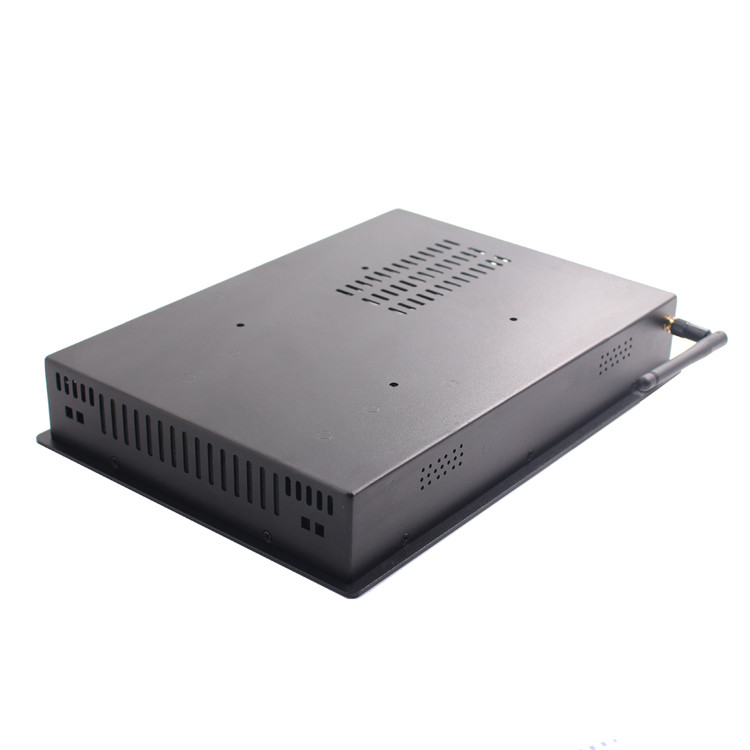

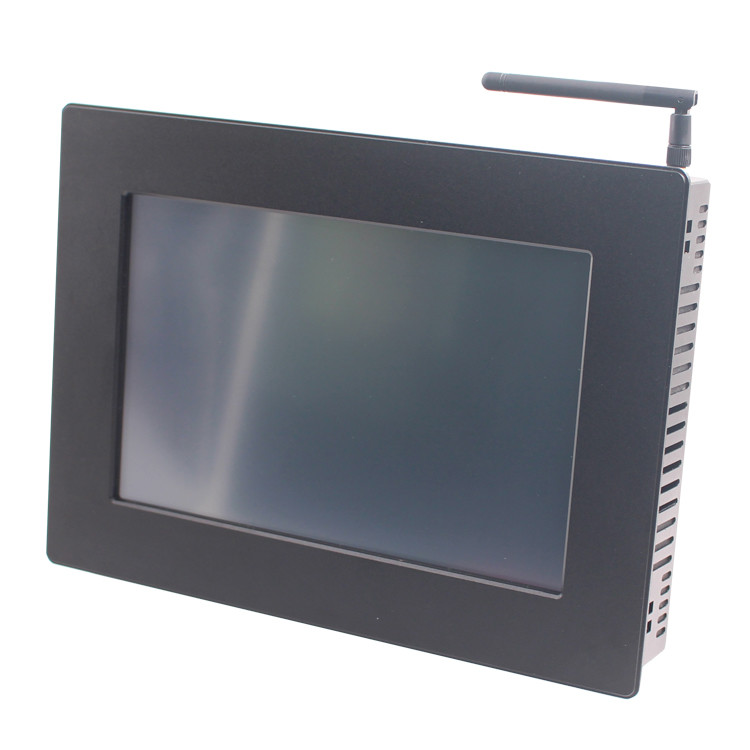

Detailed Image
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
