5MP Webcam 10" Capacitive Rugged Panel Pc Dual Relay Industrial AIO

Basic Information
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: CE,RoHS, FCC
Model Number: IND101PC
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 1pc/carton weight: 5.5kgs/pc, packing size: 41×15×35.5cm
Delivery Time: 12working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Detail Information
Type: 10.1'' Rugged Panel Pc Resolution: 1280*800
Aspect: 16:9 Touchscreen: Capacitive Touch Screen
CPU: Intel Quad-core J1900 Interface: 1*COm, 1*LAN, 2*USB
Relay: 2*relay Material: Aluminum+Metal
High Light:

COM Resistive Rugged Panel Pc

,

10" Resistive Rugged Panel Pc

,

Industrial AIO Rugged Panel Pc


Product Description

Features

1. Metal Case with heat sink,shakeproof and dustproof.
2. 10inch 1280*800 resolution Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt resistive touch screen, high precision, durable, anti-interference.
4. High performance motherboard, 7x24 continuous operation.
5. Front 5MP camera, speaker and Mic built-in

6. Rich interface: 1*COM, 1*LAN, 2*USB, 2*Relay



Configuration

Processor System CPU Intel Quad-core J1900/2.0GHz
Memory 4GB-8GB
Storage 64G SSD(up to 1TB)
Operation System Windows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 10’’ Lcd Panel
Touchscreen Type Capacitive touch screen / Resistive touch option
Resolution 1280(H)x800(V)
Aspect Ratio 16:9
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 1*RS232(RS485/RS422 optional)
USB 2xUSB2.0
LAN 1xRJ45, 10/100/1000 Mbps
HDMI -----
VGA -----
Function Webcam
Relay
Mic and speaker
Optional RFID/ NFC card reader
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Metal frame
Color Black/Silver/White
Mounting VESA mount / Embedded
Certificates CE/ RoHS / FCC

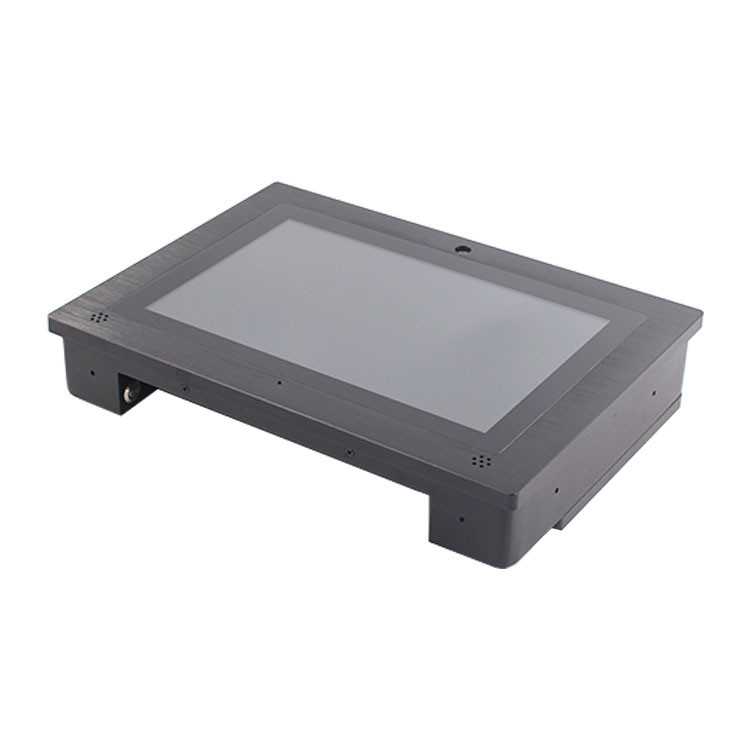

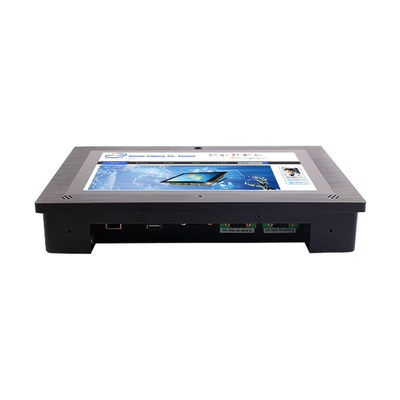

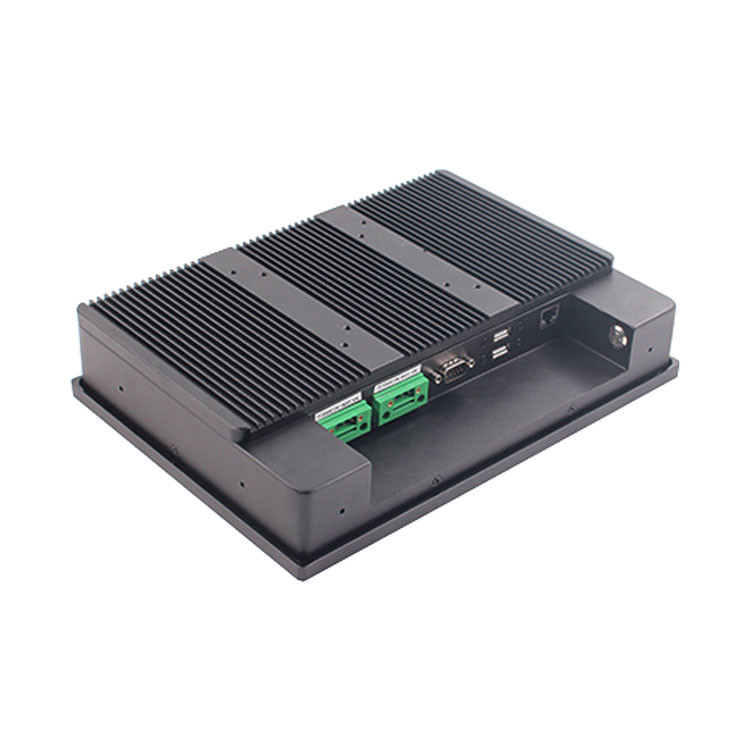

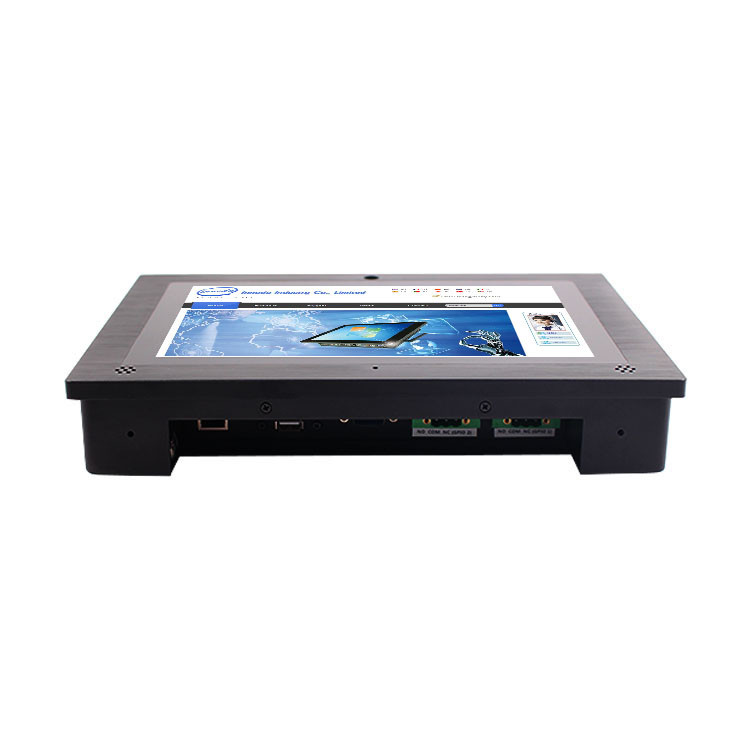

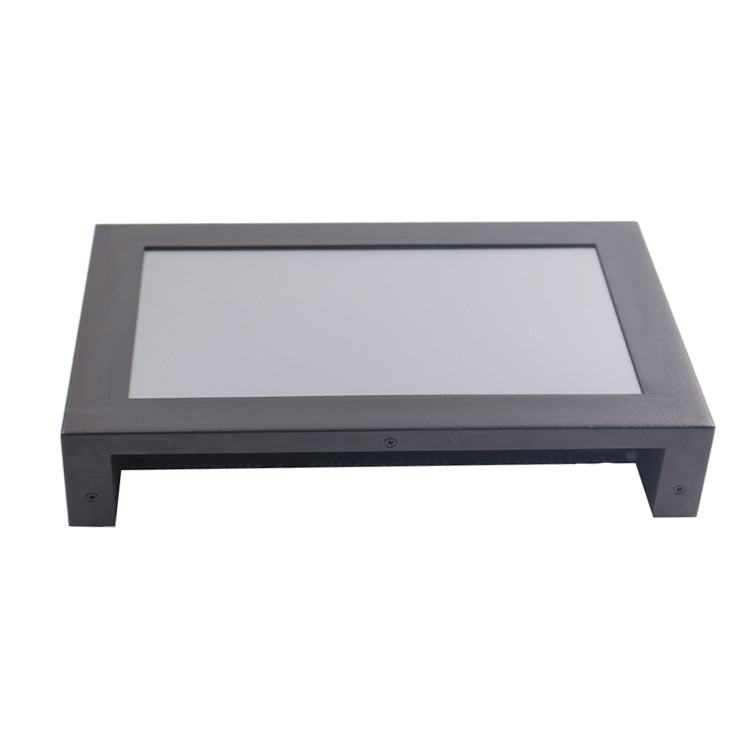

Detailed Image
5MP Webcam 10" Capacitive Rugged Panel Pc Dual Relay Industrial AIO 05MP Webcam 10" Capacitive Rugged Panel Pc Dual Relay Industrial AIO 1

Customization service
1) CPU Intel Celeron 1037, J1900, Core i3 i5 i7 optional
2) 10.4" 15" 17" 19" LCD panel
3) IR touch, Resistive touch optional
4) Memory 2G 4G 8G
5) Hard disk 32G 64G 128GB, 256GB SSD, HDD 500GB,1TB



Our Advantage
1. Experience

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least

13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,

sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc

5. No MOQ limited

We can provide sample first to test it for the big project.

5MP Webcam 10" Capacitive Rugged Panel Pc Dual Relay Industrial AIO 2


  INNODA have 10years rich experience in Industrial Computer/monitor field. Our eingineers all have at least 13years experience.
the 10'' rugged touch panel pc which have excellent work performane.It offers rich of interface to meet csutomers needs.



We can tailor goods as you want,welcome to contact us to get more information.
