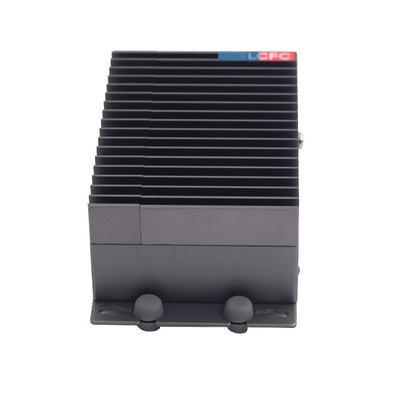

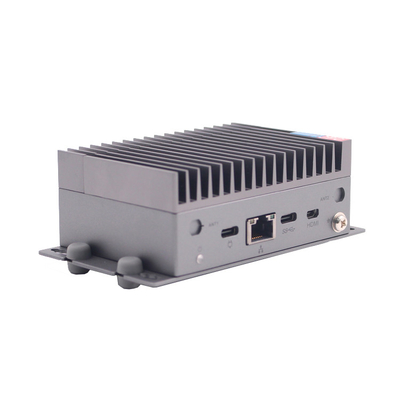

NVIDIA Jetson NANO Edge AI Computing Smart Box 128 CUDA Cores GPU
Edge AI Computing Features
1. NVIDIA Jetson Nano processor
2. NVIDIA Maxwell GPU with 128 CUDA Cores
3. -20℃ - 60 ℃ working temperature
Edge AI Computing Configuration
Processor | NVIDIA Jetson Nano | ||
AI Performance | 472 GFLOPS | ||
CPU | Quad-core ARM Cortex-A57 MPCore | ||
GPU | NVIDIA Maxwell GPU with 128 CUDA Gores | ||
Memory | 4GB 64-bit LPDDR4 | ||
Storage | 16GB eMMC 5.1 | ||
Video Encode | 1x4K @ 30 (HEVC) | ||
2x1080P @ 60(HEVC) | 4x1080P @ 30 (HEVC) | ||
Video Decode | 1x4K @60 (HEVC) | 2x4K @ 30 (HEVC) | |
4x1080P @ 60(HEVC) | 8x1080P @ 30 (HEVC) | ||
I/O Configuration | 1*Gigabit Ethernet | 1*Micro HDMI | 1*Micro SD slot |
1*USB2.0 OTG | 1*USB3.0(Type-c P2) | 1*WIFI module support | |
Function Key | 1*power button | 1*Recovery button | |
Dimension | 122x 65.5x43mm(I/O ports and mounting holes excluded) | ||
Environmet | Operating Temperature | -20℃ - 60℃ | |
Storage Temperature | -40℃ - 80℃ | ||
Humidity | 5-90% @ 40℃, non-condensing | ||
Protection | IP50 | ||
Certificates | CCC / ROSH / SRRC |
Edge AI Computing Application
Smart medical diagnosis terminal equipment
educational robot
Unmanned Aerial Vehicle/Drones
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
