Home /Products/AI Edge Computer/Aluminum Embedded AI Edge Computer RS232 PCIE For Entry Level

Aluminum Embedded AI Edge Computer RS232 PCIE For Entry Level

1piece
MOQ
Negotiable
Price

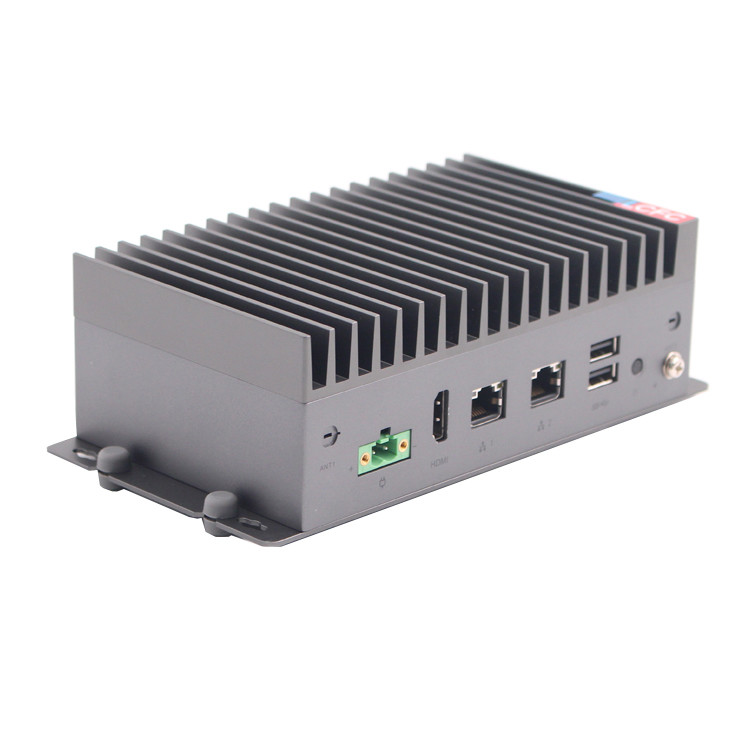

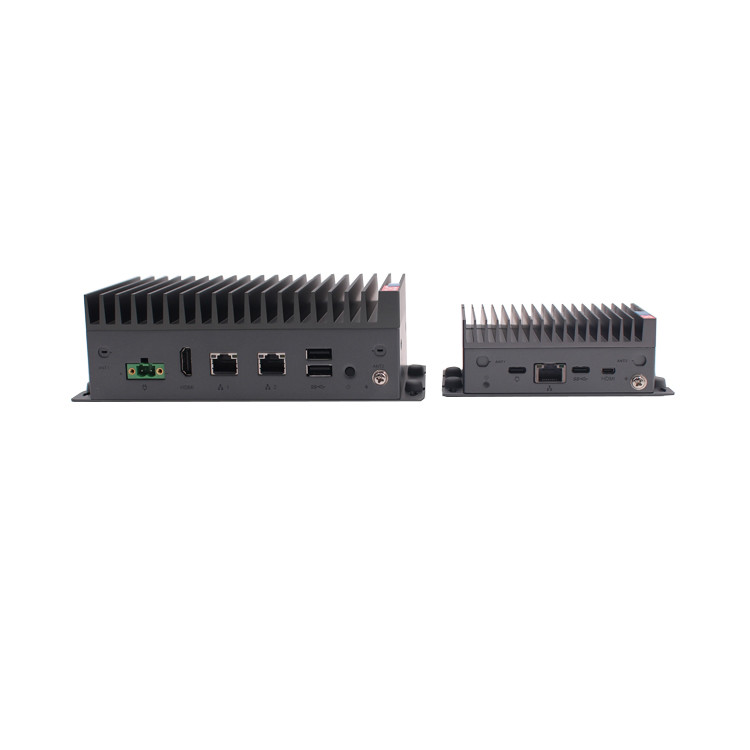

Aluminum Embedded AI Edge Computer RS232 PCIE For Entry Level
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Edge AI Computing
Processor: NVIDIA Jetson TX2 NX
GPU: NVIDIA Pascal Arcitecuure With 256 NIVIDA CUDA Cores
Memory: 4GB 128-bit LPDDR4x@ 51.2GB/s
Stroage: 16GB EMMC 5.1
WIFI: Yes
Material: Aluminum
Name: Embedded Edge Computer
Highlight:

Aluminum Embedded AI Edge Computer

,

RS232 AI Edge Computer

,

PCIE Embedded Edge Computer
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: INNODAPC
Certification: RoHS, CCC,SRRC
Model Number: IND-EA-B200
Payment & Shipping Terms
Packaging Details: 1pc/carton weight: 6.5kgs/pc, packing size: 32×21×10.5cm
Delivery Time: 7working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 8000 pieces per month
Product Description

NVIDIA Jetson™TX2 NX Embedded Edge Computing Products For Entry-Level AI Performance




Edge AI Computing Features
--- Equipped with NVIDIA Jetson TX2 NX core module



--- 25℃~80℃ Operating Temperature



--- Long Lifetime




Edge AI Computing Configuration



Processor NVIDIA Jetson TX2 NX
AI Performance 1.33TFLOPS
CPU Quad-core NVIDIA Denver 1.5 64-bit CPU and
quad-core Arm Cortex-A57 MPCore processor complex
GPU NVIDIA Pascal arcitecuure with 256 NIVIDA CUDA Cores
Memory 4GB 128-bit LPDDR4x@ 51.2GB/s
Storage 16GB eMMC 5.1
Display Interface HDMI Type A x 1
Video Encode 1x4K @ 60 (HEVC) 3x4K @ 30 (HEVC)
4x1080P @ 60(HEVC) 8x1080P @ 30 (HEVC)
Video Decode 2x4K @60 (HEVC) 7x1080P @ 60 (HEVC)
4x4K @ 30 (HEVC) 14x1080P @ 30 (HEVC)
I/O Configuration 2*Gigabit Ethernet 1*CAN 1*RS232/422/485
4*GPIO 2*MIPI(CSI) 2*USB3.0
1*HDMI 30-pin I/O x1(GPIO/I2C/SPI/UART)
User Expansion Pick One Of Two: 1, MINI-PEIe*1 2,M.2 E-key 2230 x 1 for wifi
M.2 M key 2280 NVM (PCIE)
M.2 B-KEY for LTE/5G
　 Nano SIM Socket*1 TF Slot*1
Function Key 1*power button 1*Recovery button
Power Requirement 12-24V DC w/2-pin terminal
Dimension 189x 96.7x57.5mm
Net Weight 1.1KG
Protection IP50
Environmet Operating Temperature -25℃ - 60℃ CPU/GPU full loaded operation
60°-80° frequency Reduction operation
Storage Temperature -40℃ - 80℃
Humidity 5-95% @ 40℃, non-condensing
Operation Vibration 3 Grms 5-500Hz
Certificates CCC / ROSH / SRRC


Edge AI Computing Application

Smart medical diagnosis terminal equipment

educational robot

Unmanned Aerial Vehicle/Drones

transportation

logistics and other industries, replacing labor with machine vision technology can improve production efficiency and product quality




Tag:

128 CUDA AI Edge Computer

EMMC 5.1 AI Edge Computer

SRRC Edge AI Box
