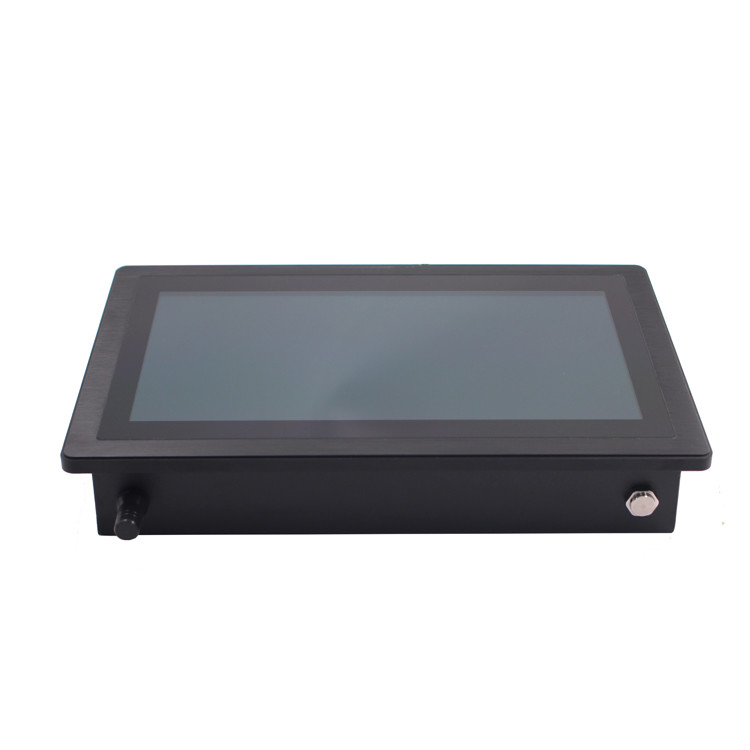

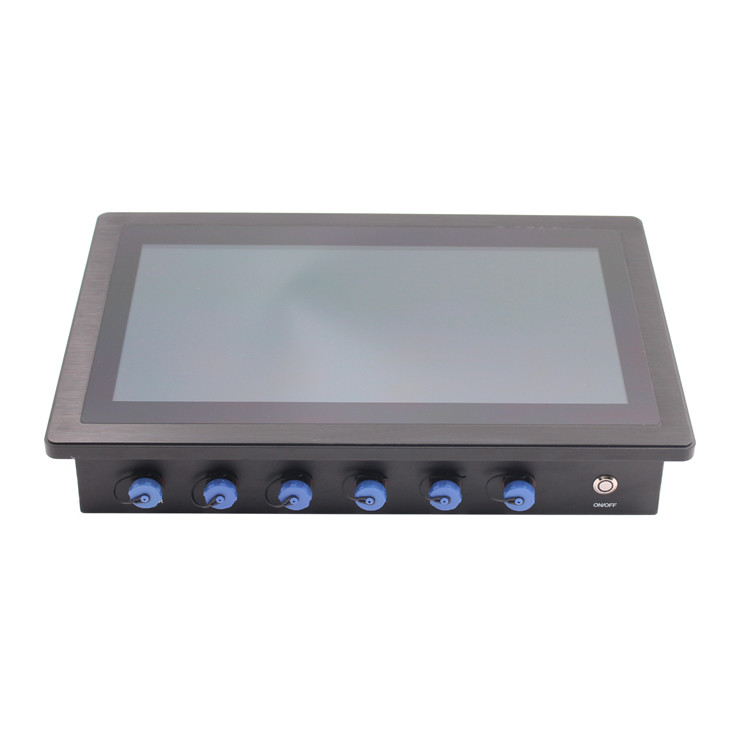

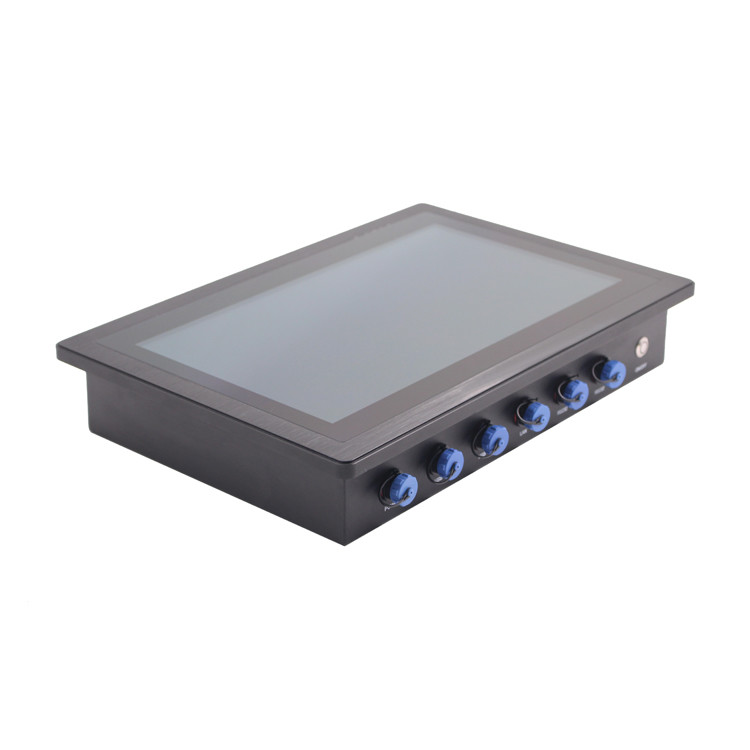

Waterproof Touch Screen Aluminum DC24V IP65 Panel Pc For Foxlift
Features of waterproof touch screen
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole PC is dustproof.
2. Seamless design, front panel IP65 waterproof.
3. Industrial LCD panel, wide viewing angle, high nits, true color.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
Configuration of waterproof touch screen
| Processor System | CPU | Intel Quad Core J4105/1.5 GHz | I/O Port | COM | 1 x RS232(Up to 4COM) | ||||||
| Memory | 2GB (up to 8G) | USB | 2 x USB2.0(up to 4USB) | ||||||||
| Storage | 32G SSD(up to 1TB) | LAN | 1/2 x RJ45, 10/100/1000 Mbps | ||||||||
| Operation System | WIndows 7/8/10 OS(trial version) | Function | IP65 waterproof | ||||||||
| LCD Panel Characteristics | Screen Size | 13.3'’ LED Panel,16:9 (7-22'' option) | Waterproof WIFI antenna(optional) | ||||||||
| Touchscreen Type | Capacitive touch screen/Resistive | Optional | 8-36V wide voltage | ||||||||
| Resolution | 1920(H)x 1080(V) | PoE | |||||||||
| Brightness | 300cd/m2 | WIFI / Bluetooth is built-in | |||||||||
| Other Information | Power supply | 110V-220V, 12V DC Input | Camera / RFID / NFC / Scanner built-in | ||||||||
| Working Temperature | 0-50℃ | Enclosure | Metal/Aluminum/Stainless Steel (optional) | ||||||||
| Mounting | 75*75/100*100mm VESA | Cooling system | Fanless | ||||||||
Customization service of waterproof touch screen
1. PCAP touchscreen / Resistive touch / IR touch
2. Modern design avaliable
Innoda have own designer, which can make unique machine just for you
3. Material of the goods
Aluminum / Metal / Stainless Steel / ABS
Application of waterproof industrial panel pc
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
